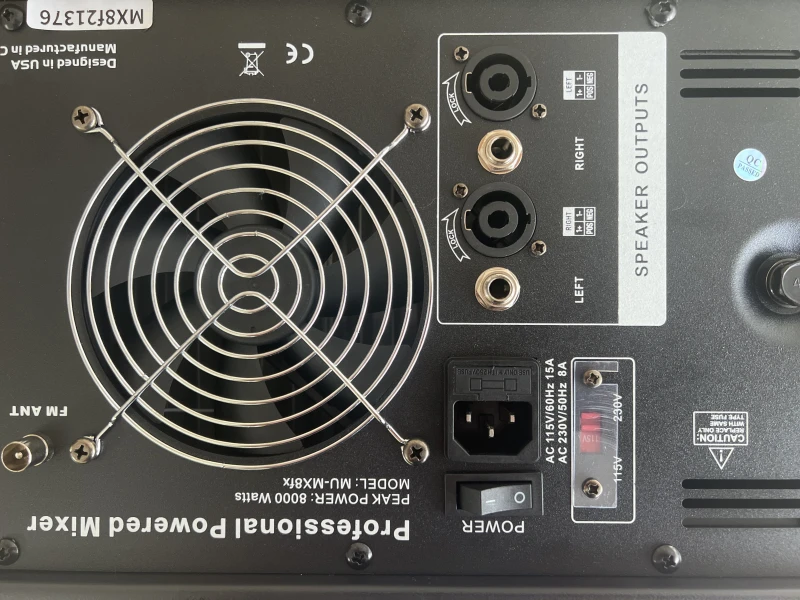

To change the fuse in a LEM MX8PFX, locate the main fuse holder on the rear panel. If the fuse is broken, replace it with one of the same type and rating.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for LEM MX8PFX

  • Page 1 CODE: 277.374...
  • Page 2: Important Safety Instructions

    The lighting flash with arrowshad symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltages” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric schok to persons. The exclamation point within an equilater triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the...
  • Page 3: Table Of Contents

    Indice Indice Avvertenze e installazione ......2 Presentazione ........3 Canale di ingresso MONO .
  • Page 4: Avvertenze E Installazione

    ✔ ✔ ✔ ✔ ✔ In caso di avaria Tutte le regolazioni sono esterne ed accessibili alla vostra portata. In caso di avaria non aprite l’apparato, ma rivolgetevi al più vicino Centro di Assistenza Generalmusic/Lem. ✔ ✔ ✔ ✔ ✔ Conservazione della documentazione Conservate questo manuale d’uso per eventuali future consultazioni.
  • Page 5: Presentazione

    Presentazione Presentazione Congratulazioni per l’acquisto di MX8P FX! MIX OUT AUX OUT L/MONO HEADPHONES RETURN LINE LINE LINE LINE GAIN GAIN GAIN GAIN POWER PHANTOM +48V -5dB -55dB -5dB -55dB -5dB -55dB -5dB -55dB TAPE OUT LEFT LEFT HIGH HIGH HIGH HIGH L/ROOM...
  • Page 6: Canale Di Ingresso Mono

    Canale di ingresso MONO Canale di ingresso MONO MIC INPUT Connettore XLR bilanciato: riceve il segnale microfonico in ingresso. Questo ingresso, riservato all'utilizzo di microfoni, può ricevere una vasta gamma di segnali bilanciati o sbilanciati a bassa impedenza. Non collegate a questo ingresso tastiere, registratori od altre apparecchiature con segnale di linea, poiché...
  • Page 7 Canale di ingresso MONO allora ruotatelo verso sinistra (-15). DSP / AUX Controllo di livello della mandata DSP / AUX. Invia il segnale contemporaneamente al DSP interno e all’uscita AUX OUT, consentendo, eventualmente, anche l’utilizzo di un effetto esterno La mandata DSP / AUX è posizionata POST–FADER e, quindi, preleva il segnale dopo il controllo di livello del canale.
  • Page 8: Canale Di Ingresso Stereo

    Canale di ingresso STEREO Canale di ingresso STEREO STEREO INPUT Connettori RCA: ricevono il segnale STEREO di linea in ingresso. A seconda della posizione del SELETTORE DI INGRESSO, è possibile collegare segnali di linea provenienti da apparecchiature con uscita ad LEFT alto livello (LINE) oppure segnali con equalizzazione RIIA provenienti da giradischi (PHONO).
  • Page 9: Sezione Master

    Sezione MASTER Sezione MASTER AUX OUT MIX OUT AUX OUT Connettori JACK sbilanciati: questi connettori inviano verso l’esterno la somma dei segnali provenienti dalle corrispondenti mandate DSP / AUX dei canali di ingresso. La mandata L/MONO HEADPHONES RETURN DSP / AUX è POST–FADER e, quindi, prevista principalmente per l’utilizzo di effetti.
  • Page 10 Sezione MASTER PHONES OUT Connettore JACK STEREO per l’uscita di cuffia: collegate a questa uscita solo cuffie stereo con impedenza minima di 220 Ohms. E, possibile collegare questa uscita anche all’ingresso di un amplificatore per l’ascolto in monitor. PHONES LEVEL Controllo di livello dell’uscita di cuffia.
  • Page 11: Dsp

    Il mixer MX8P FX è equipaggiato con DSP interno che dispone di 15 effetti di RIVERBERO e STEREO L/ROOM S/ROOM M/HALL DELAY di ottima qualità, in grado di riprodurre con grande fedeltà diversi tipi di ambiente e di arricchire non L/HALL PLATE solo la voce, ma qualunque tipo di strumento.
  • Page 12: Pannello Posteriore

    Pannello posteriore Pannello posteriore Interruttore di accensione/spegnimento del mixer. Presa per il cavo di alimentazione. Alloggiamento fusibile principale In caso di rottura del fusibile, sostituitelo sempre con uno dello stesso tipo e dello stesso valore. +48V Tasto di alimentazione phantom +48 Volt: fornisce un’alimentazione di +48 Volt a tutti gli ingressi MIC (connettore XLR- F) dei canali di ingresso MONO per consentire l’utilizzo di microfoni a condensatore.
  • Page 13: Cavi Di Collegamento

    Cavi di collegamento Cavi di collegamento Di seguito sono riportati gli schemi di connessione relativi ai connettori utilizzabili con MX8P FX. Abbiate cura dei cavi di collegamento, afferrandoli sempre per i connettori, evitando di tirarli lungo il cordone ed avvolgendoli senza nodi o forti torsioni: ne allungherete la vita e l’affidabilità, a vostro assoluto vantaggio.
  • Page 14: Esempi Di Collegamento

    Esempi di collegamento Esempi di collegamento LIVE SET MAIN P.A. from L&R POWER OUTPUTS MIX OUT AUX OUT AMPLIFIED MONITOR L/MONO HEADPHONES RETURN from AUX OUT LINE LINE LINE LINE GAIN GAIN GAIN GAIN PHANTOM POWER +48V -5dB -55dB -5dB -55dB -5dB -55dB...
  • Page 15 Esempi di collegamento HOME SET MONITORING SYSTEM from L&R POWER OUTPUTS HEADPHONES MIX OUT AUX OUT L/MONO HEADPHONES RETURN LINE LINE LINE LINE GAIN GAIN GAIN GAIN POWER PHANTOM +48V -5dB -55dB -5dB -55dB -5dB -55dB -5dB -55dB TAPE OUT LEFT LEFT L/ROOM...
  • Page 16: Specifiche Tecniche

    Specifiche tecniche Specifiche tecniche SEZIONE LIVELLI & DATI CONNETTORI CANALE DI INGRESSO MONO sensibilità Ingresso MIC da -5 a -55dB XLR-F bilanciato sensibilità Ingresso LINE -20dB JACK bilanciato toni ALTI ±15dB, da 1kHz a 12kHz SHELVING Equalizzatore toni MEDI ±15dB, a 2.5kHz PEAKING toni BASSI ±15dB, a 80Hz, SHELVING CANALE DI INGRESSO STEREO...
  • Page 17 Contents Contents Instructions and installation ......2 Introduction ......... 3 MONO input channel .
  • Page 18: Instructions And Installation

    All user-adjustable parts are external and easily accessible. Never open the amplifier: you could run the risk of serious electric shocks. In the event of breakdown, contact the nearest GENERALMUSIC/LEM Assistance Centre ✔ ✔ ✔ ✔ ✔ Conservation of documents and packing.
  • Page 19: Introduction

    Introduction Introduction Congratulations for having chosen MX8P FX! MIX OUT AUX OUT L/MONO HEADPHONES RETURN LINE LINE LINE LINE GAIN GAIN GAIN GAIN POWER PHANTOM +48V -5dB -55dB -5dB -55dB -5dB -55dB -5dB -55dB TAPE OUT LEFT LEFT HIGH HIGH HIGH HIGH L/ROOM...
  • Page 20: Mono Input Channel

    MONO input channel MONO input channel MIC INPUT Balanced XLR connector: receives the microphone input signal on the channel. This input is for use with microphones, but can also accept a wide range of balanced or unbalanced low impedance signals. Do not connect keyboards, recorders or other equipment with a line signal, as the signal level would be too high and probably distorted.
  • Page 21 MONO input channel DSP / AUX Control for the DSP / AUX send level. Sends the signal both to the internal DSP and to the AUX output, allowing also the use of an external effect (if needed). The DSP / AUX send is POST-FADER: this means than the signal is taken after the control of the channel FADER and therefore its level is effected by the fader’s setting.
  • Page 22: Stereo Input Channel

    STEREO input channel STEREO input channel STEREO INPUT RCA connector: receives the STEREO LINE input signal on the channel. According to the position of the LINE/PHONO SELECTOR, this inputs LEFT can accept line signal coming from high-level output devices (LINE) or signals with RIIA EQ coming from turntables (PHONO).
  • Page 23: Master Section

    MASTER section MASTER section AUX OUT MIX OUT AUX OUT Unbalanced JACK connectors: these connectors feed out the sum of the signals arriving from the relative DSP / AUX sends of the input channels. The DSP / AUX send is L/MONO HEADPHONES RETURN...
  • Page 24 MASTER section impedance of 220 Ohms should be connected to this output. It is possible to connect this output also to an external amplifier for monitoring. PHONES LEVEL Pot for controlling the level of headphone output. TAPE OUT L&R Two RCA connectors: send out the signal taken from MIX and normally intended for STEREO recording. These outputs can be connected to the inputs of a recorder.
  • Page 25: Dsp

    The MX8P FX is fitted with a built-in DSP, including 15 high-quality REVERB and STEREO DELAY effects L/ROOM S/ROOM M/HALL able to reproduce accurately different kinds of ambients and to enrich not only the voice, but also any kind of L/HALL PLATE instrument.
  • Page 26: Rear Panel

    Rear panel Rear panel Mixer on/off switch. Power supply socket. Main fuse holder In the event of breaking, always replace the fuse with same type and rating. +48V +48V Phantom power supply button: this button switches on the +48V power supply for all the MIC inputs (XLR-F connector) of the MONO input channels and allows condenser microphones to be used on them.
  • Page 27: Connection Cables

    Connection cables Connection cables The following are wiring diagrams for the connectors used with MX8P FX. Take care of the connector cables, always holding them by the connectors and avoiding pulling the wire and avoid knots and twists when coiling them: this gives the advantage of increasing their life and reliability, which is always to your advantage.
  • Page 28: Connection Examples

    Connection examples Connection examples LIVE SET MAIN P.A. from L&R POWER OUTPUTS MIX OUT AUX OUT AMPLIFIED MONITOR L/MONO HEADPHONES RETURN from AUX OUT LINE LINE LINE LINE GAIN GAIN GAIN GAIN PHANTOM POWER +48V -5dB -55dB -5dB -55dB -5dB -55dB -5dB -55dB...
  • Page 29 Connection examples HOME SET MONITORING SYSTEM from L&R POWER OUTPUTS HEADPHONES MIX OUT AUX OUT L/MONO HEADPHONES RETURN LINE LINE LINE LINE GAIN GAIN GAIN GAIN POWER PHANTOM +48V -5dB -55dB -5dB -55dB -5dB -55dB -5dB -55dB TAPE OUT LEFT LEFT L/ROOM HIGH...
  • Page 30: Technical Specifications

    Technical specifications Technical specifications SECTION LEVELS & DATA CONNECTORS MONO INPUT CHANNEL sensitivity MIC input from -5 to -55dB XLR-F balanced sensitivity LINE inout -20dB JACK balanced HIGH ±15dB, @ 1kHz a 12kHz SHELVING ±15dB @ 2.5kHz PEAKING ±15dB @ 80Hz, SHELVING STEREO INPUT CHANNEL sensitivity STEREO LINE input channel...
  • Page 31 FEDERAL COMMUNICATIONS COMMISSION NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
