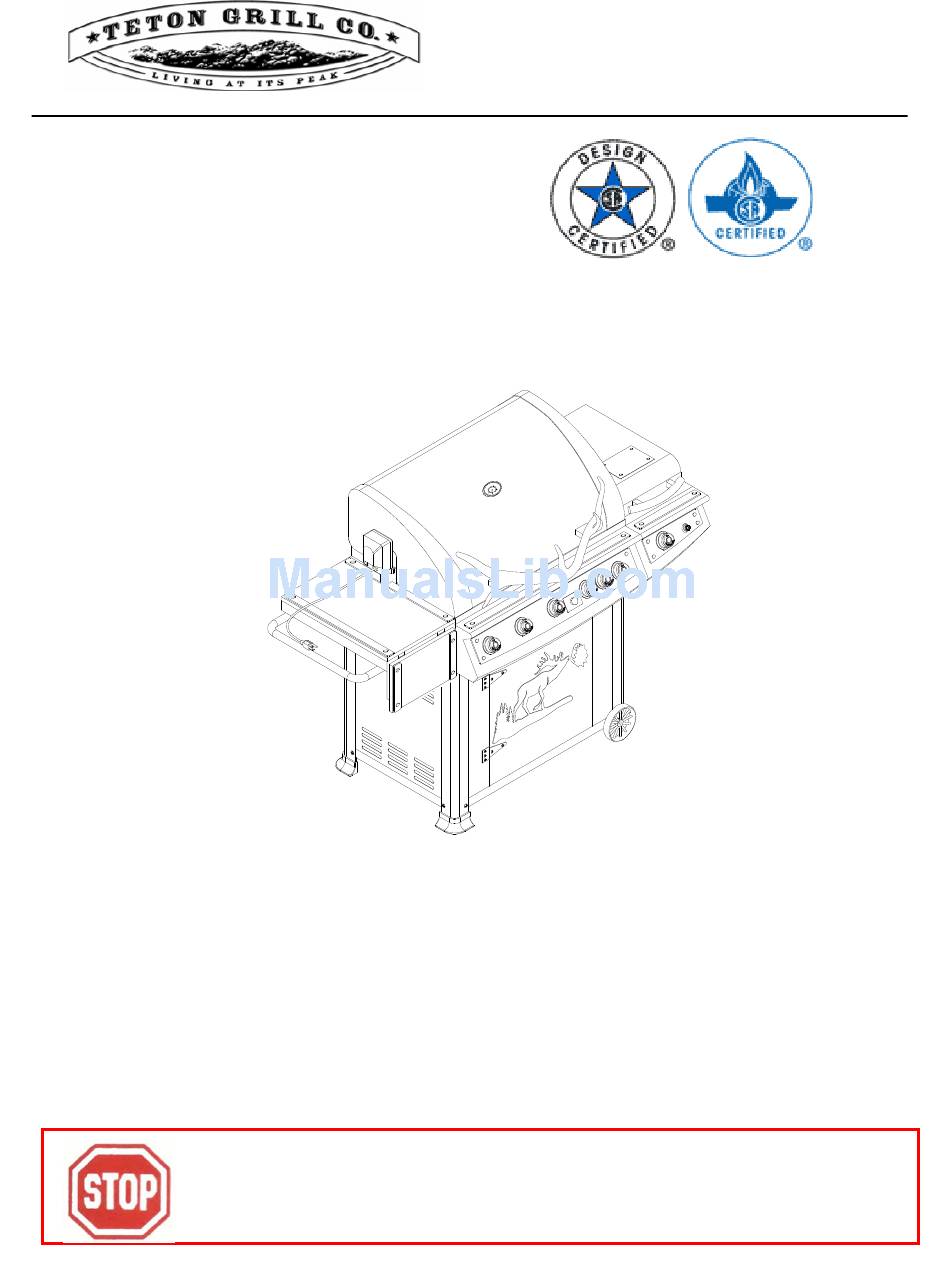

Stainless Steel Gas Grill
USE AND CARE GUIDE
MODEL NO.: 720-0430
Consumer: Retain this manual for future reference.
Installer: Leave this manual with consumer
PLEASE CONTACT 1-800-913-8999 FOR ASSISTANCE
ABOUT ASSEMBLY OR GRILL OPERATION
DO NOT RETURN TO THE PLACE OF PURCHASE
FOR OUTDOOR USE ONLY
400 500
600
300
700
800
200
100
D20Y07P_1
