To disable GAME BOOST:
1. Set the GAME BOOST knob to HW mode in BIOS Setup.
2. Power off the computer.
3. Rotate the GAME BOOST knob to 0 and then power on. The configuration
parameters will be returned to its default values.
Important
You can also control the GAME BOOST function in BIOS Setup or with MSI
y
COMMAND CENTER software.
In order to optimize performance and improve system stability, when you activate
y
the GAME BOOST function, please leave the settings in the BIOS > OC menu
unchanged.
The success of overclocking depends on the components of your computer.
y
We do not guarantee the GAME BOOST overclocking range or the damages/ risks
y
caused by overclocking behavior.
MSI components are recommended for better compatibility when using GAME
y
BOOST function.
The red button of GAME BOOST knob is no function.
y

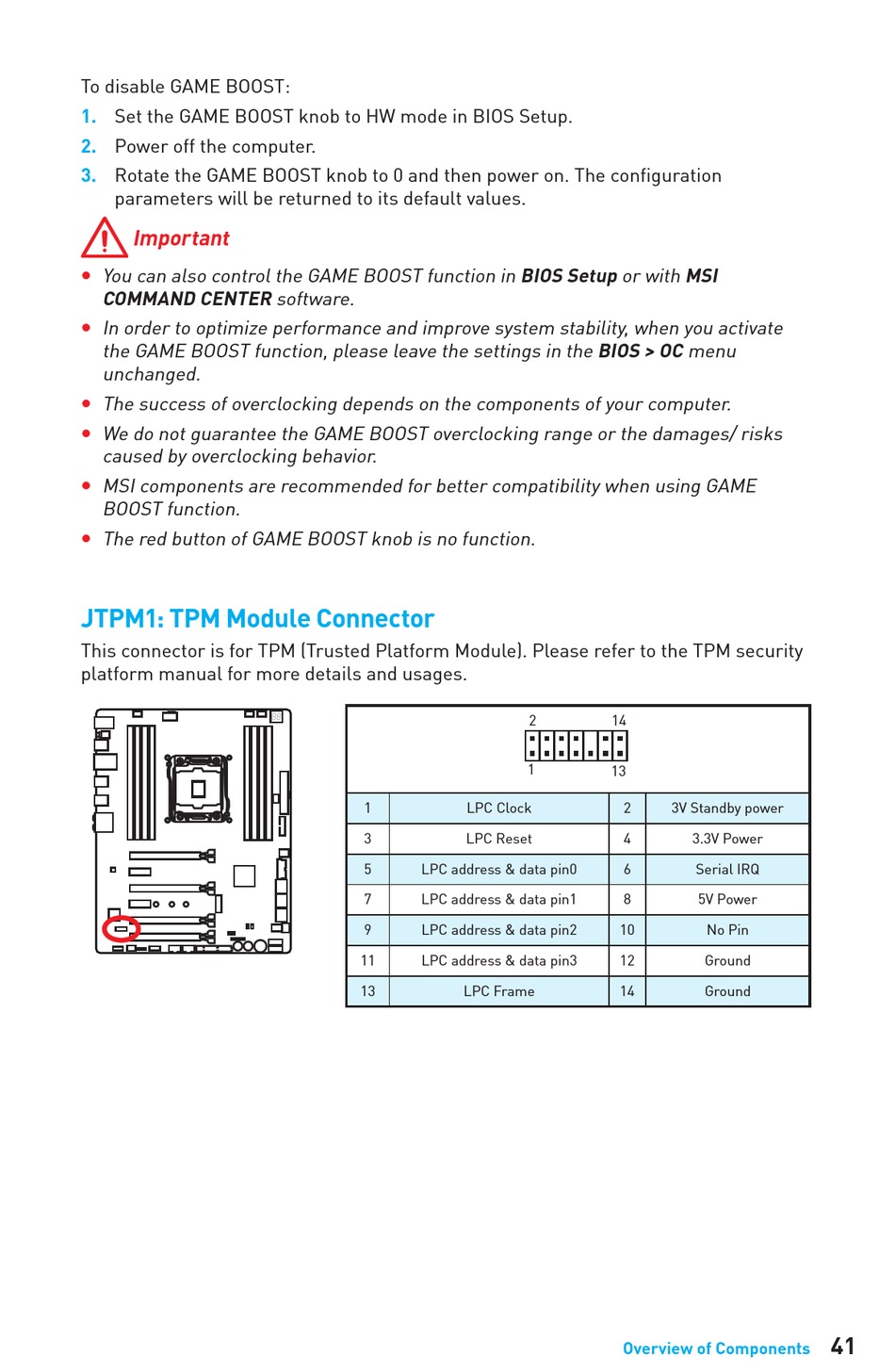

JTPM1: TPM Module Connector

This connector is for TPM (Trusted Platform Module). Please refer to the TPM security
platform manual for more details and usages.
1
1 LPC Clock
3 LPC Reset
5 LPC address & data pin0
7 LPC address & data pin1
9 LPC address & data pin2
11 LPC address & data pin3
13 LPC Frame
2 14
13
2 3V Standby power
4 3.3V Power
6 Serial IRQ
8
10
12
14
Overview of Components
5V Power
No Pin
Ground
Ground
41
