ENFORCER EV-N4206-2S4Q Manual

Ip corner mount camera

Download this manual

Features:

" 2.43M Sony CMOS

•

2.9

• H.264/MJPEG, Dual Stream IP Camera

• Max. 30FPS/Full HD (1920x1080)

• Remote access via web browser

• Network Bandwidth Control

• Event Alarm, E-mail, FTP Function

• ONVIF Profile S

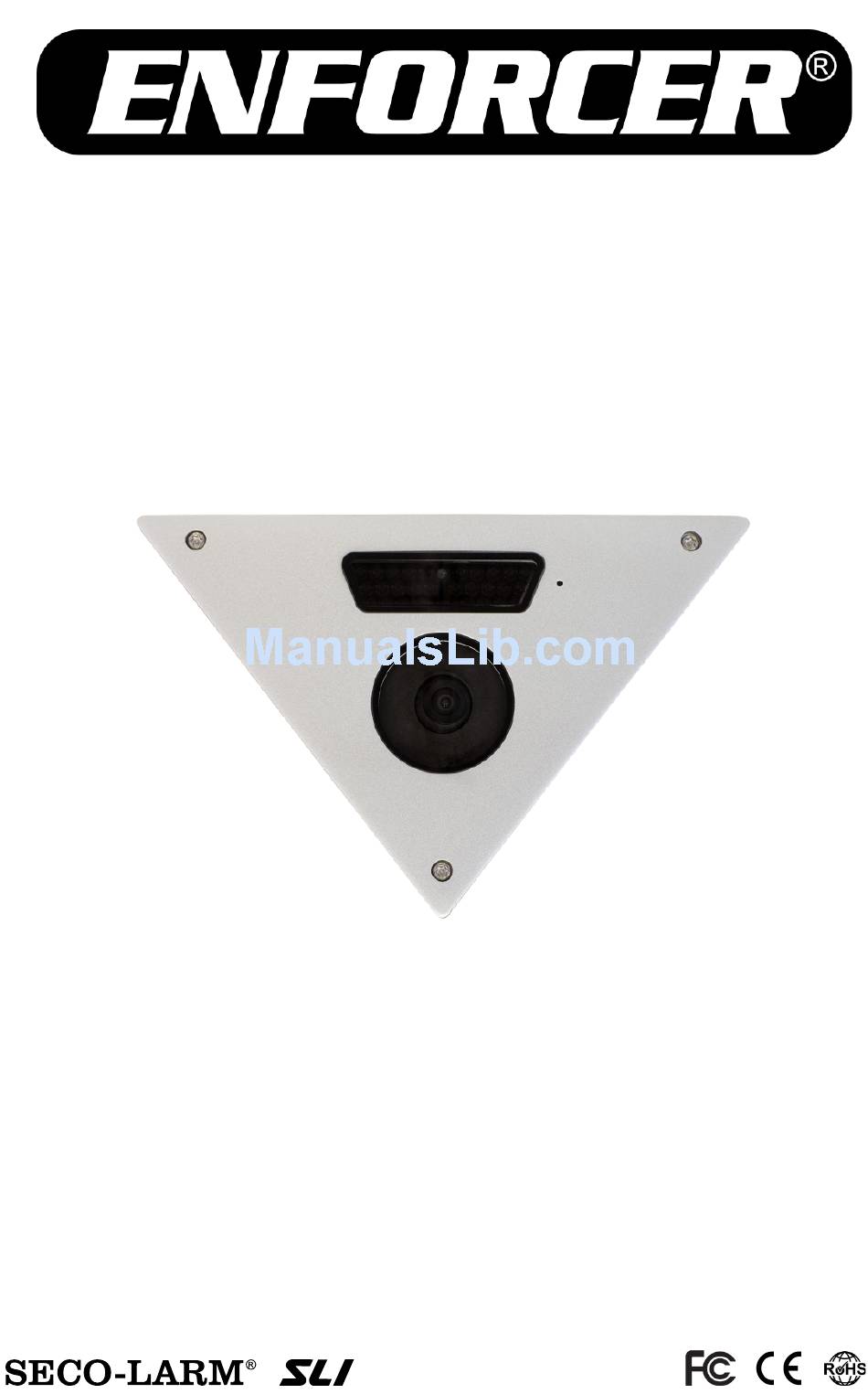

EV-N4206-2S4Q

IP Corner Mount Camera

Manual

• 30 Covert IR LEDs for discreet monitoring

in the dark

• True Day & Night function with

ICR mechanism

• Vandal-resistant metal front panel

• 1-Way audio (optional)

• 12VDC, PoE (IEEE802.3af)

Need help?

Do you have a question about the EV-N4206-2S4Q and is the answer not in the manual?

Page 1 EV-N4206-2S4Q IP Corner Mount Camera Manual Features: ” 2.43M Sony CMOS • 30 Covert IR LEDs for discreet monitoring • in the dark • H.264/MJPEG, Dual Stream IP Camera • True Day & Night function with • Max. 30FPS/Full HD (1920x1080) ICR mechanism •...
Page 2: Specifications
ENFORCER IP Corner-Mount Camera Specifications: Model EV-N4206-2S4Q Type Corner-Mount Camera ” 2.43M Sony CMOS Video encoding H.264, MJPEG Resolution 1920x1080, 1280x720, 1024, 640x480, 320x240, 160x120 2D-NR 3D-NR DWDR Scanning system Progressive 1080p # of IR LEDs 30 (940nm) Lens 2.9mm Viewing angle 135°...
Page 3 ENFORCER IP Corner-Mount Camera Overview: DC jack Pigtail connector RJ45 jack Mounting screws Security screws Camera cover Important: Do not cut DC jack or BNC connector as warranty will be voided. Before Starting: 1. Please read this manual carefully and keep it for 4.
Page 4: Troubleshooting
ENFORCER IP Corner-Mount Camera Troubleshooting: • Check that the camera is powered up. • Check that the power supply’s polarity is correct. The screen is blank. • Check that the monitor is powered up. • Check that the video cable connecting the camera to the monitor is connected properly.
