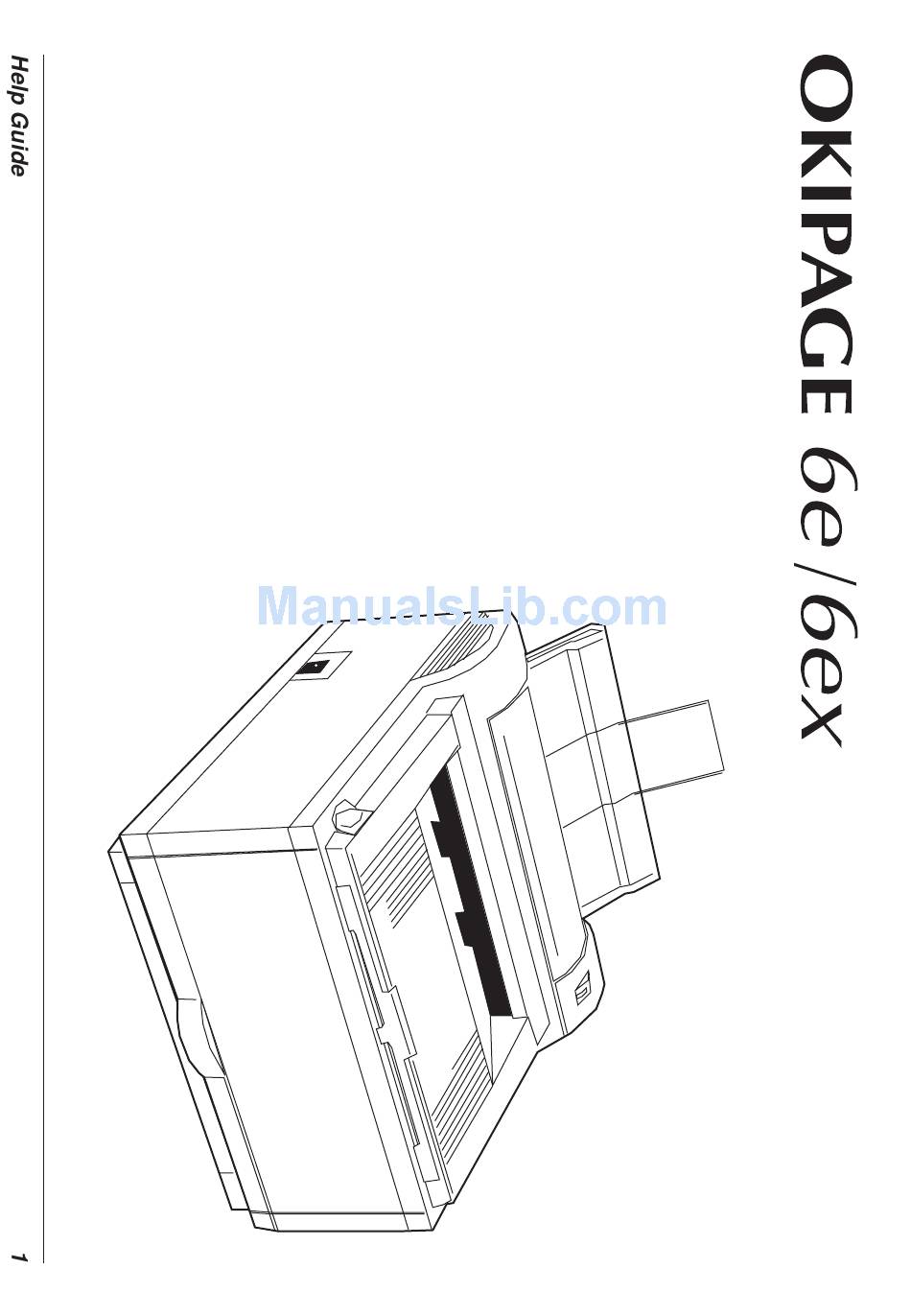

- Page 1 English...
- Page 2 Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. Oki assumes no responsibility for the results of errors beyond its control. Oki also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it.
-
Page 3: Safety Instructions
Safety Instructions Your Oki printer has been carefully designed to give you years of safe, reliable performance. As with all electrical equipment, however, there are a few basic precautions you should take to avoid hurting yourself or damaging the printer: •... - Page 4 These are some of the things to look for: • The power cable or plug is frayed or damaged. • Liquid has been spilled into the printer, or it has been exposed to water. • The printer has been dropped, or the cabinet is damaged.
-
Page 5: Table Of Contents
When to Replace the Image Drum Cartridge ... 30 LCD Window Display Messages for OKIPAGE 6ex ... 31 Printer Status Messages ... 31 Error Code Table ... 35 Oki Systems Company ... 36 Index ... 37 User Notes ... 39... -
Page 7: Clearing Paper Jams
Paper Input Jam Push the tab on the paper tray then slide the paper tray out of the printer. Remove the sheet that did not feed. Check the remaining sheets to make sure they are not wrinkled or stuck together. -
Page 8: Paper Exit Jam (Rear Jam)
Paper Exit Jam (rear jam) Lift the top cover. Pull the jammed paper out from within the printer. Be careful, pulling quickly may damage the printer. Remove the image drum to make sure that the paper is cleared and no pieces are left. Replace the image drum and close the... -
Page 9: Print Quality Problems
Print Quality Problems Before consulting a service representative regarding a print quality problem, check the table below to see if there is a solution, or something you might have overlooked. Symptom Problem Blank sheets printed. Image drum cartridge not properly installed. Empty or missing toner cartridge. - Page 10 Symptom Problem Page prints all black. Hardware problem. Page has repetitive marks. Damaged image drum cartridge causes repetitive marks every 1.6 inches (4.06 cm) due to surface nicks and scratches. Oblong area of faint print appears Dropout caused by using paper exposed to high on each page.
- Page 11 Paper path, lamp assembly, or fusing unit problem. Faded print. Toner cartridge is not correctly installed. Smeared or blotched print. Dirty rollers; toner dropped inside printer or image drum problem. Printed page is light/blurred. Is toner low? Is paper meant for laser printers? LED array is dirty.
- Page 12 Symptom Problem Pages curl excessively. Printing on wrong side of paper. Moisture in paper, Improper storage. High humidity. Solution Turn paper over in tray. (Note arrow on paper package). Install paper print side down in tray. Avoid storing paper in areas of excessive temperature and humidity.
-
Page 13: Software Problems
Software Problems Your software (operating environment, applications and printer drivers) controls the printing process. Make sure you have selected the right driver for use with your printer. See your software documentation for more information. Symptom Problem Printing is “garbled”. Incorrect driver is installed. -
Page 14: Hardware Problems
“Garbage” prints. Incorrect cable configuration. (Also, see “Software Problems.”) Printer freezes or displays error Booting the computer while the printer is on can message when computer is cause a communications error. rebooted. Odours. Gases are given off by forms or adhesives passing through the hot fusing unit. -
Page 15: Generating A Cleaning Page
Pull the manual tray down to a horizontal position and insert a clean sheet of A4 paper. The paper will be pulled automatically into the printer and PRINT CLEANING will be displayed in the message window. When complete the printer will return to the off-line mode. -
Page 16: Cleaning The Led Array
Cleaning the LED Array Clean the LED array • Whenever you install a new toner cartridge. • If you see faded vertical areas or light printing down a page. Wipe the LED array gently with the cleaning pad that came with your toner cartridge. -
Page 17: What Is A Font
Selecting Fonts in Your Software The easiest way to select fonts is through your software program. Your software can send a printer command that consists of a set of codes, one for each of the font characteristics. If your software has the appropriate driver, you can specify the font you want, and it will send the necessary commands to the printer. -
Page 18: Symbol Sets
Each font uses symbols from one or more of these sets. A list of symbol sets is available in the Programmer's Reference Guide for your printer which is available as a hard copy or on disk from your OKI dealer. -
Page 19: Printer Menus
Printer Menus Use the printer’s menus to change the settings of printer features. Your selections stay in memory even when you turn off the printer. If your software can control a feature that is also controlled in the printer menu, the software will override the menu setting. -
Page 20: How To Enter The Menu And Select Options For The Okipage 6Ex
How to Enter the Menu and Select Options for the OKIPAGE 6ex Using the front panel buttons, you can enter the printer menu and change the default settings. Use your software to control printer settings whenever possible. If you can set a feature in your software, it will override the printer menu setting. -
Page 21: Level 1 Menu (Okipage 6Ex)
The following tables list the printer menu selections. Factory default settings are in bold italic. Level 1 Menu (OKIPAGE 6ex) Category Items PRINTER LANGUAGE EMULATE TRAY SELECT MANUAL PAPER IN AUTO TRAY (if Tray 2 is installed) EDIT SIZE EDT SIZE... - Page 22 Category Items PAPER SIZE CHK SIZE CHK COPIES COPIES FONTS & SYMBOLS FONT SRC DLLSOFT (appears if loaded) FONT NO. FONT CPI (appears if selected font is scalable/fixed spaced) FONT HGT (appears if selected font is scalable proportional spaced) SYMBOL PAGE LAYOUT 1 A4 WIDTH BLNKSKIP...
-
Page 23: Level 2 Menu (Okipage 6Ex)
Level 2 Menu (OKIPAGE 6ex) To enter the Level 2 Menu, press and hold the Category Items PRINT MODE MODE (resolution) MEMORY USAGE RST BUF REC BUFF FONT PROT FREE MEM AUTO OPERATION AUTOCONT AUTO EJECT DARKNESS CONTROL DARKNESS POWER SAVING POWER SAVING LOW TONER LOW TNR... - Page 24 Category Items CLEARABLE WARNINGS CLR WRNG PARALLEL I/F SPEED BI-DIRCT I-PRIME LANGUAGE LANGUAGE Options ON , JOB HIGH , MEDIUM ENABLE , DISABLE OFF , ON ENGLISH , DEUTSCH, FRANCIS, ITALIAN, CASTLAN, SVENSKA, NORSK, DANSK, NEDERL, T RKCE, PORTUG, Ü POLSKI...
-
Page 25: Maintenance Menu (Okipage 6Ex)
MENU RESET Reset Level 1 menu to factory settings. HEX DUMP Print a hexadecimal dump of received data for diagnostics. To exit, turn off the printer. DRUM CNT RESET Reset the drum counter after replacing the image drum cartridge. OP MENU ENABLE... -
Page 26: Replacing The Toner Cartridge
Replacing the Toner Cartridge Do not remove cartridge from packaging. Open the cover and remove the used toner cartridge. Shake the toner cartridge to evenly distribute toner. Unwrap the new cartridge. Remove the tape. - Page 27 Insert the toner cartridge. When the cartridge is in place, push the blue lock lever forward until it stops. Close the printer cover.
-
Page 28: Toner Cartridge Life
At 5% print density, a toner cartridge will print an average of 2,000 pages. Remember, this is only an average: actual results may vary. The first toner cartridge in your new printer has to fill the drum reservoir and saturate the developing roller with toner. It normally produces about 1,000 pages. -
Page 29: Replacing The Image Drum Cartridge
Replacing the Image Drum Cartridge Open the cover and remove the used image drum cartridge. Unwrap the new Image Drum cartridge and remove the protective sheet. Insert the new Image Drum cartridge. Remove the sponge insert. -
Page 30: Image Drum Cartridge Life
Install new toner cartridge. (see page 26) Reset the drum counter. For the OKIPAGE 6e, enter the Operator Panel. Click on the Service tab. Under Reset click Drum Count, then click OK. For resetting the drum counter on the OKIPAGE 6ex see page 25. -
Page 31: Lcd Window Display Messages For Okipage 6Ex
Message Status ON-LINE Indicates the printer is warming up Ready prior to operation. WARM UP Indicates the printer is in ON LINE ON-LINE Ready mode. XXX = HP4, FX, PPR, WIN, AUTO. OFF-LINE Indicates the printer is in OFF-LINE Ready mode. - Page 32 1 2 3 4 1 2 3 4 1 2 3 4 Temporary DLL/Macro data is also cleared. The printer will print a demo page. PRINT Ready Ready ON – Initiated by software 1 2 3 4 DEMO 1 2 3 4 command.
- Page 33 Message Status The printer is asking you to insert the correct size paper in the paper tray. Ready # 1 = Tray1, feeder, Tray2 (option). XXXXXXXX XXXXXXXX = (Paper Size) SIZE REQUEST Indicates that the paper tray is empty. # 1 = Tray1, feeder, Tray2 (option).
- Page 34 Ready Cover is open. Press down firmly to OPEN close. Abnormality found in the printer. ERROR(nn) Ready Switch printer off then on again to clear, if problem persists, contact service representative. Message Status Abnormality found in the printer. ERROR 0n...
-
Page 35: Error Code Table
Message Status EEPROM ID check error. Press EEPROM Ready to reset EEPROM to factory [RECOVER] RESETING default. Error Code Table CODE (nn) Error Address error (Load Command Fetch) Address error (Store) Bus error (Command Fetch) Bus error (Load, Store) System call Break point Reserved instruction Coprocessor unusable... -
Page 36: Oki Systems Company
Oki Systems Company Oki Systems (UK) Limited 550 Dundee Road Slough Trading Estate Slough Berks. SL1 4LE Tel: 01753-819819 Fax: 01753-819899... -
Page 37: Index
Index alcohol 16 DARKNESS software 19 CONTROL 23 AUTO OPERATION 23, 27 developing roller 28 Distorted print 11 DLL BUFFOVERFLOW 33 bitmapped fonts 17 driver 13 black lines printed 10 DRUM CNT RESET 25 blank sheets printed 9 drum counter 30 blue lock lever 27 blurred output 11 buttons 20... - Page 38 REC BUFOVERFLOW PRINT CLEANING 15 PRINT MODE 23 RECOVER 33 Print quality 31 repetitive marks 10 PRINTDEMO 32 RESET 32 printer buffer 33 RESET TOSAVE 34 PRINTER ROM 35 LANGUAGE 21 printer memory 14 Printer Menus 19 PRINTFONTS 32 scalable fonts 17...
-
Page 39: User Notes
User Notes... - Page 40 User Notes...
