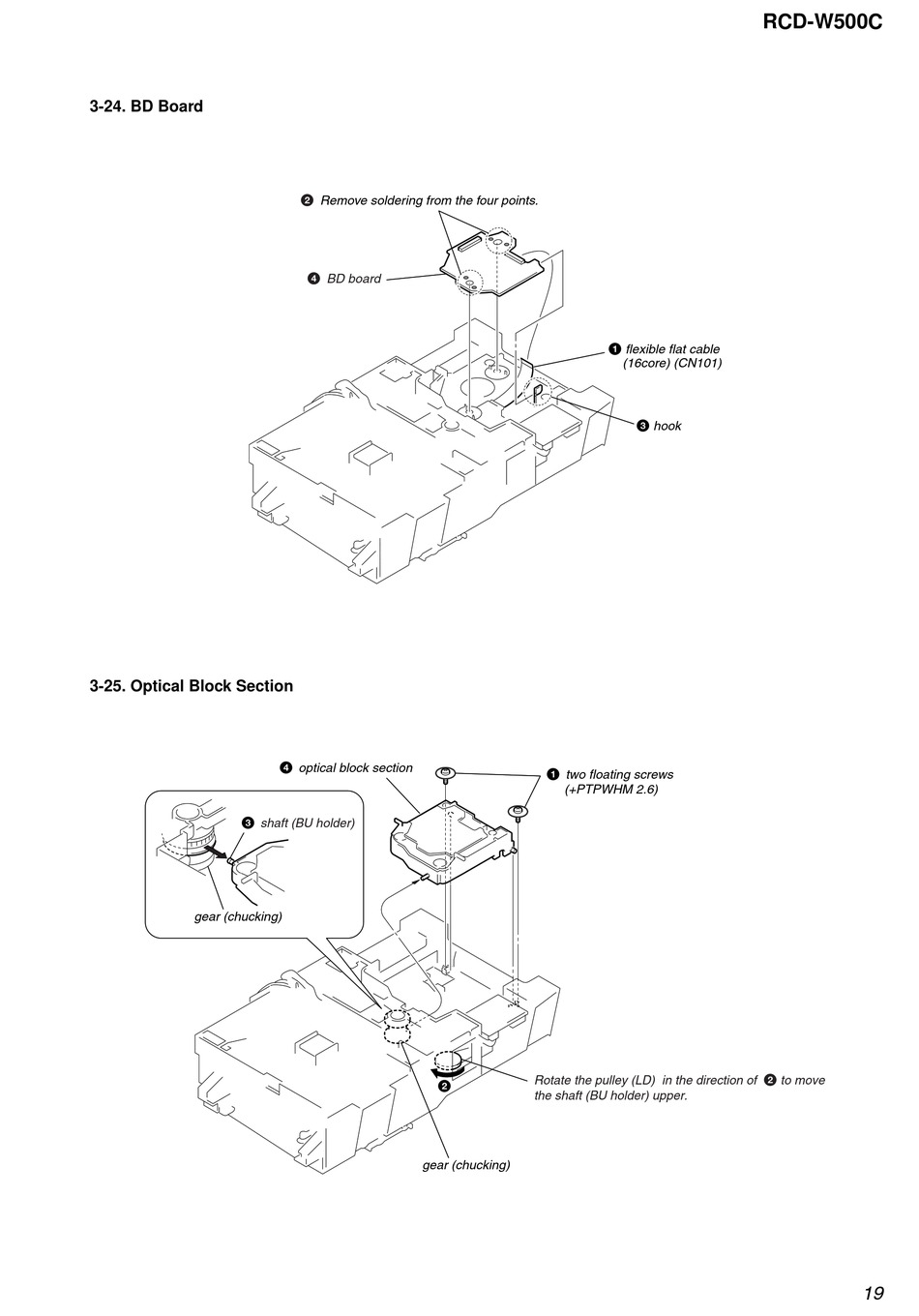

3-24. BD Board
3-25. Optical Block Section
shaft (BU holder)
3
gear (chucking)
Remove soldering from the four points.
2
4 BD board
4 optical block section
2
gear (chucking)
1 flexible flat cable
(16core) (CN101)
3 hook
1 two floating screws
(+PTPWHM 2.6)
Rotate the pulley (LD) in the direction of 2 to move
the shaft (BU holder) upper.
RCD-W500C
19
