O p e r a ti on

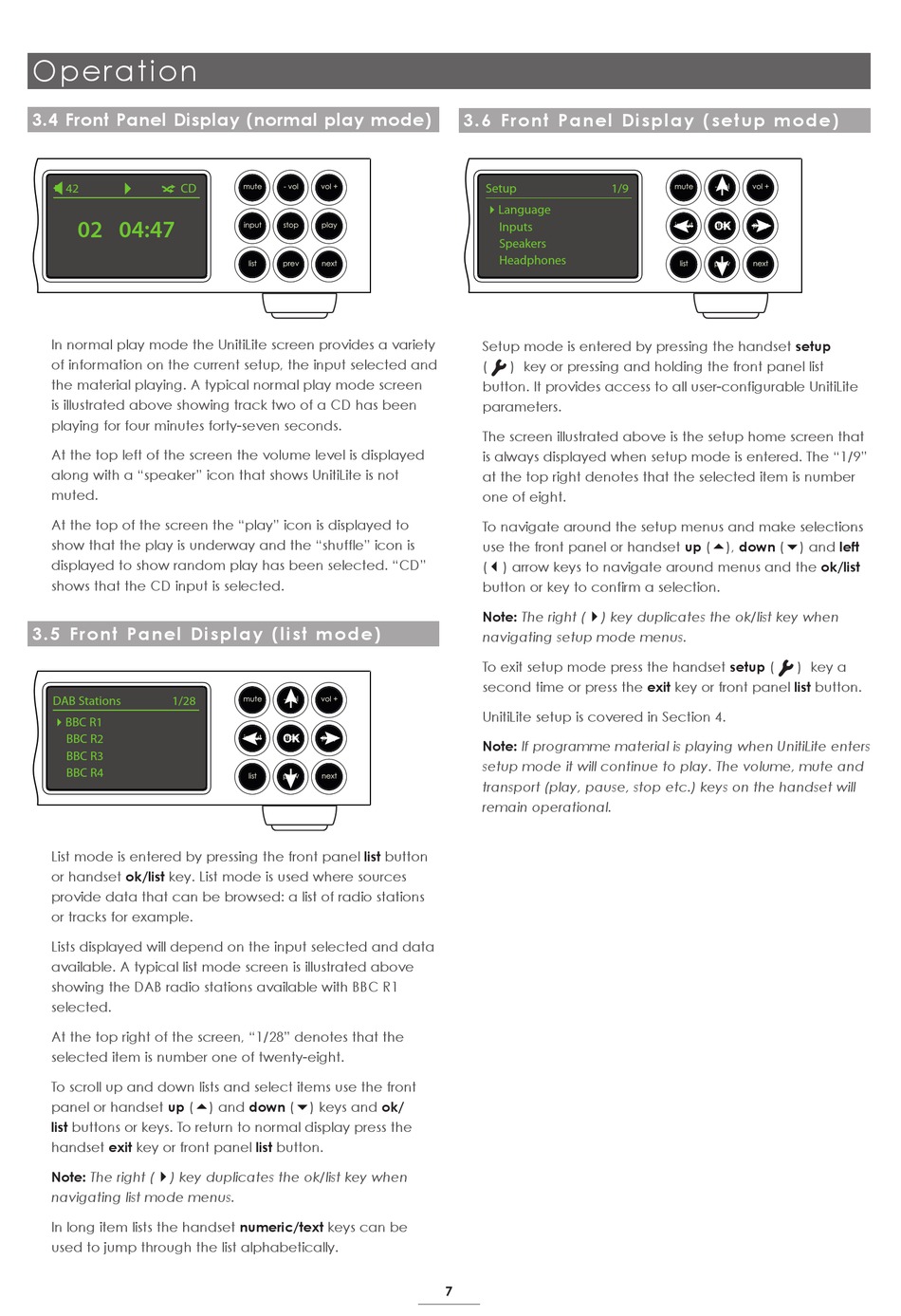

3.4 Front Panel Display (normal play mode)

42 CD
02 04:47
In normal play mode the UnitiLite screen provides a variety
of information on the current setup, the input selected and
the material playing. A typical normal play mode screen
is illustrated above showing track two of a CD has been
playing for four minutes forty-seven seconds.
At the top left of the screen the volume level is displayed
along with a "speaker" icon that shows UnitiLite is not
muted.
At the top of the screen the "play" icon is displayed to
show that the play is underway and the "shuffle" icon is
displayed to show random play has been selected. "CD"
shows that the CD input is selected.
3. 5 F ront P ane l Dis play (lis t mo de )
DAB Stations 1/28
4BBC R1
BBC R2
BBC R3
BBC R4
List mode is entered by pressing the front panel
or handset ok/list key. List mode is used where sources
provide data that can be browsed: a list of radio stations
or tracks for example.
Lists displayed will depend on the input selected and data
available. A typical list mode screen is illustrated above
showing the DAB radio stations available with BBC R1
selected.
At the top right of the screen, "1/28" denotes that the
selected item is number one of twenty-eight.
To scroll up and down lists and select items use the front
panel or handset up ( 5
list
buttons or keys. To return to normal display press the
handset exit key or front panel
Note: The right ( 4 ) key duplicates the ok/list key when
navigating list mode menus.
In long item lists the handset
used to jump through the list alphabetically.
mute - vol vol +
input stop play
list prev next
mute - vol vol +
OK
input stop play
list prev next
list
) and down ( 6 ) keys and
list button.
numeric/text keys can be
3 .6 Front P a nel Dis p la y ( s etu p m od e)
Setup
4Language
Inputs
Speakers
Headphones
Setup mode is entered by pressing the handset
( ) key or pressing and holding the front panel list
button. It provides access to all user-configurable UnitiLite
parameters.
The screen illustrated above is the setup home screen that
is always displayed when setup mode is entered. The "1/9"
at the top right denotes that the selected item is number
one of eight.
To navigate around the setup menus and make selections
use the front panel or handset
( 3 ) arrow keys to navigate around menus and the
button or key to confirm a selection.
Note:
The right (
navigating setup mode menus.
To exit setup mode press the handset
second time or press the
UnitiLite setup is covered in Section 4.
Note: If programme material is playing when UnitiLite enters
setup mode it will continue to play. The volume, mute and
transport (play, pause, stop etc.) keys on the handset will
remain operational.
button
ok/
7
1/9
mute - vol vol +
OK
input stop play
list prev next
up 5 down
( ),
4
) key duplicates the ok/list key when
setup
exit
key or front panel
setup
6 left
( ) and
ok/list
( ) key a
list
button.
