Capricorn Lab-C03 Instruction Manual page 29

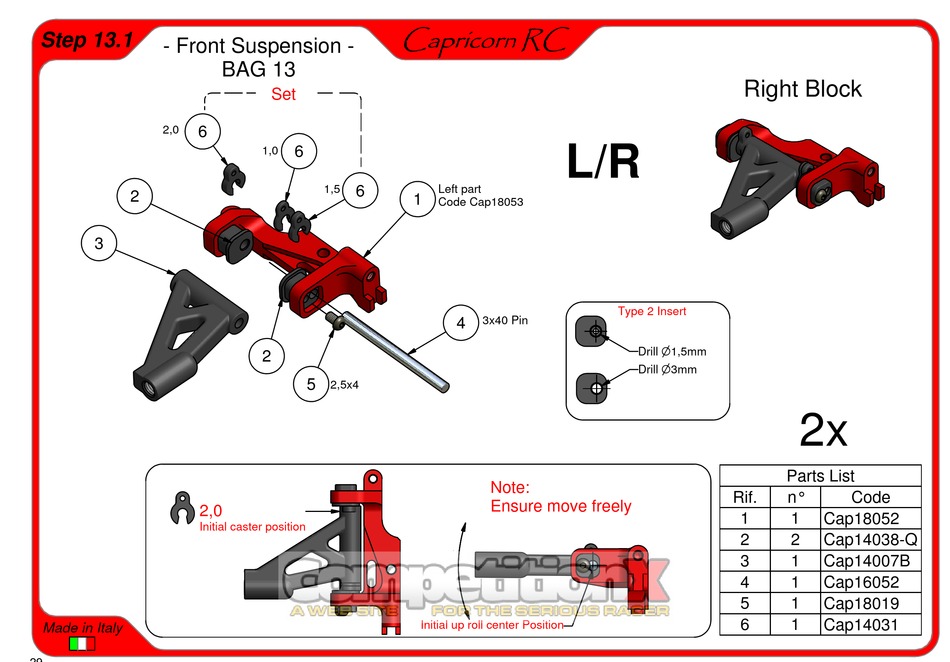

Step 13.1
- Front Suspension -
2,0
6
2
3
2,0
Initial caster position
Made in Italy
29
C C C C a a a a p p p p r r r r i i i i c c c c o o o o r r r r n n n n R R R R C C C C
BAG 13
Set
6
1,0
6
1,5
2
5
2,5x4
L/R
Left part
1
Code Cap18053
4 3x40 Pin
Note:
Ensure move freely
.
Initial up roll center Position
Right Block
Type 2 Insert
n
Drill 1,5mm
n
Drill 3mm
Parts List
Rif. n°
1 1
2 2
3 1
4 1
5 1
6 1
2x
Code
Cap18052
Cap14038-Q
Cap14007B
Cap16052
Cap18019
Cap14031
