JVC RX-ES1SL Service Manual

Home cinema control center
Hide thumbs Also See for RX-ES1SL:

Advertisement

Quick Links

See also: Instructions for Use Manual , Instruction Manual
SERVICE MANUAL
HOME CINEMA CONTROL CENTER
7
2003
22070
1
PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2
SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3
DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
4
ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
5
TROUBLE SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED
RX-ES1SL

TABLE OF CONTENTS

Area suffix
B ------------------------------- U.K.
E ----------- Continental Europe
EN ------------ Northern Europe
No.22070
2003/7

Advertisement

loading
Need help?

Need help?

Do you have a question about the RX-ES1SL and is the answer not in the manual?

Questions and answers

Anthony
June 1, 2025

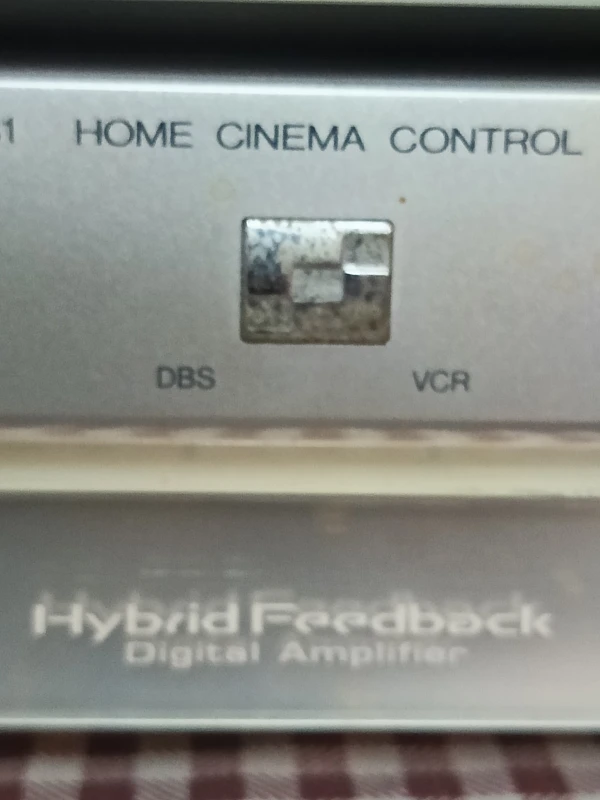

How to interconnect the units and wiring the speakers

User image 683c3ad6a63a7
0
1 comments:
Mr. Anderson
June 1, 2025

To interconnect the JVC RX-ES1SL and wire the speakers:

1. Turn off all components before making any connections.

2. Connect the speakers:
- Use speaker wire to connect the (+) and (–) terminals on the rear panel of the RX-ES1SL to the matching (+) and (–) terminals on each speaker.
- Connect the front left, front right, center, left surround, and right surround speakers to their respective terminals.

3. Connect a subwoofer (if available) to enhance bass. Use the subwoofer output on the receiver.

4. Set the speaker settings after all speakers are connected, to get the best surround sound effect.

5. FM antenna: If using an outdoor FM antenna with a 75 Ω coaxial cable, disconnect the supplied FM antenna before attaching it.

This answer is automatically generated

0

Related Manuals for JVC RX-ES1SL

Summary of Contents for JVC RX-ES1SL

  • Page 1: Table Of Contents

    SERVICE MANUAL HOME CINEMA CONTROL CENTER 22070 2003 RX-ES1SL Area suffix B ------------------------------- U.K. E ----------- Continental Europe EN ------------ Northern Europe TABLE OF CONTENTS PRECAUTIONS ............... 1-3 SPECIFIC SERVICE INSTRUCTIONS .
  • Page 2 SPECIFICATION Amplifier Output Power At Stereo operation Front ch 100 W per channel, min. RMS, both channels driven into 8 Ω at 1kHz with no more than 10% total harmonic distortion. (IEC268-3) 100 W per channel, min. RMS, driven into 8 Ω at At Surround Front ch operation...

  • Page 3: Precautions

    SECTION 1 PRECAUTIONS Safety Precautions (1) This design of this product contains special hardware and voltmeter. many circuits and components specially for safety purpos- Move the resistor connection to each exposed metal es. For continued protection, no changes should be made part, particularly any exposed metal part having a return to the original design unless authorized in writing by the path to the chassis, and measure the AC voltage across...
  • Page 4 1.5 Safety Precautions (U.K only) (1) This design of this product contains special hardware and many circuits and components specially for safety purposes. For con- tinued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replace- ment parts must be identical to those used in the original circuits.

  • Page 5: Specific Service Instructions

    SECTION 2 SPECIFIC SERVICE INSTRUCTIONS This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS. (No.22070)1-5...

  • Page 6: Disassembly

    SECTION 3 DISASSEMBLY Main body section 3.1.1 Removing the top cover (See Figs.1 and 2) (1) From the back side of the main body, remove the three screws A attaching the top cover.(See Fig.1) Top cover (2) From the both sides of the main body, remove the four screws B attaching the top cover.
  • Page 7 3.1.3 Removing the tuner (See Figs.5 and 6.) • Prior to perform the following procedures, remove the top cov- (1) From the top side of the main body, disconnect the card wire from the connector on the tuner. (See Fig.5.) (2) From the back side of the main body, remove the two screws E attaching the tuner to the rear panel.
  • Page 8 3.1.6 Removing the digital output board (See Fig.9) • Prior to perform the following procedures, remove the top cov- er, tuner, rear panel and digital input board. Card wires Reference: • Remove the tuner as required. (1) Disconnect the card wires from the connectors CN513 CN514 on the digital output board.
  • Page 9 3.1.8 2.1.8 Removing the power transformer (See Fig.11) • Prior to perform the following procedures, remove the top cov- Rectifier board Power transformer er and front panel assembly. DC power board (1) From the top side of main body, disconnect the wire from Tie band CN201 CN702...
  • Page 10 3.1.10 Removing the DC power board (See Fig.14) • Prior to perform the following procedures, remove the top cov- er, front panel assembly, rear panel and digital input board. DC power board CN218 (1) From the top side of the main body, disconnect the wires CN210 CN711 from the connectors (CN201, CN206, CN207, CN211,...
  • Page 11 3.1.13 Removing the rectifier board (See Fig.16) Recfifier board Headphone jack board • Prior to perform the following procedures, remove the top cov- er and front panel assembly. DC power board (1) From the top side of the main body, disconnect the wires CN711 Tie band from the connectors...

  • Page 12: Adjustment

    SECTION 4 ADJUSTMENT This service manual does not describe ADJUSTMENT. 1-12 (No.22070)

  • Page 13: Trouble Shooting

    SECTION 5 TROUBLE SHOOTING This service manual does not describe TROUBLE SHOOTING. (No.22070)1-13...
  • Page 14 VICTOR COMPANY OF JAPAN, LIMITED AV & MULTIMEDIA COMPANY AUDIO/VIDEO SYSTEMS CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan (No.22070) Printed in Japan...
