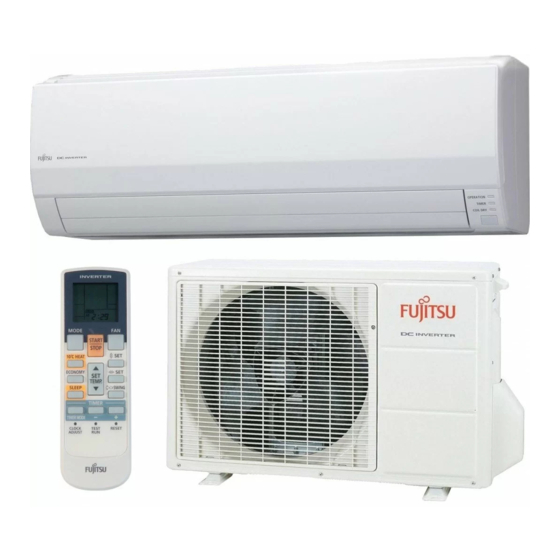

SPLIT TYPE
ROOM AIR CONDITIONER
WALL MOUNTED TYPE
Indoor unit
ASYG09LECB
ASYG12LECB
CO NT E N T S
SPECIFICATIONS. . . . . . . . . . . . . . . . . . .
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . .
REFRIGERANT SYSTEM DIAGRAM. . . .
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . .
INDOOR PCB CIRCUIT DIAGRAM . . . . .
OUTDOOR PCB CIRCUIT DIAGRAM . . .
ERROR DETECTION . . . . . . . . . . . . . . .
PARTS (INDOOR UNIT) . . . . . . . . . . . . .
PARTS (OUTDOOR UNIT) . . . . . . . . . . .
ACCESSORIES . . . . . . . . . . . . . . . . . . .
Outdoor unit
AOYG09LECAN
AOYG12LECAN
1
2
3
4
5
8
10
12
17
21
Advertisement
Related Manuals for Fujitsu ASYG09LECB
Summary of Contents for Fujitsu ASYG09LECB
- Page 1 SPLIT TYPE ROOM AIR CONDITIONER WALL MOUNTED TYPE Indoor unit Outdoor unit ASYG09LECB AOYG09LECAN ASYG12LECB AOYG12LECAN CO NT E N T S SPECIFICATIONS....
- Page 2 SPEC IF IC A T I ON S ELECTRICAL DATA NOISE LEVEL High Cool & heat inverter TYPE ASYG09LECB ASYG12LECB Medium INDOOR UNIT INDOOR UNIT Cooling OUTDOOR UNIT AOYG09LECAN AOYG12LECAN 2.50 kW 3.40 kW Quiet COOLING CAPACITY 3.20 kW 4.00 kW...
- Page 3 D I MENSIONS INDOOR UNIT 790 mm 202 mm Drain pipe diameter O.D 15.8 to 16.7 mm Liquid pipe diameter : 6.35 mm Gas pipe diameter : 9.52 mm OUTDOOR UNIT 790 mm 290 mm 540 mm 2013.01.15...
- Page 4 REFRIGERANT SYSTEM DIA GRAM Heat exchanger (indoor unit) 2-Way valve 3-Way valve Muffler Strainer 4-Way valve Expansion valve Heat exchanger (outdoor unit) Strainer 2012.12.25...
- Page 5 INDOOR UNIT 1 2 3 4 5 6 7 8 INDICATOR PCB WHITE ORANGE WHITE YELLOW LOUVER WHITE PINK WHITE BLUE OUTDOOR UNIT WHITE WHITE MAIN PCB REACTOR CN201 BLACK THERMISTOR BLACK ( PIPE TEMP. ) BLUE BLACK THERMISTOR YELLOW BLACK WHITE ( ROOM TEMP.
- Page 6 HP-T3064A-A29-L1 AC250V 3.15A UL1015 AWG24 BLACK POWER SOURCE UL1015 AWG24 WHITE AC230V 2013485-1 50Hz WHITE SERIAL UL1015 AWG24 MAIN PCB ASYG09LECB : K09DS-1206HSE-C1 ASYG12LECB : K09DS-1207HSE-C1 B07B-PASK-1 WHITE UL1015 EARTH AWG22 GREEN BLACK BLACK B04B-PL I SK-1 BLACK EARTH WHITE...
- Page 7 INDOOR UNIT MAIN PCB ASYG09LECB : K09DS-1206HSE-C1 ASYG12LECB : K09DS-1207HSE-C1 GREEN 340V 250V 20*20*18 2013485-1 18mH 0.01 <1/4W> 3.15A 0.6A - 10mH WHITE FH2 TP0035-31 x 2 <SS11V> <ECQE> S1NBC60 AC I N R53, R54 0.01 22k <1/4W> <KH> <1/4 470V <ECQU>...
- Page 8 INDOOR UNIT INDICATOR PCB K07BJ-0900HSD-D0 CN201 7 - JB / P L=230 # D201 SLR-343MC GREEN D202 SLR-343DC ORANGE D203 SLR-343MC GREEN SW201 KSHC611BT I C201 GP1UM261 R202 C202 C203 <1/4W> <F> 2012.11.09...
- Page 9 OU T D O OR P C B C IR C U I T D I A GRA M INVERTER ASSEMBLY AOYG09LECAN : EZ-01219HUE AOYG12LECAN : EZ-0121AHUE EMI FILTER ZCAT2132-1130 TO I NTDOOR UNIT W103 UL1015 UL1015 5A - 250V AWG14 AWG20 BLACK...
- Page 10 OUTDOOR UNIT MAIN PCB AOYG09LECAN : K10CT-120BHUE-C1 AOYG12LECAN : K10CT-120CHUE-C1 REACTOR POWER SOURCE AC230V 50Hz WHITE R400 - R407 SC-10-55JH BLACK 0.2 <1W> 1% x 8 0.01 470V <KH> <TNR> D100, D101 <LE> <LE> D15XB60 x 2 470V <TNR> 0.01 ORANGE ZPR0RCH400 <KH>...
- Page 11 Indoor unit display ERR OR DETECT ION INDOOR UNIT REMOTE CONTROL If you use a wireless remote control, the lamp OPERATION OPERATION lamp (green) on the photo detector unit will output error codes TIMER TIMER lamp (orange) by way of blinking patterns. ECONOMY ECONOMY lamp (green) If you use a wired remote control, error codes...
- Page 12 OUTDOOR UNIT ERROR Discharge temperature abnormal 0.5 second on / 0.5 second off IPM overcurrent protection 0.1 second on / 0.1 second off Thermistor abnormal CT abnormal 2.0 second on / 2.0 second off 0.1 second on / 2.0 second off Compressor location abnormal 5.0 second on / 5.0 second off Fan abnormal...
- Page 13 PARTS INDOOR UNIT Front panel Ref. Des Air C Fron Intak Grill Air F Wire Wire Louv Louv 2013.01.15...
- Page 14 Ref. Description Part number Control Box 9316582002 Control Cover 9316583009 Main PCB (ASYG09L) 9708536354 Main PCB (ASYG12L) 9708536361 Terminal 9900638009 Thermistor Assy 9900563004 Room Thermistor Holder 9316895003 Display Case 9316587007 Indicator PCB 9707649024 2012.12.26...
- Page 15 INDOOR UNIT Casing assy 2012.12.26...
- Page 16 2012.12.26...
- Page 17 2012.12.26...
- Page 18 PARTS OUTDOOR UNIT Ref. Description Part number Ref. Description Part number Thermistor Holder (09) 9313954048 Grip 9317588003 Thermistor Holder (12) 9313954031 Cabinet Right Assy 9317759007 Protective Net 9318635003 Fan Motor 9602864003 Front Panel Assy 9317760041 Propeller Fan 9313808013 Emblem 9319151007 Base Assy 9316885059 Top Panel Assy...
- Page 19 OUTDOOR UNIT Ref. Description Part number Main PCB (AOYG09) 9708753331 Main PCB (AOYG12) 9708753348 PCB Holder 9313074029 Terminal 9900435028 Heat Sink A 9314410017 Heat Sink B 9314090011 Reactor Assy 9900611019 Outdoor Thermistor 9900544010 Thermistor Assy 9900614003 2012.12.26...
- Page 20 OUTDOOR UNIT AOYG09LECAN Ref. Description Part number Condenser Total Assy 9318711004 Compressor Assy 9317619004 2-way Valve Assy 9314554018 3-way Valve Assy 9314022012 4-way Valve Assy 9314093050 Solenoid 9970055010 Pulse Motor Valve Assy 9314557019 Expansion Valve Coil 9970095030 2012.12.27...
- Page 21 OUTDOOR UNIT AOYG12LECAN Ref. Description Part number Condenser Total Assy 9332359008 Compressor Assy 9317619004 2-way Valve Assy 9332371000 3-way Valve Sub Assy 9317109000 4-way Valve Assy 9332365009 Solenoid 9970055010 Pulse Motor Valve Assy 9332368000 Expansion Valve Coil 9970095030 2012.12.27...
- Page 22 A CC ESS OR I E S INDOOR UNIT Name and Shape Part number Name and Shape Wall hook bracket 9316590007 Cloth tape Tapping screw (big) 4 x 25) Remote control 9379219006 Tapping screw (small) 3 x 12) Remote control holder 9305642045 Air cleaning filter (Apple katekin)
- Page 23 1212G4152...
