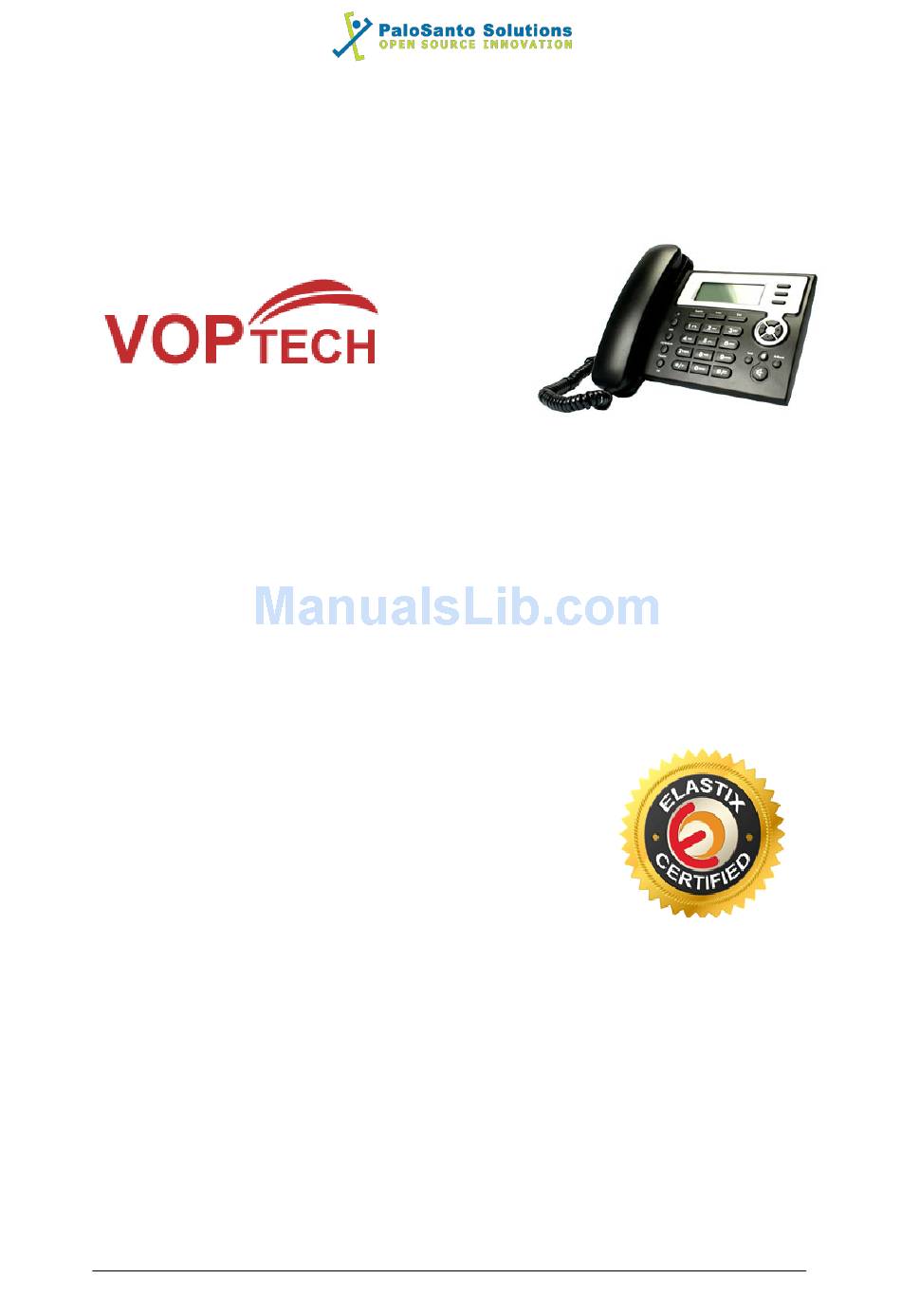

- Page 1 Voptech VI2006 and Elastix Server Setup Guide http://www.elastix.org...
-
Page 2: Setup Diagram
Voptech VI2006 and Elastix Server Setup Guide 1.0 Setup Diagram Figure 1-1 is a setup diagram for a single IP Phone Voptech VI2006 configuration. The phone is setup as a SIP telephony device. Figure 1-1. Setup Diagram 2.0 Host PC Environment Table 2-1. -
Page 3: Setup Procedure
Voptech VI2006 and Elastix Server Setup Guide 4.0 Setup Procedure To set up the Elastix Server for the Voptech VI2006, 1. Go to the web address of the Elastix Server Login page. The web address is determined by the customer, for this guide we have used the IP address 192.168.1.75... - Page 4 PaloSanto Solutions Voptech VI2006 and Elastix Server Setup Guide 5. Click on the Submit button to add a SIP extension by having selected Generic SIP Device, see Figure 4-3. This will take you to the Add SIP Extension page. Figure 4-3. Add an Extension 6.
- Page 5 With this you have just finished creating a SIP extension that will be used by the Voptech VI2006 to register with the Elastix Server. Repeat Steps 5 through 8 to similarly create another extension (different values on Step 6) to be used by the IP (SIP) Phone to register as well (extension 302 in this example).
-
Page 6: Manual Configuration
PaloSanto Solutions Voptech VI2006 and Elastix Server Setup Guide MANUAL CONFIGURATION 1. Log in to the Voptech VI2006 WebUI by pointing your browser to the Phone‟s IP address. For the initial configuration, refer to the Voptech VI2006‟s User Guide which can be found in the Voptech‟s product page at:... - Page 7 Figure 4-9. VOIP 5. Configure the other IP (SIP) Phone with the correct parameters. To test the Voptech VI2006, pick up the previously configured IP (SIP) Phone and call the Voptech VI2006‟s extension number (301 in this example). When the call is established, speak into the phone and verify that the other IP (SIP) Phone can hear your voice.
- Page 8 Voptech VI2006 and Elastix Server Setup Guide AUTOPROVISIONING USING ELASTIX‟S ENDPOINT CONFIGURATOR Find out the Voptech VI2006‟s IP Address so you can easily identify the phone Note: in the next steps. 1. In the Elastix WebUI go to “PBX => Endpoint Configurator” (Figure 4-10).
- Page 9 User Extension. 5. Configure the other IP (SIP) Phone with the correct parameters. 6. To test the Voptech VI2006, pick up the previously configured IP (SIP) Phone and call the VI2006‟s extension number (301 in this example). When the call is established, speak into the phone and verify that the other IP (SIP) Phone can hear your voice.
