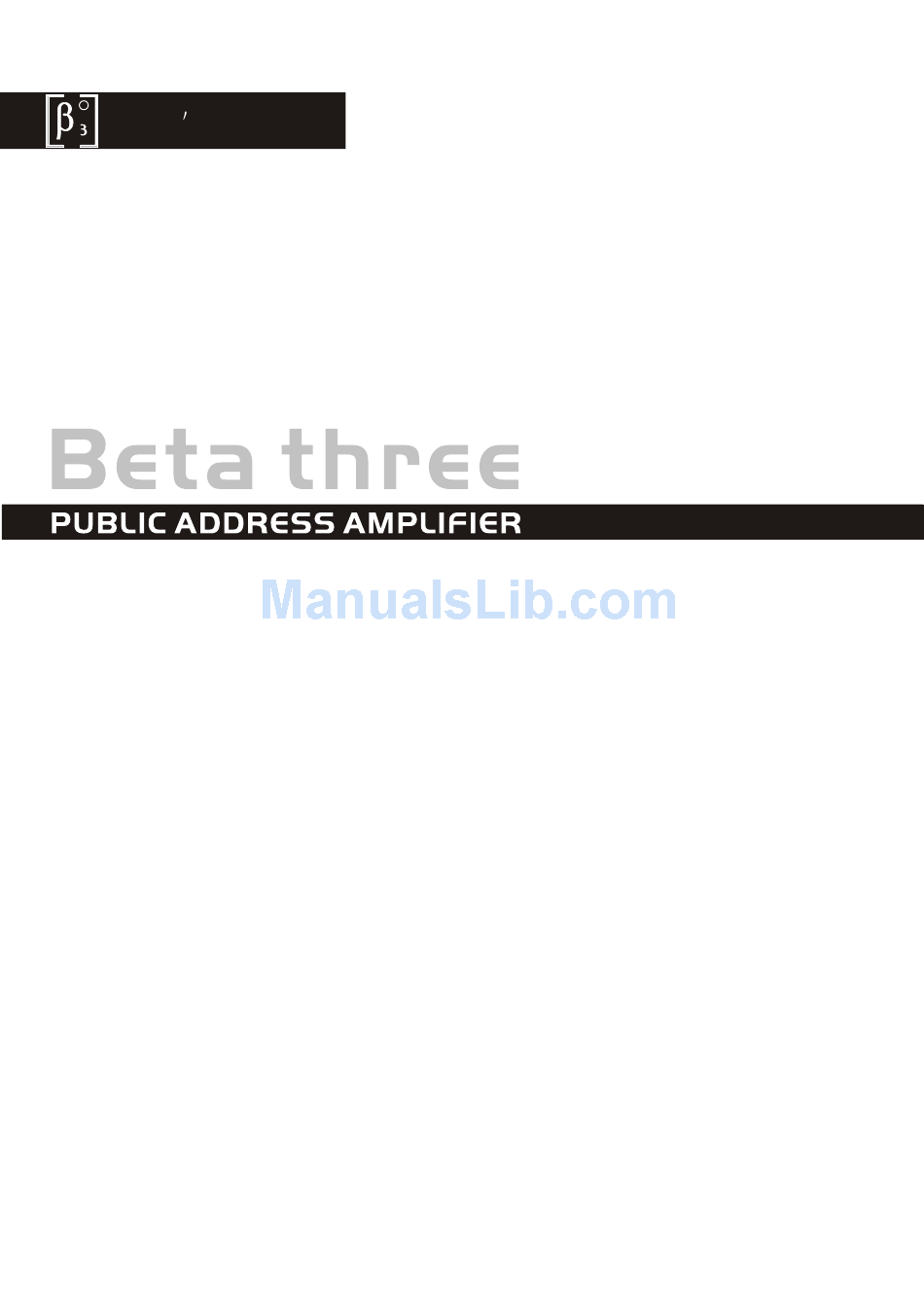

- Page 1 User sM anual ED-B3-MA-050530-001 BA3240...
-
Page 2: Table Of Contents
DEAR CUSTOMERS: Please read the user manual carefully before using BA-3240,and operate according to the user manual strictly.Any questions, please ask for the local distributor. CONTENTS Attentions Functions&features Parameters Front panel Back panel Power supply Function setup and cable connection Operations Protection functions Troubles and trouble shootings... -
Page 3: Attentions P3
ATTENTIONS Do not open the cover because exist dangerous voltage,please ask the professional to repair Do not expose it to the raining or moisture Do not put it under the direct sunshine,high temperature or heat source Keep good ventilation,not stop the ventilating hole Note the local voltage must matched with the voltage required Please put off the plug if not use for a long time Connect with right load, not work under overload for a long time... -
Page 4: Parameters P4
PARAMETERS BA3240 MODEL 240W THD<1% RMS Frequency response +0/-3dB 50Hz-16KHz 8 /1W monitor 4-16 rated impedance Output terminal 25V 50V 75V 100V 125Vrated voltage INPUT SENSITIVITY/IMPEDANCE INPUT1-INPUT4 microphone input 10mV/1K Balanced INPUT1-INPUT4 line input 200mV/30K Balanced INPUT5 input 200mV/50K Unbalanced <0.5% @1KHz 24W... -
Page 5: Front Panel

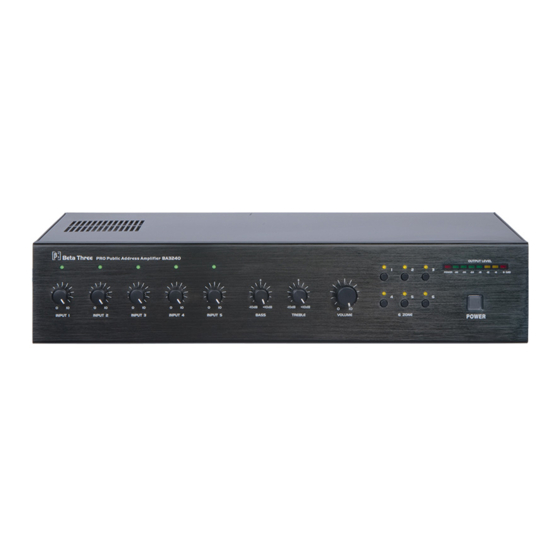

FRONT PANEL Beta Three PRO Public Address Amplifier BA3240 OUTPUT LEVEL (dB) POWER -10dB +10dB -10dB +10dB INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5 BASS TREBLE VOLUME 6 ZONE POWER 1 Signal indicator for input 1 Volume control for channel 1 5... -
Page 6: Power Supply
POWER SUPPLY Please ensure that the back voltage showing is according with the local voltage This unit have voltage selector, can be used for different voltage Before operation, please chck the local voltage is optional for the 110/220V selector voltage, you can connect it if correct and optional. -
Page 7: Function Setup And Cable Connection
FUNCTION SETUP AND CABLE CONNECTION 1> Unit connecting Signal For example Mic/ cd/NL4/receiver) Zone 3 Zone 4 Mic 1 Zone2 Zone 5 Zone1 Zone 6 ZONE OUTPUT VOLTAGE SELECTOR CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN REC OUT AUX IN ~110V/~220V 50-60Hz ·... - Page 8 Connect correct output voltage to the zone terminal based on your needs 6> Output connecting Please select correct voltage of broadcast to connect with relative interface of the BA3240 Can connect many loudspeaker in parallel connection.But the total power can not be over 240W...
-
Page 9: Operations P9
OPERATIONS PLEASE OBEY THE FOLLOWING: 1 Start a set the right function and connect the right cable b check the output line and see if it is short circuit or loading is too low c check the local voltage is same as the require of power d adjust the volume to Min e connect the power supply,then open the sound source,pre and effect equipments, must sure all equipments work well... -
Page 10: Troubles And Trouble Shootings
TROUBLES AND TROUBLE SHOOTINGS Status Solutions Check power plug connection No sound,and the Check the voltage 220V/110V indicator is not lit up Check the fuse Check the input signal No sound, the power indicator is lit up, If open the power supply and adjust the volume And signal indicat or is not lit up Check the volume electroform... - Page 11 User sM anual BA3240...
