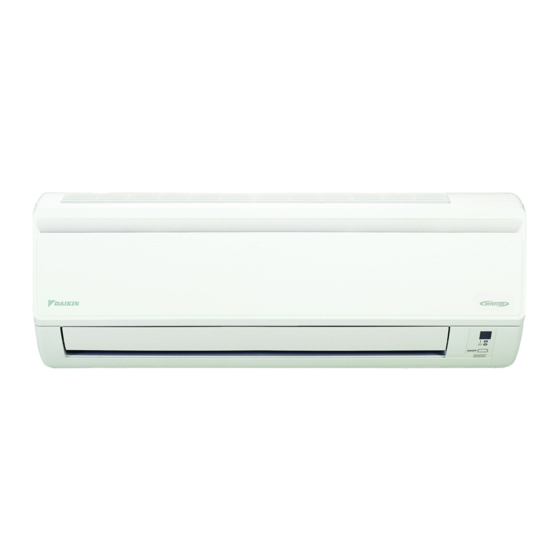

Summary of Contents for Daikin FTX20JV
-
Page 1: Technical Data
Air Conditioners Technical Data W a l l m o u n t e d u n i t E E D E N 1 2 - 1 0 0 FTX-JV... -
Page 2: Table Of Contents
• Indoor Unit • Wall mounted unit • FTX-JV TABLE OF CONTENTS FTX-JV Features ............. 2 Specifications . -
Page 3: Features
• Indoor Unit • Wall mounted unit • FTX-JV Features U n i o o r - J V I n d F T X • Whisper quiet operation: down to 23dBA sound pressure level • Comfort mode guarantees draught free operation by preventing that warm or cold air is directly blown on to the body •... -
Page 4: Specifications
• Indoor Unit • Wall mounted unit • FTX-JV Specifications 2-1 Technical Specifications FTX20JV FTX25JV FTX35JV Power input Cooling Nom. 0.040 Heating Nom. 0.040 Casing Colour White Dimensions Unit Height/Width/Depth 283/770/198 Packed unit Height/Width/Depth 344/840/263 Weight Unit Packed unit Heat exchanger... -
Page 5: Electrical Specifications
• Indoor Unit • Wall mounted unit • FTX-JV Specifications 2-2 Electrical Specifications FTX20JV FTX25JV FTX35JV Power supply Name Phase Frequency Voltage 220-230-240 Current - 60Hz Nominal running current Wiring connections - For power supply Quantity 50Hz Remark 4 for interunit wiring 4 for interunit wiring (earth wire included) •... -
Page 6: Dimensional Drawings
• Indoor Unit • Wall mounted unit • FTX-JV Dimensional drawings 3 - 1 Dimensional Drawings • Spli t - Sky Air • Indoor Unit... -
Page 7: Centre Of Gravity
• Indoor Unit • Wall mounted unit • FTX-JV Centre of gravity 4 - 1 Centre of Gravity • Spli t - Sky Air • Indoor Unit... -
Page 8: Piping Diagrams
• Indoor Unit • Wall mounted unit • FTX-JV Piping diagrams 5 - 1 Piping Diagrams • Spli t - Sky Air • Indoor Unit... -
Page 9: Wiring Diagrams
• Indoor Unit • Wall mounted unit • FTX-JV Wiring diagrams 6 - 1 Wiring Diagrams - Single Phase • Spli t - Sky Air • Indoor Unit... -
Page 10: Sound Data
• Indoor Unit • Wall mounted unit • FTX-JV Sound data 7 - 1 Sound Pressure Spectrum • Spli t - Sky Air • Indoor Unit... - Page 11 • Indoor Unit • Wall mounted unit • FTX-JV Sound data 7 - 1 Sound Pressure Spectrum • Spli t - Sky Air • Indoor Unit...
- Page 12 • Indoor Unit • Wall mounted unit • FTX-JV Sound data 7 - 1 Sound Pressure Spectrum • Spli t - Sky Air • Indoor Unit...
- Page 13 EEDEN1 2 - 1 0 0 leaflet. All content is copyrighted by Daikin Europe N.V. Naamloze Vennootschap - Zandvoordestraat 300, B-8400 Oostende - Belgium - www.daikin.eu - BE 0412 120 336 - RPR Oostende...
