INSTRUCTION MANUAL
'93' SERIES RTR BRUSHLESS EP RACING BOAT
THESE INSTRUCTIONS SHOULD BE READ BY A SUPERVISING ADULT, IN CONJUNCTION
WITH THE SEPARATELY INCLUDED RADIO CONTROL INSTRUCTIONS

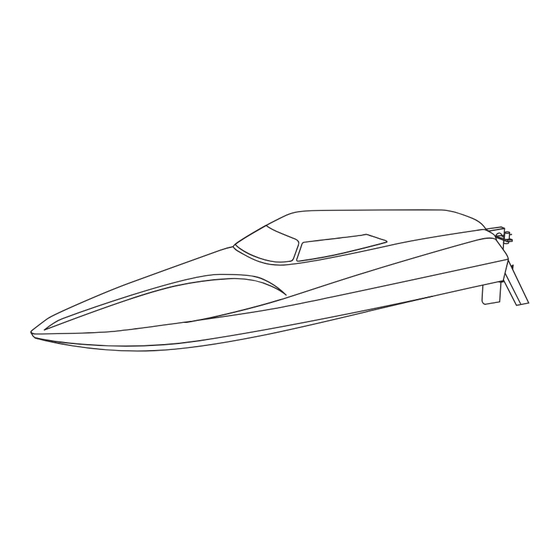

OFFSHORE WARRIOR RTR
PART NO:
B-JS-9301BR/2-4G
B-JS-9301RR/2-4G
B-JS-9301YR/2-4G

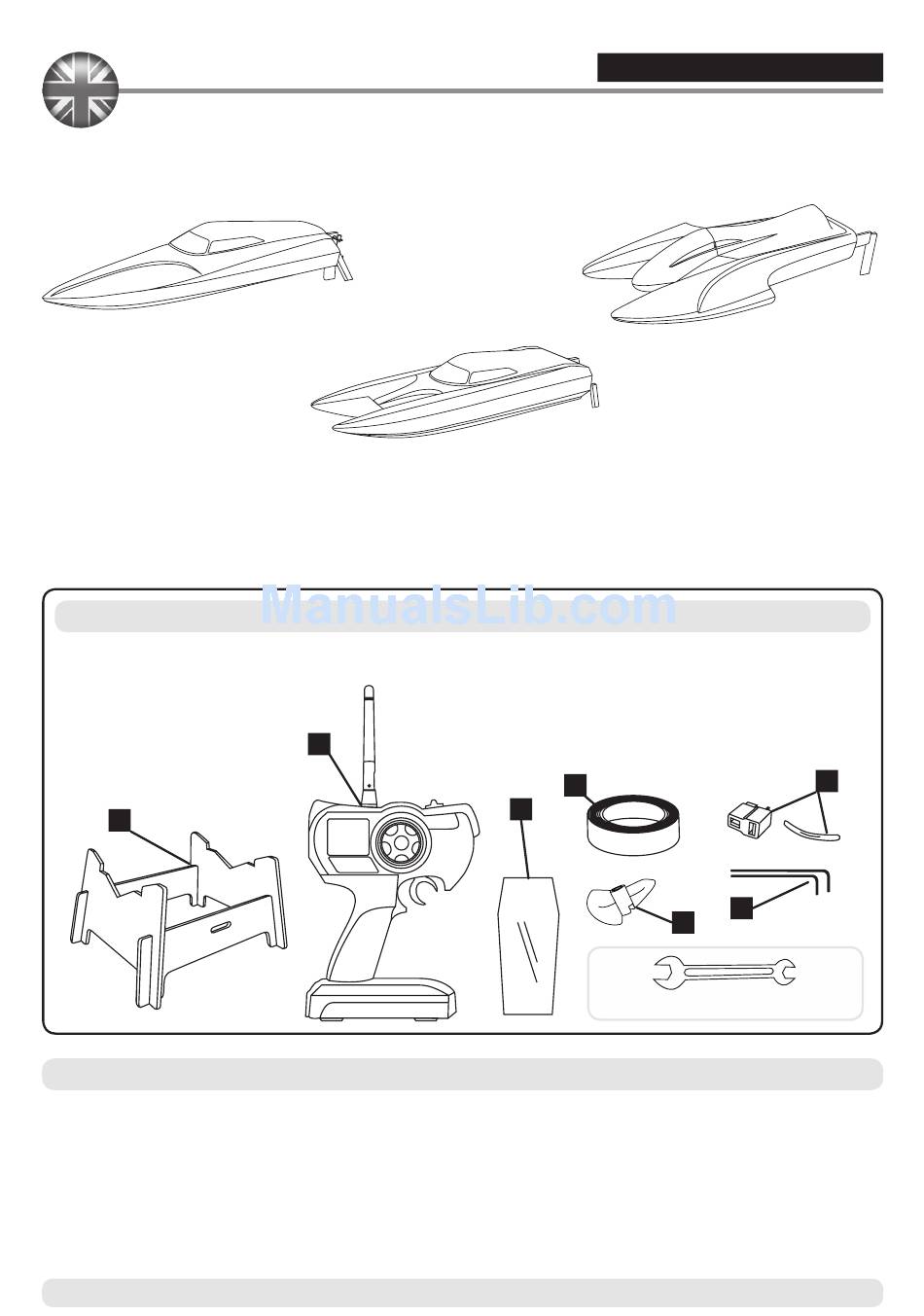

CONTENTS OF SET
1) Transmitter
2) Boat Stand
3) Clear Plastic Cover
4) Waterproofing Tape
5) Spare Propeller
2
REQUIRED FOR (NOT INCLUDED)
1) 11.1V, 2200mAh (or greater) 20C LiPo Battery Pack
2) LiPo Battery Charger
3) 5.5 and 7mm Nut Drivers
4) 8 x AA Batteries (for Transmitter)
Note: LiPo battery should have Deans-type connector fitted. If not supplied with LiPo battery, solder
included Deans connector to LiPo battery wires noting correct polarity (+/-).
1
OFFSHORE SEA RIDER RTR
PART NO:
B-JS-9302BR/2-4G
B-JS-9302RR/2-4G
B-JS-9302YR/2-4G
6) 2.0mm Allen Key (for Coupler)
7) Deans Connector w/Heatshrink - Fit to LiPo
1
'93' Series RTR Brushless EP Racing Boat
THIS MODEL IS NOT A TOY!
OFFSHORE SEA DRIFTER RTR
B-JS-9303RR/2-4G
B-JS-9303YR/2-4G
2.5mm Allen Key (for Turn Fins, etc.)
battery if not already fitted
4
3
7mm & 5.5mm Spanner (Not Included)
PART NO:
7
6
5
Advertisement
Table of Contents
Related Manuals for Joysway WARRIOR B-JS-9301BR
Summary of Contents for Joysway WARRIOR B-JS-9301BR
- Page 1 INSTRUCTION MANUAL THIS MODEL IS NOT A TOY! ‘93’ SERIES RTR BRUSHLESS EP RACING BOAT THESE INSTRUCTIONS SHOULD BE READ BY A SUPERVISING ADULT, IN CONJUNCTION WITH THE SEPARATELY INCLUDED RADIO CONTROL INSTRUCTIONS OFFSHORE WARRIOR RTR OFFSHORE SEA DRIFTER RTR PART NO: PART NO: B-JS-9301BR/2-4G...
- Page 2 Note: The ‘Offshore Warrior’, ‘Offshore Sea Rider’ and ‘Offshore Sea Drifter’ will also be referred to as ‘Warrior’, ‘Sea Rider and ‘Sea Drifter’ in these instructions, as well as “93’ series models’. IMPORTANT Before using this ‘93’ series model and its radio control system, and to ensure the safety of yourself and others, it is very important that you read these instructions thoroughly and understand them.
- Page 3 WATERPROOFING TIPS You should take steps to ensure that your ‘93’ series model and its radio control equipment are adequately protected against the possibility of water damage. We recommend that you place your model’s receiver inside a rubber bag (balloon) and tie the end off with a cable tie or similar. Use the clear plastic sheet and waterproofing tape provided to seal the hull as shown after you have connected the LiPo battery pack, before placing your ‘93’...
- Page 4 TURN FINS The Warrior and Sea Rider feature adjustable turn fins to aid in turning. These can be adjusted using the included Allen key. The optimum angle of adjustment is 45 degrees to the hull. GETTING READY TO USE YOUR '93' SERIES MODEL (Model should be placed on its supplied boat stand) 1) Check that the turn fins are adjusted correctly (for Warrior/Sea Rider).
- Page 5 IF THE ‘93’ SERIES MODEL DOES NOT RUN IN A STRAIGHT LINE Note: These adjustments should be carried out in conjunction with the separately included radio control instructions. If your '93' series model does not run in a straight line when not being steered, you can adjust it by using the steering trim located on the transmitter.
- Page 6 CAUTION! Please observe the following warnings. DURING OPERATION • Ensure that all batteries are correctly installed and that the LiPo battery pack is fully charged. • Do not operate your '93' series model in areas with strong currents, in salt water or areas of water with large waves.
- Page 7 TROUBLE SHOOTING Check using the chart below before returning your '93' series model for repair as many problems can be easily solved. PROBLEM CAUSE REMEDY Model will not move No battery in transmitter/model Install batteries Battery installation is incorrect Install batteries correctly, checking polarity (+/-) Weak batteries in transmitter Replace/recharge batteries...
- Page 8 ITEM NO. ITEM NAME PICTURE 93011 2Bl Propeller (30mm Dia) - 93 Series (Standard) 93011A 2Bl Propeller (27mm Dia) - 93 Series (Option) 93011B 2Bl Propeller (32mm Dia) - 93 Series (Option) 93011C 2Bl Propeller (35mm Dia) - 93 Series (Option) 93016 Knurled Brass Fixing Knob (Pk2) 93017...
