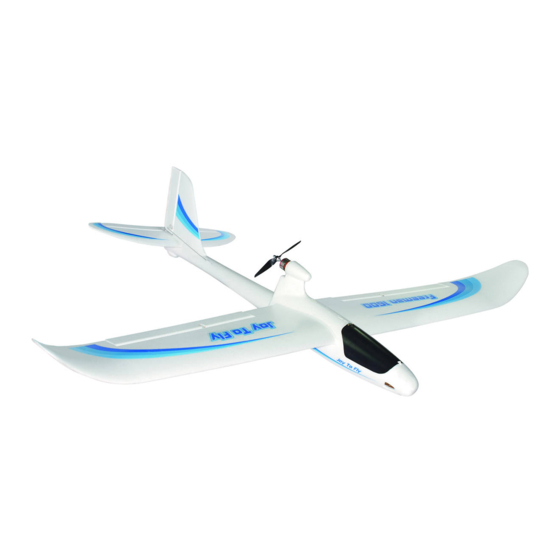

Joysway Freeman 1600 Instruction Manual

Joysway Freeman 1600 Instruction Manual

2.4ghz artf glider

Advertisement

Quick Links

#6103 V3 version Manual Addendum
Box contents are #6103 V3 Freeman V3 version glider. Compare to V2 version, the
main changes are new fuselage with better looking fuselage head and new EPO
hatch.
Please note that For RTF specification, the kits including 11.1V1400mAh LiPo
battery, not 11.1V 1500mAh Li-Ion as manual stated.
For Freeman V3 version, pls take belowing spare parts list as reference for ordering
the spare parts:
Part No.
610105
610106
610206
610207
610208
610210
610305
610307
610310
610313
610314
610315
610316
610318
610319
610321
610322
610323
610324
Part Name
Pushrod adjuster set(PK2)
Elevator/Rudder Servo set
Control Horn set(PK6)
Aileron servo set
CF2812 Brushless motor 1950KV set
Propeller & Spinner set (PK2)
Pushrod set(PK2)
2S/3S Blance Charger with DC Adapter
30A Brushless ESC set
2.4GHz Receiver set for J4C03
2.4GHz 4CH Transmitter set-J4C03
2.4GHz 4CH Transmitter and receiver set
11.1V 1400mAh 25C LiPo
Main wings set without decal sticker-V2&V3
Vertical tail and Horizonal tail-V2&V3
Freeman decal stickers set-V2&V3
Fuselage set without decal sticker-V3
EPO Hatch with magnet-V3
Wings Plastic bolt(black color)-V3
