FlashLogic FLRSGM7 Install Manual page 6

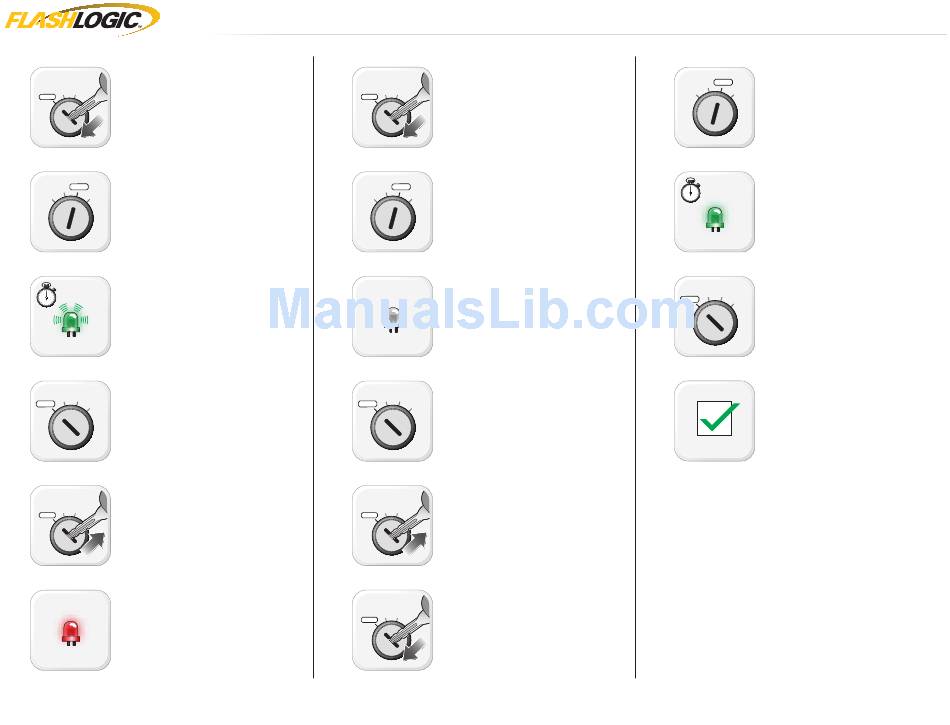

01
Insert key into ignition.
ACC ON
OFF START
02
Turn key to ON position.
ACC ON
START
OFF
03
Wait, LED will fl ash GREEN rapidly.
04
Turn key to OFF position.
ACC ON
START
OFF
05
Remove key.
ACC ON
OFF START
06
LED will turn solid RED.
Automotive Data Solutions Inc. © 2013
MODULE PROGRAMMING PROCEDURE - 1 OF 1
07
Insert key into ignition.
ACC ON
OFF START
08
Turn key to ON position.
ACC ON
START
OFF
09
LED will turn OFF.
10
Turn key to OFF position.
ACC ON
START
OFF
11
Remove key.
ACC ON
OFF START
12
Insert key into ignition.
ACC ON
START
OFF
FLC-GM(RS)-GM7-EN
13
Turn key to ON position.
ACC ON
START
OFF
14
Wait, LED will turn solid GREEN for 2 seconds.
15
Turn key to OFF position.
ACC ON
START
OFF
16
Module Programming Procedure completed.
