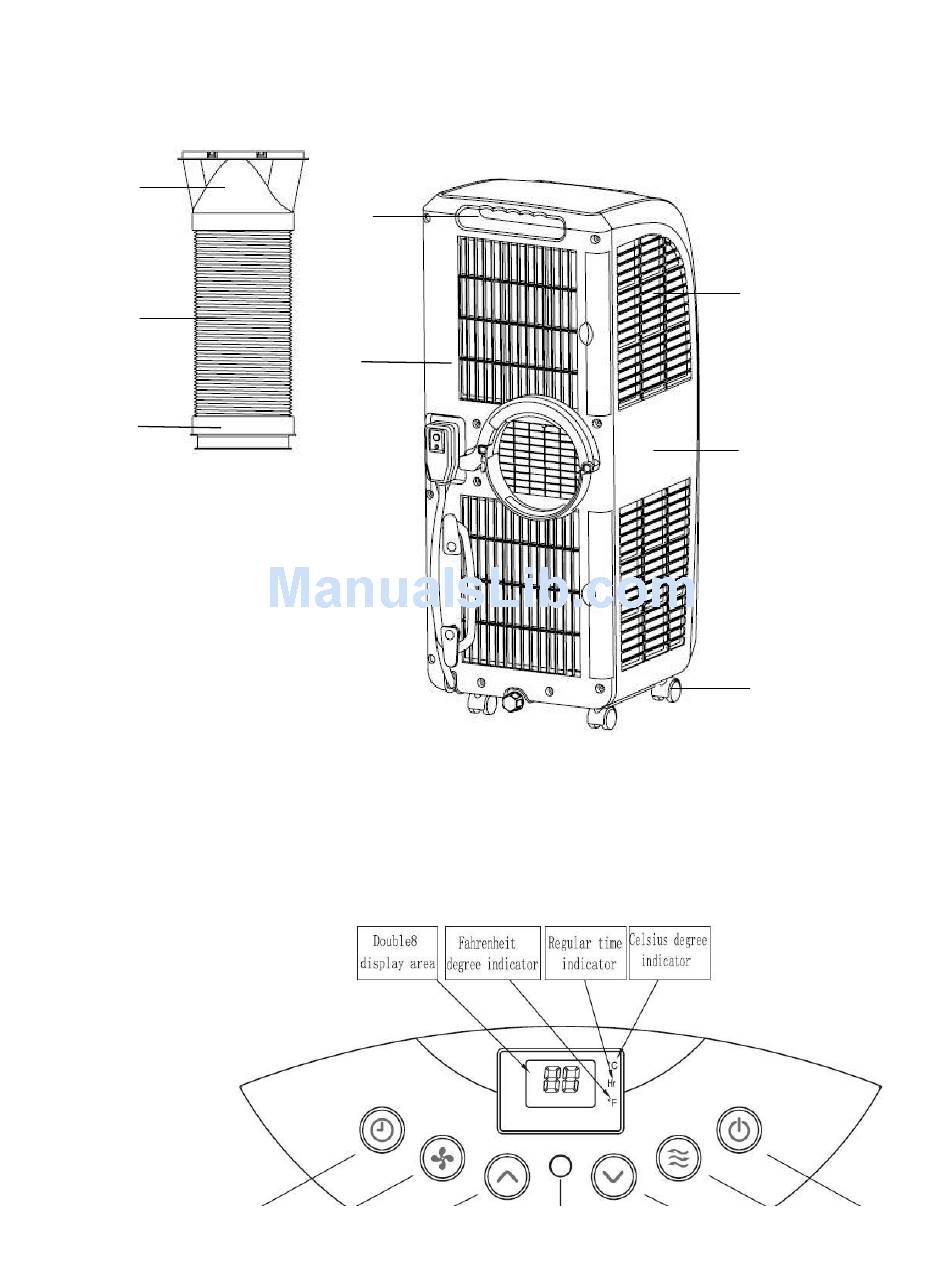

- Page 1 Diffuser Handle Filter Hose Rear Panel Connector Left Panel Rollers 一.Operating Instructions control panel and remote...
- Page 2 Functions Setting This portable air conditioner has three functions: cooling, dehumidifying and fan. Fan has two speeds: high speed and low speed, setting temperature is 17--30℃（62～86 ℉）, 24 hours timer, sensor and water-level protective function. Buttons:There six keys on the control panel: POWER，Mode，Fan Speed, Timer, Up key and Down key .
- Page 3 b) In the dry mode, if the ambient temperature ≥17℃(62℉), the compressor will start.Then, the unit is controlled in the following manner: when the ambient temperature ≤15℃(59℉), the compressor shuts down. When the ambient temperature raise to be ≥17℃(62℉), the compressor starts again. The start /stop of the compressor meets the requirement for 3-minute protection time.
- Page 4 seconds, the compressor and water spraying motor turn off, other loads operate and LED displays E4, the unit initiates the anti-frost protection function and the buttons are inactive (except the OFF button). Once the pipe temperature rises to exceed or equal 8 ℃, the protection is relieved, the original status is restored and the unit meets the requirements for 3-minute delay protection of the compressor.
- Page 5 3.Remove the 9 screws fixed in the front panel and rear panel. 4.Remove the rear panel 5.Remove the 1 srews fixed in the front panel and base pan,then remove the front panel. 6.Reinstall the parts followed the above steps 1.2 C-box Cover 1.Refer to 1.1 to remove and rear panel.
- Page 6 cover and C-box. 5.Remove 1 screw fixed in the power cord ground wire and C-box,remove 2 screws fixed in the motor ground wire and electrical control. 6.Pull out all the wire(sensor wire, display wire,motor wire,power cord, comp wire） 7.Remove 4screws fixed in C-box, then take it out.
- Page 7 1.3 Indoor Fan 1.Refer to 1.1to remove the front panel and rear panel. 2.Refer to 1.2 to remove the C-box. 3.Take the indoor fan cover out,then remove the up-foam 4.Remove the screws fixed in the fan by the special tools,then take the fan out.
- Page 8 5.Remove the two screws fixed in the up-foam，then take it out. 6.Reinstall the parts followed the above steps. 1.4 down-foam 1.Refer to 1.1 remove front panel and back panel 2.Refer to 1.2 remove Electrical box cover. 3.Refer to 1.3 open up-air duct 4.remove 5pcs screws like this picture.
- Page 9 8.take out the down air duct foam. 9.Using a wrench loose screws which fix down- fan wheel,remove screw,down-fan wheel and washer in order 10.According to the above steps to remove the parts. 1.5 down-air duct bracket 1.Refer to 1.1 remove front panel and back panel 2.Refer to 1.2 remove electrical box cover 3.Refer to 1.3 remove up-fan duct.
- Page 10 1.6 Waterproof filter 1.Refer to 1.1 remove front panel and back panel 2.Refer to 1.2 remove electrical box cover 3.Refer to 1.3 remove up-fan duct. 4.Refer to 1.4 remove down-fan duct 5.Refer1.5 remove down-fan duct 6.Removed a waterproof filter screw fixed on the chassis. 7.Take out the filter like the picture 8.According to the above steps to remove the parts.
- Page 11 1.7 Water pump cover 1.Refer to 1.1 remove front panel and back panel 2.Refer to 1.2 remove electrical box cover 3.Refer to 1.3 remove up-fan duct. 4.Refer to 1.4 remove down-fan duct 5.Refer1.5 remove down-fan duct 6.Refer to 1.6 remove the filter. 7.Remove the two screws fixed on the pump.
- Page 12 2.1 Evaporator, condenser, compressor 1.Refer to 1 disassemble the various parts. 2.Remove the two screws fixed condenser. 3.Use a wrench to loosen the three screws fixed compressor, then remove the three compressor washer. 4.Take out Evaporator, condenser, compressor lie picture...
- Page 13 electrical parts PCB,transformer,and capacitance refer 1.1 to remove front & back panel refer 1.2 to remove electrical control box 3.remove 8 screws like picture 4.Remove the PCB, transformer, fan capacitor, compressor capacitor, 3.2 Power cord 1. Refer to 1.1 to remove the front panel and rear panel. 2.
- Page 14 6.take out the water fan upward 7.remove all parts per the above steps. fan motor 1.refer 1 to remove all parts 2.remove 4 screws fix fan motor 3.take the fan motor out upward 4.remove all parts as per the above steps 3.6 浮子开关...
- Page 15 2 refer to 3.2 to remove water pump motor remove the screws which fix microswitch remobe the float,microswitch and fixed shell refer to the above steps to remove all parts 4. Replacement of Cycle Parts Discharge the refrigerant system using a refrigerant recovery system.
- Page 16 5.refer to 1.6 to remove water-proof filter refer to 2.1 to remove screws fixed condenser 7. Discharge the gas by the gas reclaim system. 8. Weld the tube and capillary lined with the COND and take the COND up. 9. Reinstall the parts followed the above steps. 4.3 Caplliary 1.
- Page 17 5.Trouble Shooting Guide 1.Outside Dimensions 2.Piping System Following is a brief description of the important components and their functions in the refrigeration system. Refer to Figure 2 to follow the refrigeration cycle and the flow of the refrigerant in the cooling cycle.
