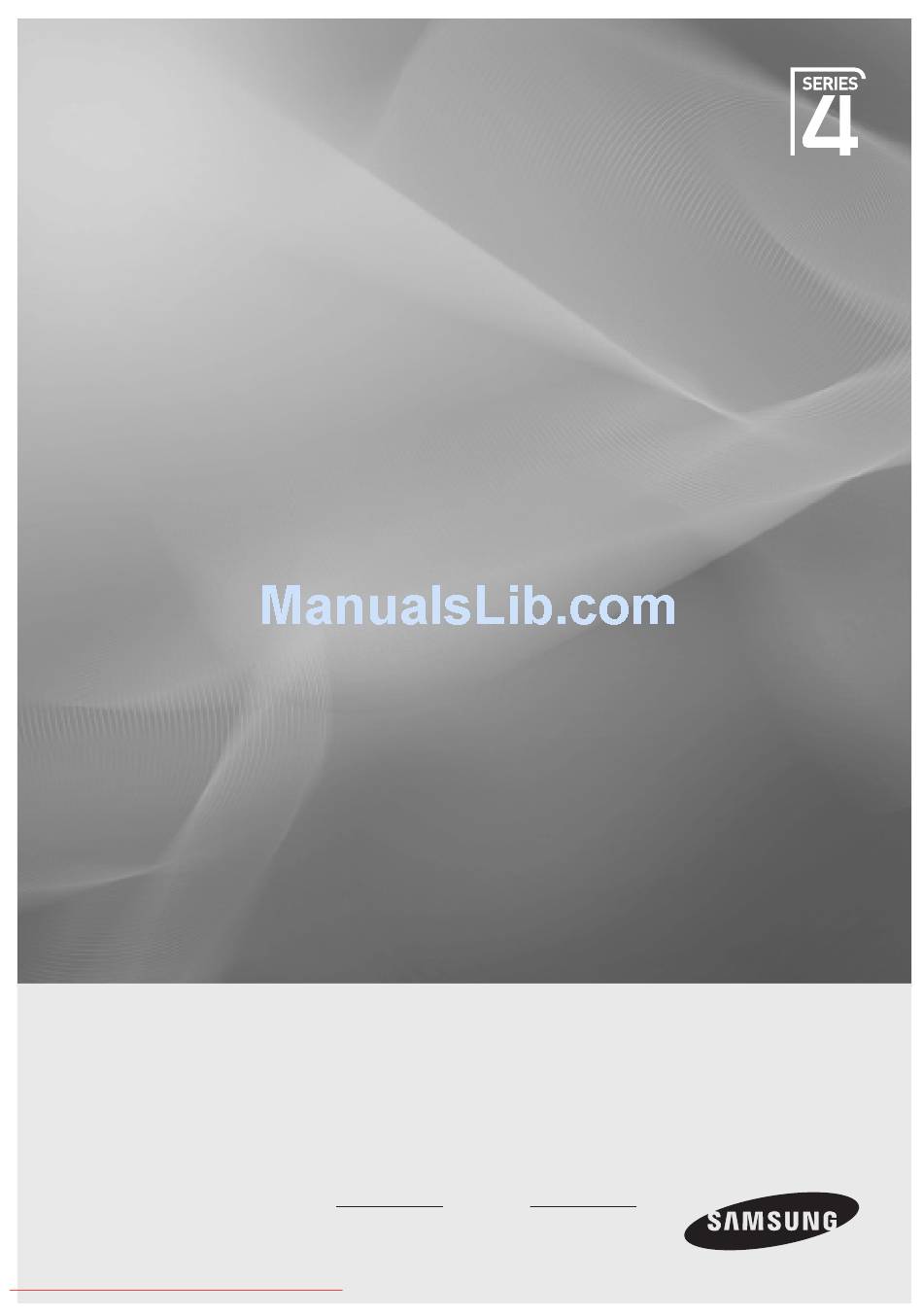

- Page 1 Plasma TV user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register Model Serial No. Downloaded From TV-Manual.com Manuals...
- Page 2 Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Country Customer Care Centre Web Site AUSTRALIA 1300 362 603 www.samsung.com/au 800-810-5858 400-810-5858 www.samsung.com/cn CHINA 010-6475 1880 HONG KONG : 3698-4698 www.samsung.com/hk...
-
Page 3: User Instructions
Failure to do so may cause a serious damage to your set. © 2009 Samsung Electronics Co., Ltd. All rights reserved. English - ... -
Page 4: Table Of Contents
Contents Connecting and Preparing Your TV Sound Control ■ Checking Parts ................4 ■ Changing the Sound Setting ........... 16 ■ Using the Stand-Base ............... 4 ■ Selecting the Sound Mode ............17 ■ How to assemble the Stand-Base (depending on the model) ... 4 Function Description ■... -
Page 5: Connecting And Preparing Your Tv
Connecting and Preparing Your TV Checking Parts Owner’s Instructions Remote Control/ Power Cord Cloth-Clean AAA Batteries (2ea) Warranty Card/Safety Guide Manual Cover-Bottom Holder-Ring (4ea) Screw (4ea) (Not available in all locations) (Refer to page 25) Using the Stand-Base Two or more people should carry the PDP. Never lay the PDP on the floor because of possible damage to the screen. -
Page 6: Viewing The Control Panel
Viewing the Control Panel Front Panel buttons Touch each button to The product colour and shape may vary depending on the model. operate. 1 SOURCE 4 < CH > Toggles between all the available input sources Press to change channels. In the on-screen menu, use the <... -
Page 7: Viewing The Connection Panel
Viewing the Connection Panel TV Rear Panel Cable Television Network The product colour and shape may vary depending on the model. Whenever you connect an audio or video system to your set, ensure that all elements are switched off. When connecting an external device, match the colour of the connection terminal to the cable. 1 SERVICE 1, 7 HDMI IN 1, (DVI) Connector for service. -
Page 8: Remote Control
Remote Control You can use the remote control up to a distance of about 23 feet from the TV. The performance of the remote control may be affected by bright light. Teletext Functions 1 POWER button (turns the TV on and off) 2 Exit from the teletext display 2 Selects the TV mode directly. -
Page 9: Installing Batteries In The Remote Control
Installing Batteries in the Remote Control 1. Lift the cover at the back of the remote control upward as shown in the figure. . Install two AAA size batteries. Make sure to match the ‘+’ and ‘–’ ends of the batteries with the diagram inside the compartment. -
Page 10: Viewing The Menus
Viewing the Menus 1. With the power on, press the MENU button. The main menu appears on the screen. The menu’s left side has icons: Picture, Sound, Channel, Setup, Input. . Press the ▲ or ▼ button to select one of the icons. Then press the ENTER E button to access the icon’s sub-menu. -
Page 11: Plug & Play Feature
Plug & Play Feature When the TV is initially powered on, basic settings proceed automatically and subsequently. The Screen Saver is activated if there is no remote control key input for longer than 1 minute while Plug & Play is running. The Screen Saver is activated if there is no operating signal for longer than 15 minutes. -
Page 12: Channel Control
Channel Control Storing Channels Area ❑ Channel You can change the desired area. Area : Asia/Europe Auto Store Manual Store Auto Store Channel List ❑ Sort Name Scans for all channels with active broadcast stations (and availability depends on your Fine Tune country) and stores them in the TV's memory. -
Page 13: Managing Channels
Managing Channels Using the Channel Manager, you can conveniently add/delete or lock/unlock channels. Channel Area : Asia/Europe Auto Store Channel List ❑ Manual Store Channel List Adding / Deleting channels Sort Name Using the Channel List, you can add or delete channels. Fine Tune Move to the ( ) field by pressing the ▲/▼/◄/►... -
Page 14: Picture Control
Picture Control Changing the Picture Settings Mode ❑ You can select the type of picture which best corresponds to your viewing requirements. Picture • Dynamic: Selects the picture for high-definition in a bright room. Mode : Standard Cell Light • Standard: Selects the picture for the optimum display in a normal environment. -
Page 15: Picture Options
Picture Options ❑ You can customize the additional picture settings to suit your preference. Picture Mode : Standard Colour Tone → → Cool / Normal / Warm1 / Warm Cell Light Contrast You can select the most comfortable colour tone to your eyes. Brightness Sharpness The adjusted values are stored according to the selected Picture mode. - Page 16 Screen Burn Protection Configures the Screen Burn Protection Options to prevent and reduce pixel burn. When an image remains in one position too long, it may cause a permanent burn on the screen. • Pixel Shift: To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology enables you to set picture movement up/down (Vertical Line) and side to side (Horizontal).
-
Page 17: Sound Control
Sound Control Changing the Sound Setting Mode ❑ Sound You can select the type of special sound effect to be used when watching a given Mode : Standard Equalizer broadcast. SRS TruSurround HD : Off Auto Volume : Off • Standard: Selects the normal sound mode. -
Page 18: Selecting The Sound Mode
Sound Select ❑ When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture. Sound • Main: Use to listen to the sound of the main picture. Mode : Standard Equalizer • Sub: Used to listen to the sound of the sub picture. SRS TruSurround HD : Off Auto Volume... -
Page 19: Function Description
Function Description Configuring the Setup Menu Language ❑ It is variable depending on the model. When you start using the television for the Setup first time, you must select the language which will be used for displaying menus and Plug & Play indications. -
Page 20: Viewing The Picture In Picture (Pip)
Viewing the Picture in Picture (PIP) You can display a sub picture within the main picture of set programme or video input. In Setup this way, you can watch the picture of set programme or video input from any connected Plug &... -
Page 21: Setting The Time
Setting the Time Setting the clock is necessary in order to use the various timer features of the TV. The current time will appear every time you press the INFO button. Setup If you disconnect the power cord, you have to set the clock again. Plug &... -
Page 22: Source List / Edit Name
Source List / Edit Name Source List ❑ Use to select TV or other external input sources such as DVD players or Cable Box / Input Satellite receivers (Set-Top Box) connected to the TV. Use to select the input source of Source List your choice. -
Page 23: Pc Display
Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.) 1. First, click on ‘Control Panel’ on the Windows start menu. -
Page 24: Recommendations For Use Teletext Feature
Recommendations for Use Teletext Feature Most television stations provide written information services via Teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons. For teletext information to be displayed correctly, channel reception must be stable. -
Page 25: Wall Mount Kit Specifications (Vesa)
Do not use fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions. -
Page 26: Preparing Before Installing Wall- Mount On The Wall
1. Install the Wall Mount with a torque range of 15kgf·cm or less. Use care as the parts can be damaged if the torque is out of the specified range. [② . Accessory Kit contains Holder–Ring ] for installing other company’s Wall-Mount on Samsung TV. (Case B) [① Screw down the hole ] when installing wall-mount on the wall. -
Page 27: Troubleshooting
Troubleshooting Before contacting the Samsung after-sales service, perform the following simple checks. If you cannot solve the problem using the instructions below, note the model and serial number of the television and contact your local dealer. No sound or picture •... -
Page 28: Specifications
Specifications The descriptions and characteristics in this booklet are given for information purposes only and are subject to modification without notice. Model Name PS4B40 PS50B40 Screen Size (Diagonal) 42 inch 50 inch PC Resolution (Optimum) 1024 x 768 @ 60 Hz 1360x768 @ 60 Hz Sound (Output) 10 W x 2...
