Fujitsu ARYG30LMLE Service Manual
Hide thumbs
Also See for ARYG30LMLE:
- Design & technical manual (343 pages) ,
- Service manual (85 pages)
Advertisement
Table of Contents
SPLIT TYPE
AIR CONDITIONER
DUCT TYPE (50Hz)
Indoor unit
ARYG30LMLE
ARYG36LMLE
CONTENTS
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . .
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . .
REFRIGERANT SYSTEM DIAGRAM. . . . .
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . .
INDOOR PCB CIRCUIT DIAGRAM . . . . . .
ERROR DETECTION . . . . . . . . . . . . . . . .
ACCESSORIES . . . . . . . . . . . . . . . . . . . .
Outdoor unit
AOYG30LETL
AOYG36LETL
1
2
3
4
5
8
. . . .
13
15
. . . . . . . . . . . . . .
17
. . . . . . . . . . . .
21
Advertisement
Table of Contents
Related Manuals for Fujitsu ARYG30LMLE
Summary of Contents for Fujitsu ARYG30LMLE
-

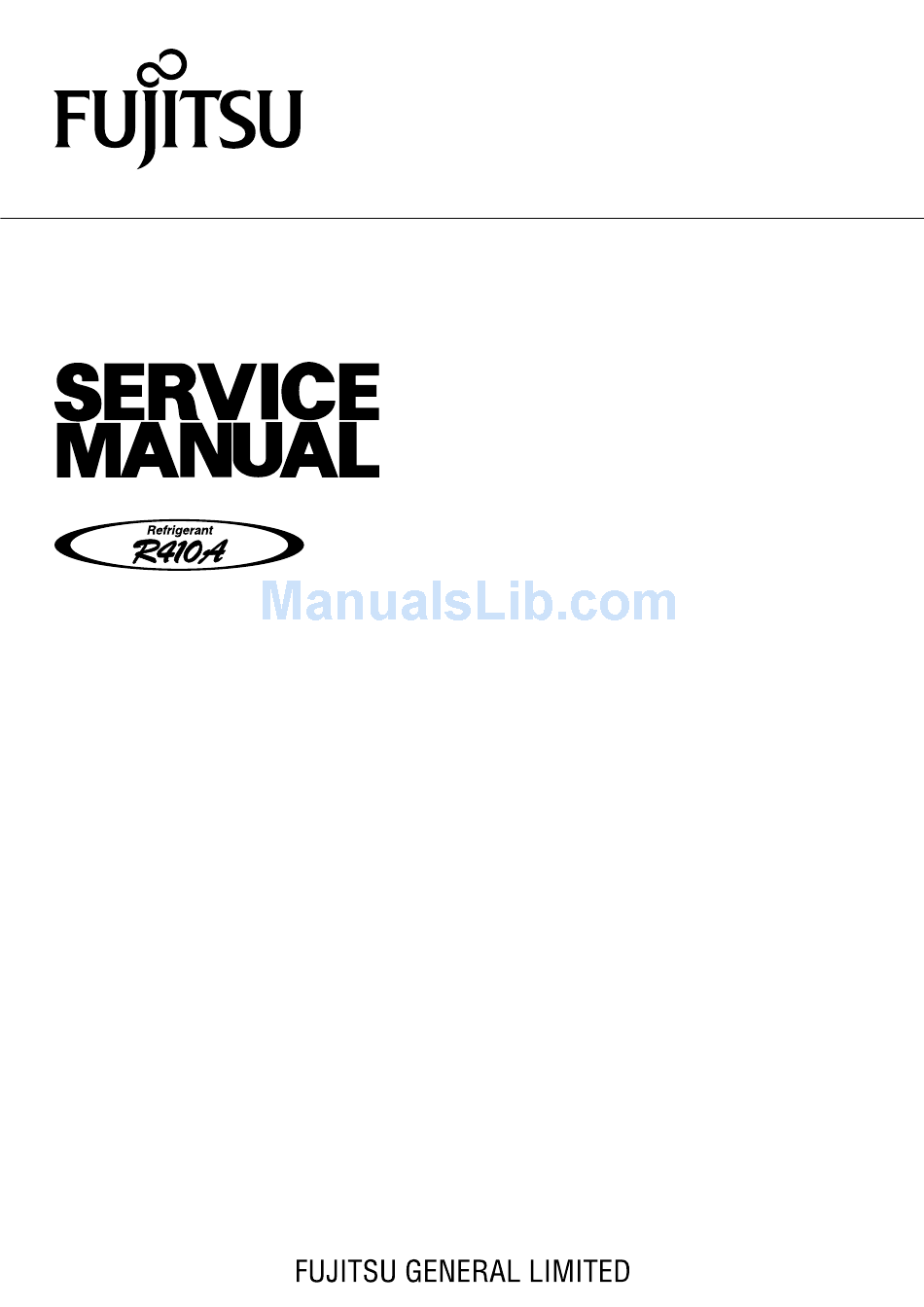

Page 1: Table Of Contents
SPLIT TYPE AIR CONDITIONER DUCT TYPE (50Hz) Indoor unit Outdoor unit ARYG30LMLE AOYG30LETL ARYG36LMLE AOYG36LETL CONTENTS SPECIFICATIONS....DIMENSIONS ..... . . -
Page 2: Specifications
NOISE LEVEL TYPE Cooling & Heating High (cooling) 39 dB 39 dB High (heating) 42 dB 42 dB INDOOR UNIT ARYG36LMLE ARYG30LMLE OUTDOOR UNIT Medium 35 dB 35 dB AOYG30LETL AOYG36LETL INDOOR UNIT COOLING CAPACITY 8.5 kW 9.4 kW 30 dB 30 dB 10.0 kW... -
Page 3: Dimensions
DIMENSIONS (Unit : mm) INDOOR UNIT OUTDOOR UNIT Drain pipe diameters inside : 35.7 mm outside : 38.1 mm 1,177 Air Flow 1,015 1,135 2013.01.31... -
Page 4: Refrigerant System Diagram
Refrigerant direction REFRIGERANT : Cool SYSTEM DIAGRAM : Heat OUTDOOR UNIT INDOOR UNIT Pressure Refrigerant Pipe Check Valve 15.88mm (5/8") High Pressure Charging Switch Valve 4-way Condenser Evaporator Valve Accumulator Compressor Refrigerant Pipe 9.52mm (3/8") Strainer Strainer Expansion Valve Charging Valve 2012.07.18... -
Page 5: Circuit Diagram
CIRCUIT DIAGRAM THERMISTOR GRAY INDOOR UNIT OUTDOOR UNIT GRAY ( PIPE TEMP. ) BLACK THERMISTOR BLACK ( ROOM TEMP. ) HIGH PRESSURE SWITCH CN90 MAIN PCB THERMISTOR BROWN CN64 (COMPRESSOR) CN42 CN40 CN200 CN400 BROWN CN12 BLUE THERMISTOR MAIN PCB CN62 (OUTDOOR TEMP.) BLUE... -
Page 6: Indoor Pcb Circuit Diagram
THERMISTOR BLACK B02B-XASK-1-A BLACK ( ROOM TEMP. ) WHITE B02B-XAYK-1-A CONTROL UNIT YELLOW THERMISTOR GRAY B5P-SHF-1AA B02B-XAKK-1-A GRAY ARYG30LMLE : EZ-0121LHSE ( PIPE TEMP. ) WHITE BLACK ARYG36LMLE : EZ-0121MHSE 15-1 15-2 CN15 15-3 B06B-XASK-1-A 15-4 15-5 WHITE 15-6 2(N) - Page 7 INDOOR UNIT MAIN PCB ARYG30LMLE : K06AK-120CHSE-C1 ARYG36LMLE : K06AK-120DHSE-C1 R1 - R3 B02B-XASK-1-A 1SS355 10k <1/10W> x 3 THERMISTOR ( ROOM TEMP. ) I C8 FLOAT SWITCH 13.5V NJM7812 B03B-PASK-1 <1/10W> 1.0k B02B-XAYK-1-A B03B-XARK-1-A <F> <1/10W> <1/10W> DC SUPPLY 1.0k...
- Page 8 NORMAL COIL CN108 B2P3-VH-B R103 340V D108 13.5V D2FL20U <RS-2W> T101 C108 ZFT22B03-C 4700p C113 R111 <FNS> I C26-14 1000/ R104 <1/10W> 330k D102 <2W> 1SR139-600 C114 F101 0.01 3.15A <KH> C109 250V D107 220p C115 Q101 D106 RD16 <B> D101 0.01 2SC5354...
-
Page 9: Outdoor Pcb Circuit Diagram
OUTDOOR PCB CIRCUIT DIAGRAM INVERTER ASSEMBLY AOYG30LETL : EZ-0121FHUE AOYG36LETL : EZ-0121GHUE UL1015 AWG14 WHITE EMI FILTER UL1015 POWER SOURCE UL1015 ZCAT2132-1130 AWG14 AWG14 AC230V BLACK BLACK UL1015 50Hz UL3271 AWG14 250V 25A TM101 AWG20 ORANGE UL1015 AWG20 FILTER PCB WHITE I NDOOR UNIT UL1015... - Page 10 CN200 FC51FL x 2 1-1747052-2 FH200 FH201 1SS355 DC VOLT I N R601 F201 1.0k R603 I C5 3.15A - 250V 150k 2200p CT600 <1/10W> 220/ OUTDOOR UNIT 7818 <1/10W> <2W> <E> CT-1B C211 P-AN-CT MAIN PCB TM601 C601 560k 450V D1FL20U 0.1 <F>...
- Page 11 TM101 ORANGE C161 OUTDOOR UNIT <X7R> TRANSISTOR PCB TM102 BROWN D100 BLACK ( I P M ) LL25XB60 AOYG30LETL : K07BT-0901HUE-TR0 CN303 AOYG36LETL : K07BT-0900HUE-TR0 1971032-5 I C70-2 WHITE BA2903F-E2 W306 I P M-GND WHITE TM301 YELLOW R284, R285, R302 0.04 <5W>...
- Page 12 PTC THERMISTOR R101 CT OUT ZPR0RCH400 OUTDOOR UNIT VA100 BLACK AOYG30LETL 470V GRAY <TNR> C104, C105 FILTER PCB 0.022 VA101 <YE> 470V K05CW-0901HUE-FL0 <TNR> C101 L102 BLACK ORANGE POWER SOURCE 0.033 N200500K1D7C C106 C100 C103 <YE> C108 AC230V K101 C102 DW12D1 50Hz <LE>...
- Page 13 OUTDOOR UNIT WHITE YELLOW AOYG30LETL CAPACITOR PCB C201 C203 R200 K05FB-0901HUE-P0 220k 660/ 660/ <2W> 450V 450V BLUE VIOLET POWER_G AOYG36LETL WHITE YELLOW CAPACITOR PCB K05FB-0900HUE-P0 C200 - C202 660/ 450V BLUE VIOLET POWER_G 2012.12.06...
-
Page 14: Error Detection
ER R OR D ETEC TION Indoor unit Indoor unit Wired Wired OPERATION TIMER ECONOMY remote Description OPERATION TIMER ECONOMY remote Description lamp lamp lamp lamp lamp lamp control control (green) (orange) (green) (green) (orange) (green) Discharge temp. sensor error Serial communication error If you use a wireless remote control, the lamp on the photo detector unit will output error codes... - Page 15 OUTDOOR UNIT PUMP DOWN SW SPECIAL INSTALLATION SETTING PUMP DOWN (Refrigerant collecting operation) Perform the following procedures to collect the refrigerant when moving the indoor unit or the outdoor unit. (1) Press the push-button switch on the circuit board once. The LED on the circuit board starts flashing (one second ON/one se-cond OFF).
-
Page 16: Parts (Indoor Unit)
PARTS INDOOR UNIT Ref. Description Part number Remote Control 9318593013 Intake Cover Sub Assy 9374512010 Main Panel Sub Assy 9374511013 Intake Frame Assy 9374216017 Bracket Pipe Sub Assy 9374514014 Casing A 9374233021 Casing B 9374234028 Fan Motor 9603213015 Control Cover A Sub Assy 9374516025 2013.02.06... - Page 17 Ref. Description Part number Cabinet R Sub Assy 9374508020 INDOOR UNIT Cabinet L Sub Assy 9374509010 Outlet Panel Sub Assy 9374510016 Drain Pan Sub Assy 9374513017 Evaporator Sub Assy 9374517312 Base Sub Assy 9374504015 Sirocco Fan Assy 9356531046 Main PCB (30) 9709245217 Main PCB (36) 9709245224...
-
Page 18: Parts (Outdoor Unit)
PARTS OUTDOOR UNIT Ref. Description Part number Protective Net 9375381011 Thermo Holder 9375211011 Top Panel Sub Assy 9374417032 Front Panel Sub Assy 9374414079 Service Panel Sub Assy 9374415052 Emblem Rear 9351355005 Right Panel Sub Assy 9374416127 Valve Cover 9374174010 Fan Motor 9602843015 Propeller Fan Assy 9366378020... - Page 19 OUTDOOR UNIT Ref. Description Part number Transistor PCB (IPM) (30) 9707669077 Transistor PCB (IPM) (36) 9707669060 ACTPM 9707592016 Choke Coil (30) 9900390020 Choke Coil (36) 9900223014 Capacitor PCB (30) 9707257052 Capacitor PCB (36) 9707257045 Main PCB (30) 9707667868 Main PCB (36) 9707667875 Filter PCB (30) 9707128215...
- Page 20 OUTDOOR UNIT Ref. Description Part number 3-way Valve Assy 9377958013 3-way Valve Assy 9377959010 Compressor 9810135001 Accumulator 9385005006 Solenoid 9970055034 Expansion Valve Coil 9900057039 2013.02.27...
- Page 21 OUTDOOR UNIT Ref. Description Part number Expansion Valve Assy 9370947144 Condenser A Sub Assy 9374420308 Condenser A Assy 9374433056 Inlet Pipe (Cond) A Assy 9373461067 Outlet Pipe (Cond) A Assy 9374266104 Strainer Assy 9372524015 4-way Valve Assy 9374425198 4-way Valve 9900164010 Check Joint Assy 9372802038...
-
Page 22: Accessories
A C C ESSOR IES INDOOR UNIT Name and Shape Q'ty Application For suspending the indoor Hanger unit from ceiling Special nut A For suspending the indoor (large flange) unit from ceiling Special nut B (small flange) Coupler heat For indoor side pipe joint insulation (large) (large pipe) Coupler heat... - Page 23 OPTIONAL PARTS Name and Shape Model name Name and Shape Model name 40 mm Square flange UTD-SF045T Drain pump unit UTZ-PX1NBA (P/N 9098180007) (P/N 9052978008) 1065 mm Flexible duct UTD-RD202 Wired remote control UTY-RNNYM Unit control is performed by wired remote control (P/N 9074165004) 200 mm L 2 m...
