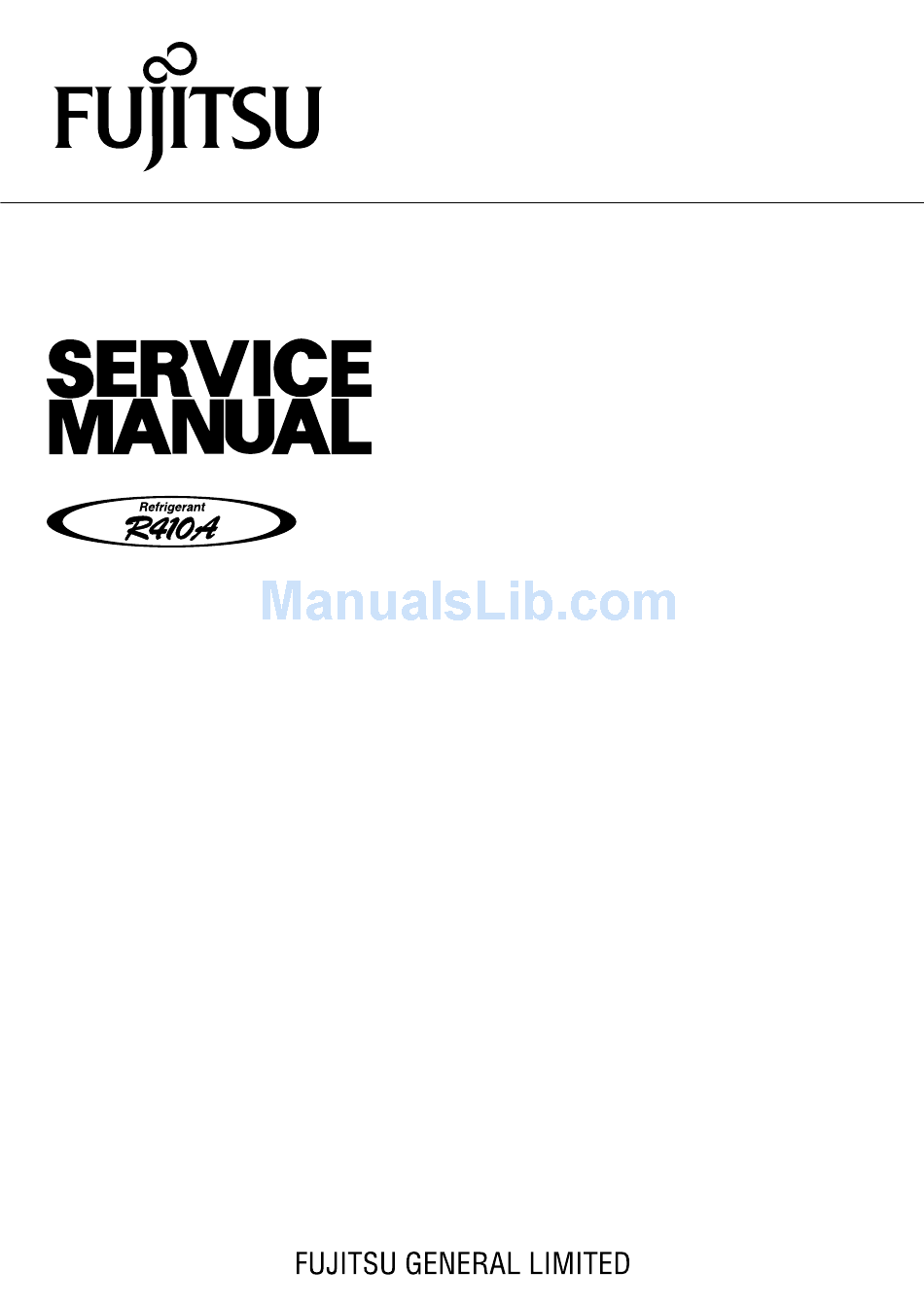

Fujitsu AUYG36LRLE Service Manual
  1. Manuals
  2. Brands
  3. Fujitsu Manuals
  4. Air Conditioner
  5. AUYG36LRLE
  6. Service manual

Fujitsu AUYG36LRLE Service Manual

Cassette type (50hz)
Hide thumbs Also See for AUYG36LRLE:

Advertisement

Table of Contents

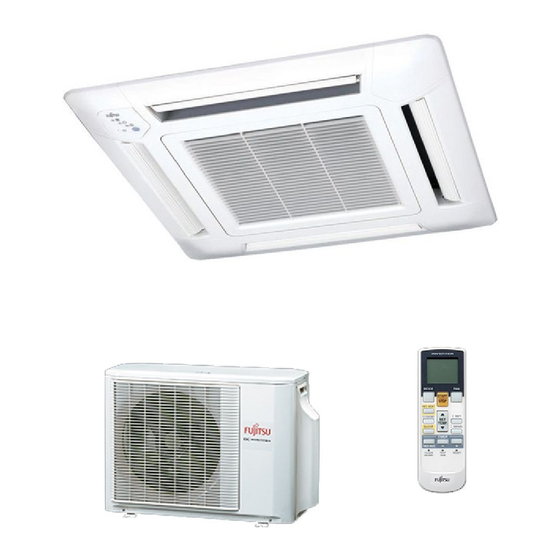

SPLIT TYPE
AIR CONDITIONER
CASSETTE TYPE (50Hz)
Indoor unit
AUYG30LRLE
AUYG36LRLE
CONTENTS
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . .
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . .
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . .
ERROR DETECTION . . . . . . . . . . . . . . . .
ACCESSORIES . . . . . . . . . . . . . . . . . . . .
Outdoor unit
AOYG30LETL
AOYG36LETL
1
2
3
4
5
9
. . .
14
16
. . . . . . .
19
. . . . . . . . . . . . . .
23
. . . . . . . . . . . .
27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUYG36LRLE and is the answer not in the manual?

Questions and answers

Related Manuals for Fujitsu AUYG36LRLE

Summary of Contents for Fujitsu AUYG36LRLE

  • Page 1: Table Of Contents

    Indoor unit Outdoor unit AUYG30LRLE AOYG30LETL AUYG36LRLE AOYG36LETL CONTENTS SPECIFICATIONS....DIMENSIONS ..... . .

  • Page 2: Specifications

    SPECIFICATIONS ELECTRICAL DATA COMPRESSOR AND REFRIGERANT Cooling & Heating Hermetic type, TYPE Inverter, 6 poles, COMPRESSOR TYPE INDOOR UNIT AUYG30LRLE AUYG36LRLE DC motor, Twin Rotary DECORATION PANEL UTG-UGYA-W N-TF30ND1A DISCRIMINATION OUTDOOR UNIT AOYG30LETL AOYG36LETL 15.3 kg WEIGHT (with oil) 8.5 kW 10.0 kW...
  • Page 3 DIMENSIONS (Unit : mm) Drain pipe OUTDOOR UNIT INDOOR UNIT DECORATION PANEL Liquid pipe Gas pipe Drain pipe diameter Inside : 20 mm Outside : 26 mm Bottom view Bottom view Top view Air Flow 795 (Hanging bolt position) 2013.02.12...

  • Page 4: Refrigerant System Diagram

    Refrigerant direction REFRIGERANT : Cool SYSTEM DIAGRAM : Heat OUTDOOR UNIT INDOOR UNIT Pressure Refrigerant Pipe Check Valve 15.88mm (5/8") High Pressure Charging Switch Valve 4-way Condenser Evaporator Valve Accumulator Compressor Refrigerant Pipe 9.52mm (3/8") Strainer Strainer Expansion Valve Charging Valve 2012.07.18...

  • Page 5: Circuit Diagram

    CIRCUIT DIAGRAM THERMISTOR BLACK INDOOR UNIT OUTDOOR UNIT BLACK ( PIPE TEMP. ) THERMISTOR LOUVER ( ROOM TEMP. ) HIGH PRESSURE SWITCH CN90 ( RIGHT / LEFT ) MAIN PCB THERMISTOR BROWN ORANGE CN64 ( COMPRESSOR TEMP. ) INDICATOR PCB CN42 CN40 CN200...

  • Page 6: Indoor Pcb Circuit Diagram

    INDOOR PCB CIRCUIT DIAGRAM THERMISTOR ( ROOM TEMP. ) B02B-XASK-1-A CONTROL UNIT WHITE AUYG30LRLE : EZ-0121PHSE B02B-XAYK-1-A YELLOW AUYG36LRLE : EZ-0121RHSE BLACK THERMISTOR ( PIPE TEMP. ) B02B-XAKK-1-A BLACK BLACK B5P-SHF-1AA WHITE TERMINAL INDICATOR PCB 2 (N) 15-1 15-2 CN15...
  • Page 7 INDOOR UNIT MAIN PCB AUYG30LRLE : K06AK-120EHSE-C1 AUHG36LRLE : K06AK-120FHSE-C1 R1 - R3 B02B-XASK-1-A 1SS355 10k <1/10W> x 3 THERMISTOR ( ROOM TEMP. ) I C8 FLOAT SWITCH 13.5V NJM7812 B03B-PASK-1 <1/10W> B02B-XAYK-1-A 1.0k B03B-XARK-1-A <F> <1/10W> <1/10W> DC SUPPLY 1.0k 1.0k 49.9k...
  • Page 8 R103 340V D108 13.5V D2FL20U <RS-2W> T101 C108 ZFT22B03-C 4700 <FNS> C113 R111 I C26-14 1000/ R104 <1/10W> 330k D102 <2W> F101 1SR139-600 3.15A C114 250V 0.01 <KH> C109 D107 220p L101 Q101 C115 D106 RD16 FC51FL x 2 <BN> D101 0.01 LF101...
  • Page 9 INDOOR UNIT INDICATOR PCB ( OPTION ) K06AG-1000HSE-D0 R201 220 <1/4W> D201 SLR-325MC GREEN CN201 S07B-PASK-2 R202 390 <1/4W> D202 SLR-325DC ORANGE R203 220 <1/4W> D203 SLR-325MC GREEN TO MAIN PCB C201 C202 <F> SW201 EVQPAG04K PHA201 P I C-37143TH5 2013.01.21...

  • Page 10: Outdoor Pcb Circuit Diagram

    OUTDOOR PCB CIRCUIT DIAGRAM INVERTER ASSEMBLY AOYG30LETL : EZ-0121FHUE AOYG36LETL : EZ-0121GHUE UL1015 AWG14 WHITE EMI FILTER UL1015 POWER SOURCE UL1015 ZCAT2132-1130 AWG14 AWG14 AC230V BLACK BLACK UL1015 50Hz UL3271 AWG14 250V 25A TM101 AWG20 ORANGE UL1015 AWG20 FILTER PCB WHITE I NDOOR UNIT UL1015...
  • Page 11 CN200 FC51FL x 2 1-1747052-2 FH200 FH201 1SS355 DC VOLT I N R601 F201 1.0k R603 I C5 3.15A - 250V 150k 2200p CT600 <1/10W> 220/ OUTDOOR UNIT 7818 <1/10W> <2W> <E> CT-1B C211 P-AN-CT MAIN PCB TM601 C601 560k 450V D1FL20U 0.1 <F>...
  • Page 12 TM101 ORANGE C161 OUTDOOR UNIT <X7R> TRANSISTOR PCB TM102 BROWN D100 BLACK ( I P M ) LL25XB60 AOYG30LETL : K07BT-0901HUE-TR0 CN303 AOYG36LETL : K07BT-0900HUE-TR0 1971032-5 I C70-2 WHITE BA2903F-E2 W306 I P M-GND WHITE TM301 YELLOW R284, R285, R302 0.04 <5W>...
  • Page 13 PTC THERMISTOR R101 CT OUT ZPR0RCH400 OUTDOOR UNIT VA100 BLACK AOYG30LETL 470V GRAY <TNR> C104, C105 FILTER PCB 0.022 VA101 <YE> 470V K05CW-0901HUE-FL0 <TNR> C101 L102 BLACK ORANGE POWER SOURCE 0.033 N200500K1D7C C106 C100 C103 <YE> C108 AC230V K101 C102 DW12D1 50Hz <LE>...
  • Page 14 OUTDOOR UNIT WHITE YELLOW AOYG30LETL CAPACITOR PCB C201 C203 R200 K05FB-0901HUE-P0 220k 660/ 660/ <2W> 450V 450V BLUE VIOLET POWER_G AOYG36LETL WHITE YELLOW CAPACITOR PCB K05FB-0900HUE-P0 C200 - C202 660/ 450V BLUE VIOLET POWER_G 2012.12.06...

  • Page 15: Error Detection

    ER R OR D ETEC TION Indoor unit Indoor unit Wired Wired OPERATION TIMER ECONOMY remote Description OPERATION TIMER ECONOMY remote Description INDOOR UNIT lamp lamp lamp lamp lamp lamp control control (green) (orange) (green) (green) (orange) (green) and WIRED REMOTE CONTROL Discharge temp.
  • Page 16 OUTDOOR UNIT PUMP DOWN SW SPECIAL INSTALLATION SETTING PUMP DOWN (Refrigerant collecting operation) Perform the following procedures to collect the refrigerant when moving the indoor unit or the outdoor unit. (1) Press the push-button switch on the circuit board once. The LED on the circuit board starts flashing (one second ON/one se-cond OFF).

  • Page 17: Parts (Decoration Panel)

    PARTS DECORATION PANEL UTG-UGYA-W Ref. Description Part number Intake Grille Assy 9378565012 Intake Grille 9378249011 Long Life Filter 9378252011 Filter Guide 9378253018 Hook Bracket 9378435018 Grille Hook 9378250017 2013.02.13...
  • Page 18 DECORATION PANEL UTG-UGYA-W Ref. Description Part number Decoration Panel 9378242012 Corner Panel A 9378243019 Corner Panel (FUJITSU) 9378243026 Panel Cover A 9378261013 Panel Cover B 9378262010 Drain Cover 9378359017 2013.02.13...
  • Page 19 DECORATION PANEL UTG-UGYA-W Ref. Description Part number Flap 9378254015 Poli Slider 9375541019 Joint C 9378357013 Step motor 9900467005 Gear A 9378256019 Motor Holder 9378255012 Joint A 9378258013 Joint B 9378259010 Gear B 9378257016 Joint Shaft 9378260016 Flap Spring 9378356016 2013.02.13...

  • Page 20: Parts (Indoor Unit)

    PARTS INDOOR UNIT Ref. Description Part number Bell Mouth 9378227019 Terminal Wire Cover 9378548015 Hook R 9378197015 Hook L 9378198012 2013.02.13...
  • Page 21 INDOOR UNIT Ref. Description Part number Float Switch Sub Assy 9378593015 Sensor Holder 9378329010 Float Switch 9900465018 Drain Pump Sub Assy 9378592018 Pump Assy 9900464011 Drain Pump Holder B 9375518011 Pump Rubber 9378426016 Drain Hose 9378212015 Drain Port 9378213012 Drain Pan Assy 9378207011 Drain Hose 9379665001...
  • Page 22 INDOOR UNIT Ref. Description Part number Evaporator Total Assy 9378580015 Top Plate Assy 9378395015 Cabinet A Sub Assy 9378594012 Cabinet B Sub Assy 9378595019 Cabinet C Sub Assy 9378570016 Turbo Fan Assy 9378228016 Turbo Fan Washer 9378394018 Motor, DC Brushless 9602716005 Rubber (Motor) 9378223011...
  • Page 23 INDOOR UNIT Ref. Description Part number Power Supply PCB 9707398366 Main PCB (30) 9709245231 Main PCB (36) 9709245248 Terminal 3P 9306489045 Terminal 3P 9703345012 Thermistor Holder A 9378206014 Thermistor Holder B 9378330016 Room Thermistor 9900445010 Pipe Thermistor 9900470012 Remote Control 9318593013 2013.02.13...

  • Page 24: Parts (Outdoor Unit)

    PARTS OUTDOOR UNIT Ref. Description Part number Protective Net 9375381011 Thermo Holder 9375211011 Top Panel Sub Assy 9374417032 Front Panel Sub Assy 9374414079 Service Panel Sub Assy 9374415052 Emblem Rear 9351355005 Right Panel Sub Assy 9374416127 Valve Cover 9374174010 Fan Motor 9602843015 Propeller Fan Assy 9366378020...
  • Page 25 OUTDOOR UNIT Ref. Description Part number Transistor PCB (IPM) (30) 9707669077 Transistor PCB (IPM) (36) 9707669060 ACTPM 9707592016 Choke Coil (30) 9900390020 Choke Coil (36) 9900223014 Capacitor PCB (30) 9707257052 Capacitor PCB (36) 9707257045 Main PCB (30) 9707667868 Main PCB (36) 9707667875 Filter PCB (30) 9707128215...
  • Page 26 OUTDOOR UNIT Ref. Description Part number 3-way Valve Assy 9377958013 3-way Valve Assy 9377959010 Compressor 9810135001 Accumulator 9385005006 Solenoid 9970055034 Expansion Valve Coil 9900057039 2013.02.27...
  • Page 27 OUTDOOR UNIT Ref. Description Part number Expansion Valve Assy 9370947144 Condenser A Sub Assy 9374420308 Condenser A Assy 9374433056 Inlet Pipe (Cond) A Assy 9373461067 Outlet Pipe (Cond) A Assy 9374266104 Strainer Assy 9372524015 4-way Valve Assy 9374425198 4-way Valve 9900164010 Check Joint Assy 9372802038...

  • Page 28: Accessories

    ACCESSORIES INDOOR UNIT DECORATION PANEL Name and Shape Q'ty Application Name and Shape Q'ty Application Hexagon Screw Template For installing indoor unit For mounting decoration panel (Carton top) Screw Washer For installing indoor unit For installing grille holding wire Strap Coupler heat For installing corner panel For indoor side pipe joint...
  • Page 29 OPTIONAL PARTS Name and Shape Application Name and Shape Application Wired remote Wide panel UTY-RNNYM control Control unit on wall UTG-AGYA-W For ceiling hole Indoor unit 950 mm High functional UTY-RVNYM Panel wired remote 600 mm control 600 mm Panel spacer UTG-BGYA-W For making up difference 242 mm...
  • Page 30 1301G4160...
