1120 Hinge Caps - Lenovo ThinkPad P50 Hardware Maintenance Manual

Removal steps of the trackpad cable
When installing:
Ensure that the connector is attached firmly.

1120 Hinge caps

For access, remove these FRUs:
• "1010 Battery" on page 65
• "1020 Bottom cover" on page 66
• "1030 Storage drive" on page 66
• "1060 Keyboard" on page 73
• "1100 Keyboard bezel assembly" on page 81

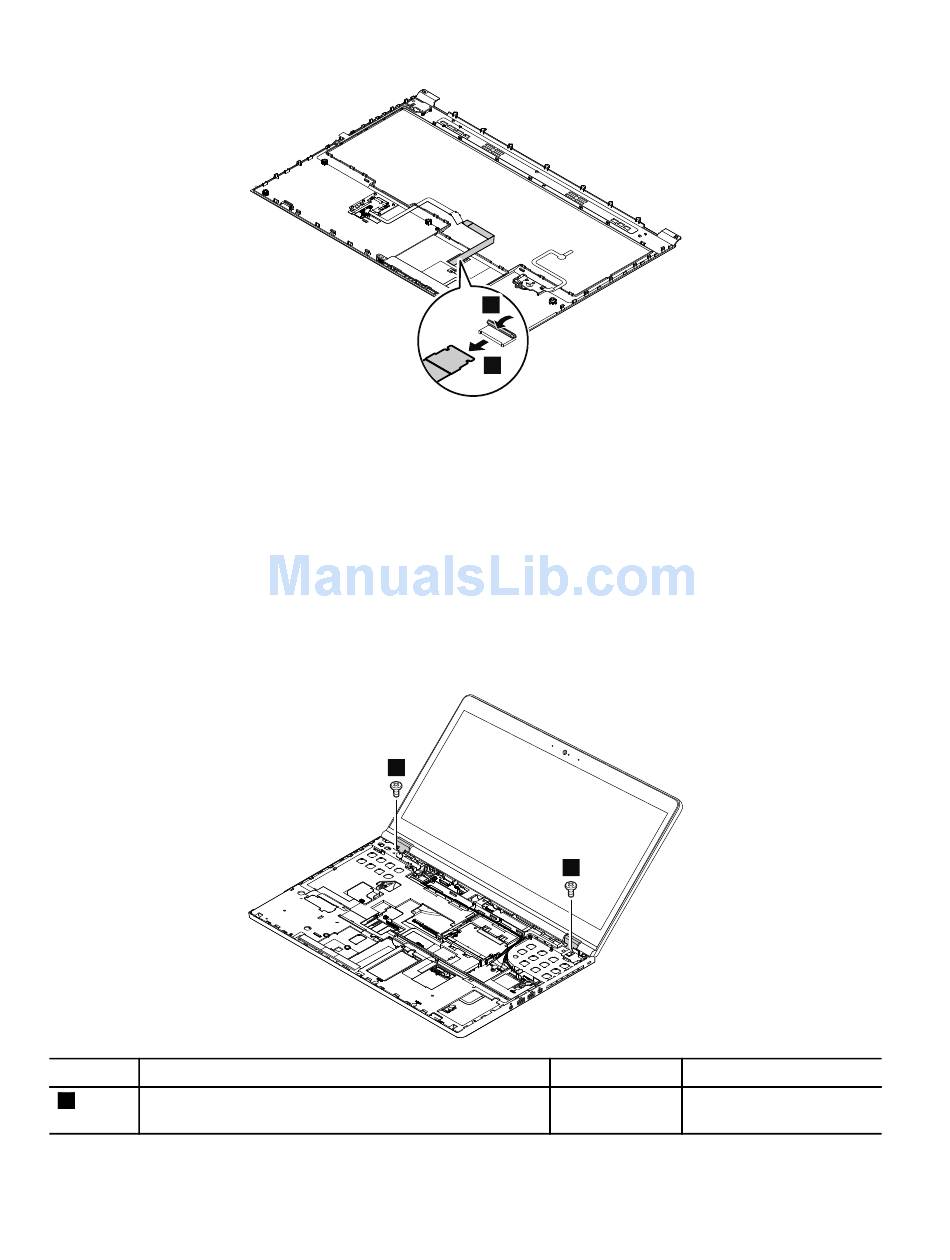

Removal steps of the hinge caps
Step Screw (quantity)
1
M2 × 3 mm, flat-head, nylon-coated (2)
When installing:
Open the LCD to 180 degrees from the relative position of the keyboard.
86
ThinkPad P50 Hardware Maintenance Manual
2
1
11
2
1
1
Color
Black
Torque
0.181 Nm
(1.85 kgf-cm)
