SETUP and CONNECTIONS

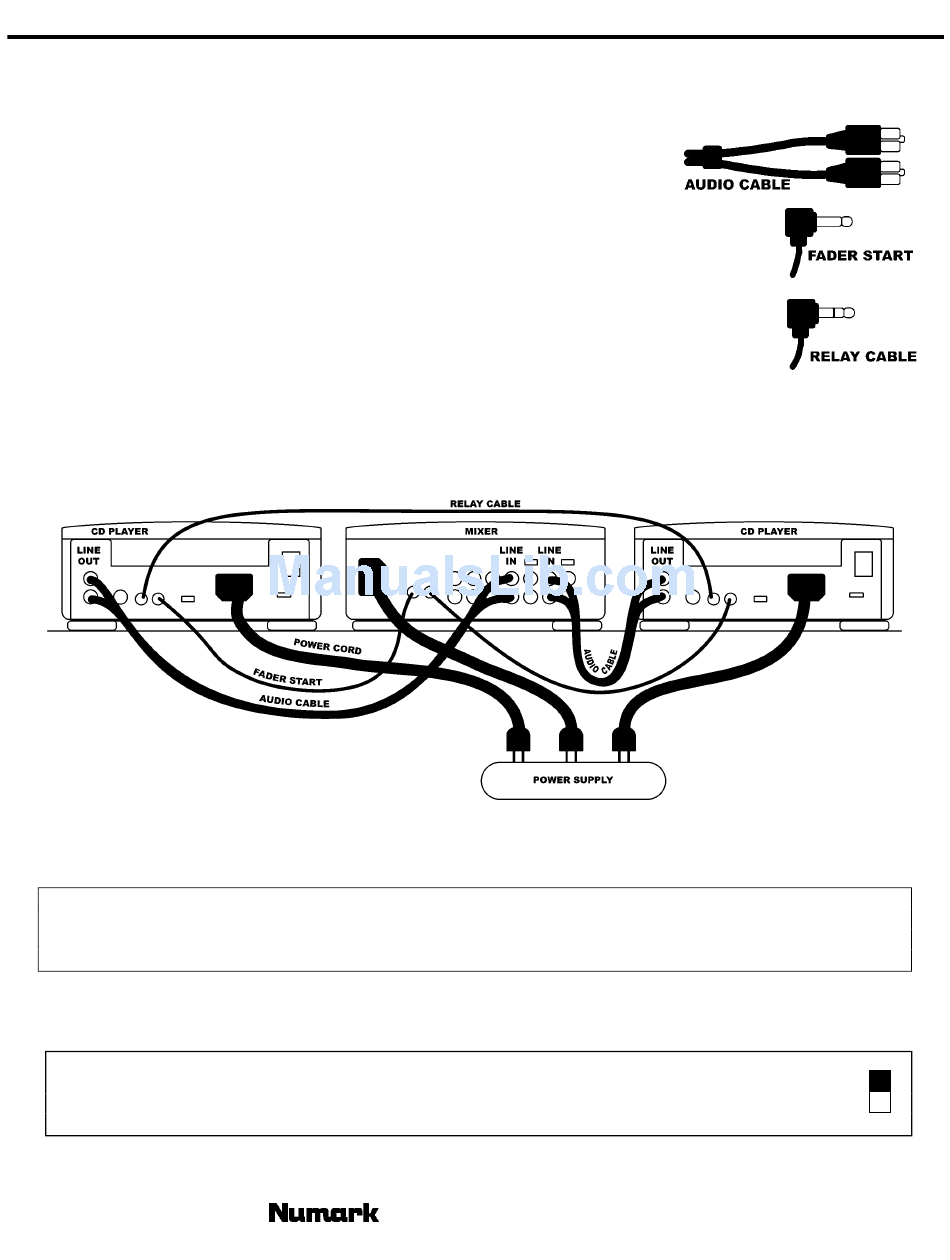

Typical connection with a mixer is illustrated below.
1. Find a level surface free of excessive vibration to place your equipment
2. Connect the line output connections using the supplied audio cable from the CD
Player to the line inputs of your mixer.
3. Connect Fader start cable. Attach your CD play to a similarly equipped DJ mixer.
(This connection can also be used with a remote switch)
If setting up 2 units, you can connect a relay cable between the units.
4.
(This cable is a standard 1/8" stereo – 1/8" stereo cable obtainable from you local music or
electronics store)
5. Connect IEC power cord to appropriate power source.
DIGITAL OUTPUTS: This CD player is specially equipped with digital outputs. The format is type 2, form 1,
also known as S/PDIF (Sony/Phillips Digital Interface Format). When the digital output is used the variable
pitch slider and pitch bend buttons or pitch wheel should not be used.
Note: If digital information is allowed to change in pitch, other devices may not read the digital output properly.
LINE VOLTAGE SELECTION
1) The desired voltage may be set with the VOLTAGE SELECTOR switch on the rear panel of the unit.
2) Do not move the VOLTAGE SELECTOR switch with excessive force as this may cause damage.
3) If the VOLTAGE SELECTOR switch does not move smoothly contact a qualified serviceman.
