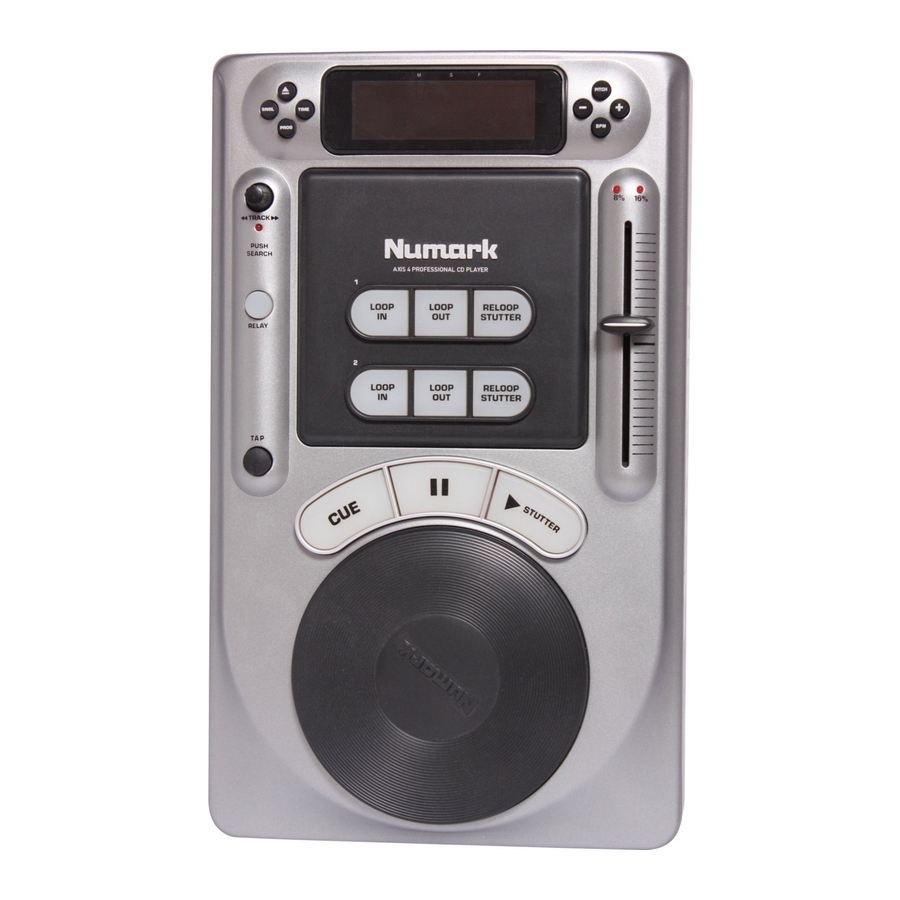

Numark Axis 4 - Tabletop CD Player Manual
![]()
BOX CONTENTS
- CD PLAYER
- POWER CABLE
- AUDIO CABLE
- FADER START CABLE
CD PLAYER QUICK SETUP
![]()
- Make sure all items listed on the front of this guide were in the box.
- READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT.
- Study this setup diagram.
- Place mixer in an appropriate position for operation.
- Make sure all devices are turned off and all faders and gain knobs are set to "zero"
- Connect all stereo input sources as indicated in the diagram, your microphone, and headphones
- Connect the stereo outputs to power amplifier(s), tape decks, and/or other audio sources.
- Plug all devices into AC power.
- Switch everything on in the following order.
- audio input sources (i.e. turntables or CD players)
- mixer
- last, any amplifiers or output devices
- When turning off, always reverse this operation by,
- turning off amplifiers
- mixer
- Go to http://www.numark.com for product registration.
More information about this product may be found at http://www.numark.com
FEATURES
![Numark - Axis 4 - Features Overview - Part 1 Features Overview - Part 1]()
- PLAY/STUTTER - Starts the music from the initial cue point.
- PAUSE - Pauses the music.
- CUE - Returns and pauses the music at the last set cue point. The cue point is where the music will begin when play is pressed. The cue point is the beginning of a track or can be set when play is started after the music is paused. For instance if the music is paused then Play is pressed, a new cue point is set. You can easily edit the cue point by turning the wheel during pause. As you rotate the wheel the music will sound. By stopping the wheel and pressing play a new point is set. Alternately pressing the PLAY button and the CUE button allows the CD to be played from the same position any number of times.
Note: Pressing cue 2 times plays music temporarily from this point until the button is released. - JOG WHEEL -
Cue Function: As explained under "CUE", when the music is paused and you rotate the wheel, music will sound. By pressing play a new cue point is set.
Search Function: As explained under "SEARCH BUTTON", when search is pressed and you rotate the wheel, the music will rapidly scan the music to find a cue point.
Pitch Bend Function: allows the user to temporarily change the speed of the music to align beats. When the beats of the music of the CD you wish to match is fast compared to the tempo of the other music rotate the jog wheel counter clockwise (to the left). When the CD is behind rotate the jog wheel clockwise (to the right). The pitch changes temporarily while the jog wheel is rotated. The faster you rotate the wheel the more pitch is changed.
Releasing the wheel results in a return to the original pitch. - LCD DISPLAY - Indicates all the functions, as they are occurring, with the CD.
- OPEN/CLOSE - Pressing will open or close the disc tray on the transport.
- SGL - To set play mode in single or continuous play.
- TIME - Controls display indication of time mode.
- PROGRAM - Depress this button and the unit will stop and the program indicator will light. Select each track to be programmed and press the PROGRAM button between selections. You can program up to 30 tracks. Press PLAY to start the program. To exit and erase program, either hold the program button down for more than 2 seconds while the unit is stopped, open the disc tray, or turn off the power.
- TRACK SELECT/SEARCH -
- Rotation – selects tracks
- Pressing while rotating – selects tracks +10
- Pressing once- Puts wheel in search mode.
- PITCH - actives the pitch slider and adjusts the amount of control the pitch slider has on the overall speed of music. Tapping the pitch will toggle slider between 8% and 16% pitch ranges. Holding the pitch for 3 seconds will deactivate the pitch control.
- BPM - Switches the mode of the display between showing the BPM and the percentage change in pitch.
- -,+ - Works as pitch bend and controls key and pitch functions.
- PITCH SLIDER - Controls the overall speed of the music.
- PITCH RANGE LED - Indicates current pitch range of the pitch slider
- LOOP IN - Used to set stutter and loop in points.
- LOOP OUT - Used to set loop out points and release the loop.
- RELOOP/STUTTER - Used for repeated play (stutter) from the loop in point, repeating a previously set, and hot start.
- RELAY - Used for setting Alternating play start between attached units.
- TAP - Tap this button with the beat of the music to determine the current Beats Per Minute (BPM).
- CD Illumination Light (unit front) – lights up the CD drawer and CD when open.
- CD Drawer (Unit Front) – Place your CDs you wish to play in here. This unit is designed to play commercially available CD and properly burned and finalized CDR. Due to variances on the specification of certain CD burners and CDs some discs home made CDs may not play properly.
![Numark - Axis 4 - Features Overview - Part 2 Features Overview - Part 2]()
- Power Switch - Turn on and turn off the machine with this button. The unit should always be shut down with this button first before any external power is removed.
Typically, it is recommended that the CD player is powered on before amplifiers and off after amplifiers to avoid an audio spike to be sent through your equipment. - IEC Power Plug Connector - Plug your supplied power cord in here.
- Voltage Selector - Set this switch to the voltage for your location.
- RCA Audio Connectors - Connect your CD player to your mixer from this line level output.
- Digital Output - The format is type 2, form 1, also known as S/PDIF (Sony/Phillips Digital Interface Format). In order to use the digital output you should not use variable pitch slider and the pitch bend buttons. If you adjust the pitch, other devices may not read the digital output properly because the sampling rate changes
- Relay Connector - If you wish to use the relay function plug in your 3.5mm stereo control cables into here and then into your other unit. The cable must be a stereo style plug for the units to work properly
- Remote Start Connector – Use this connector to plug into your fader start compatible mixer or remote switch. This function is always active. To use this connector for fader start, connect the supplied fader start cable to a fader start compatible mixer. Every time you move the crossfader on the mixer over to the side that the unit is on, it will automatically start playing. When you move the fader away from that side, the unit will stop. Moving the fader back to the unit side will start play again.
