Pro Install Hands-Free Car Kit for

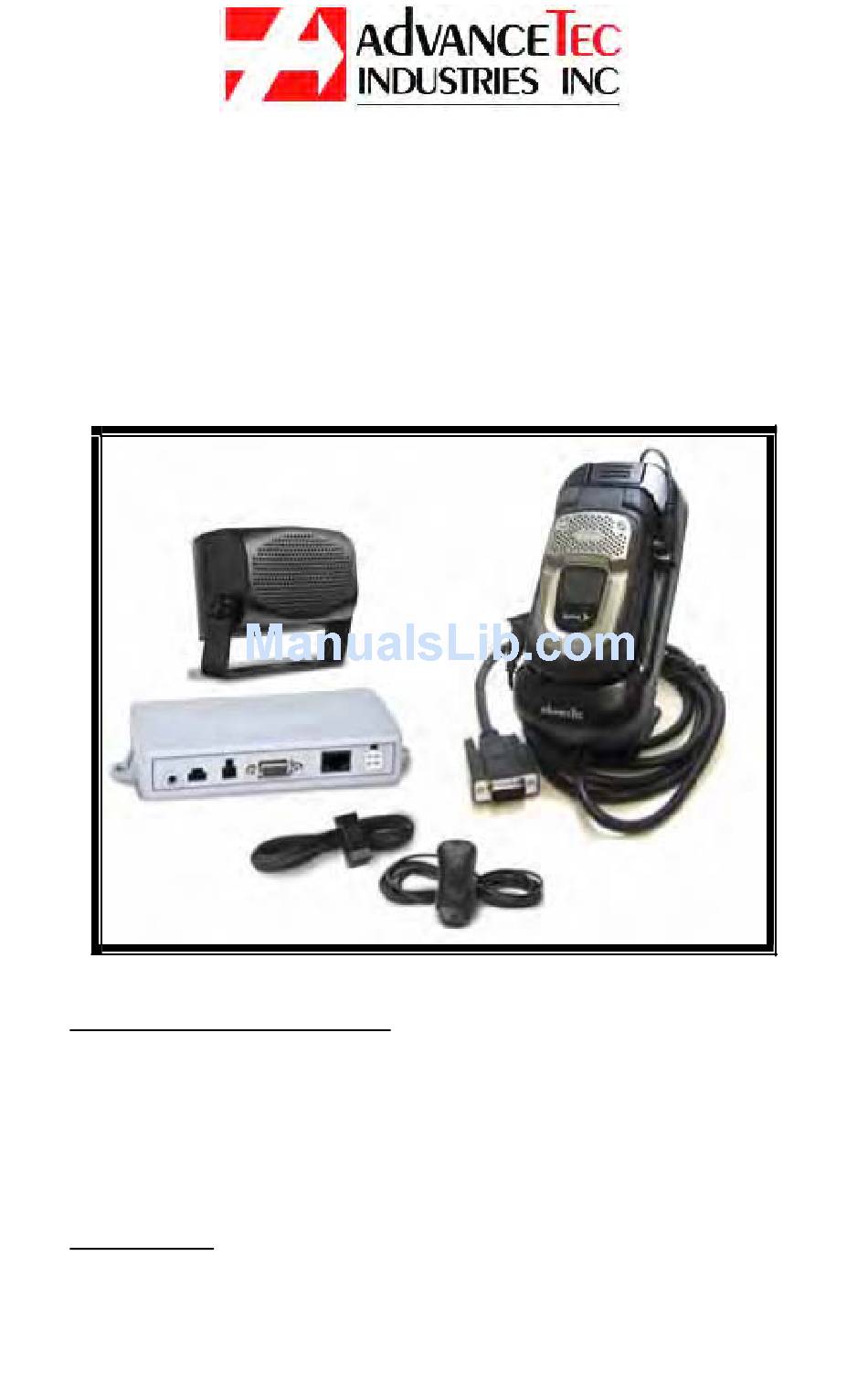

Car Kit Part # AT6701A consists of:
1. Part # AT8231A
2. Part # AT8256A
3. Part # AT8230A
4. Part # AT8232A
5. Part # AT9299B
6. Part # AT6700A
Optional Extras
1. Part #AT7107A
2. Part # AT8428A
User Manual
Kyocera™ DuraXT E4277
Speaker
Junction Box
Visor Microphone.
Power cable
PTT
Hands-free cradle
Privacy Handset
Palm Mic.
Advertisement
Related Manuals for AdvanceTec AT6701A
Summary of Contents for AdvanceTec AT6701A
- Page 1 Car Kit Part # AT6701A consists of: 1. Part # AT8231A Speaker 2. Part # AT8256A Junction Box 3. Part # AT8230A Visor Microphone. 4. Part # AT8232A Power cable 5. Part # AT9299B 6.
-
Page 2: Table Of Contents
Index Page Details Important PHONE Settings Warnings 3 - 4 Speaker Installation 4 - 5 Microphone Installation 5 – 6 Mounting PTT 6 – 7 Power Cable Installation Connecting Cables to Junction Box ... -
Page 3: Important Phone Settings
IMPORTANT PHONE SETTINGS The following are phone settings that are needed for operation with the AdvanceTec hands free : 1. Press > Settings > DC Settings > Direct Connect ON 2. Press > Settings > DC Settings > Headset Mode > Headset button starts DC calls. [DC button]. 3. Press > Settings > Others > Accessibility > TTY >TTY Off. 4. Increase or Decrease the hands free volume must be done while phone is connected to the hands free and is on an active call. Hands‐free Installation Before beginning the installation process, determine the best locations for the mounting of the Mounting Bracket, Hand‐free Cradle, Push‐To‐Talk (PTT) button, Visor Microphone, Speaker and Junction Box. Consider the following guideline when planning the installation: DO use all mounting hardware provided. DO ensure that cables are not placed under stress. DO follow proper + and ‐ connections. DO crimp connectors securely. ... -
Page 4: Speaker Installation
deployment area can vary by vehicle make, model, and front compartment configuration (for example, bench seat vs. bucket seats). Contact the vehicle manufacturer's corporate headquarters, if necessary, for specific air bag information for the vehicle make, model, and front compartment configuration involved in your communication equipment installation. A. Speaker Installation 1. Mount the Speaker beneath the dashboard, on the passenger's side of the vehicle, out of the way of the passenger. Do not mount the Speaker on the dashboard or the rear window shelf. 2. The Speaker should be located more than four feet from the junction box. 3. The Speaker includes a mounting bracket, permitting it to be mounted in a variety of ways. Loosen the thumbscrews on the side of the speaker and using the mounting bracket as a template, drill the necessary mounting ... -
Page 5: Microphone Installation
B. Microphone Installation 1. The Microphone supplied has noise cancellation features and as such the selection of the correct position for the microphone is vital for the successful performance of the Car Kit. 2. The Microphone should be mounted either on the sun visor directly above and facing the driver, or on the headliner just above and facing the driver. Facing the driver ... - Page 6 2. To attach the PTT to a flat surface, remove the 2 screws from the bottom of the PTT, which holds the Velcro strip in place. Remove the strips and replace the small plastic part that held the strips in place with the larger flat plastic part supplied with the PTT. Screw the new plastic part in place. 3. Feed the cable out of sight to the location where you intend to mount the junction box. Caution: Make sure there is sufficient slack in the cable to allow the free movement of the gear lever without stretching the PTT cable. D. Installing the Power Cable Caution! The Car kit should be used with a negative ground electrical system only. Reverse polarity (positive ground) will trigger protection circuits which cause the cable fuse to open. Check the ground polarity before you begin the installation to prevent wasted time and effort. 12V ...
- Page 7 3. Cut the black lead to the desired length. 4. If the connection is being made under the dash or in the vehicle cabin, connect the black lead directly to the chassis of the vehicle. 5. If the connection is being made in the engine compartment, connect the in‐line fuse holder between the black lead of the power cable and the desired chassis connection point. Note! Do not connect the black lead to the negative (‐) battery terminal. The Car Kit could be damaged if there were a malfunction in the vehicle’s electrical system. 6. Cut the red lead to the desired length. This lead will be connected such that it has positive supply voltage at all times, even when the vehicle is turned off. ...
-
Page 8: Connecting Cables To Junction Box
Connecting cables to Junction Box. 1. Locate a position for the junction box beneath the dashboard on the passenger's side of the vehicle or on the center side post between the front seats. It must be protected from dirt and moisture and must be afforded adequate ... -
Page 9: Car Ignition Connection
Press button on top of cradle to release phone Insert side audio cable Insert Micro USB connector Insert portable behind ridge on the cradle Diagram 7 3. Insert the bottom of the handset behind the ridge on the cradle and press the top of the handset back into the Cradle as shown in Diagram 7 ... -
Page 10: Call Waiting
Making or receiving a hands‐free telephone call 1. To receive an incoming hands‐free telephone call, press the Green phone key, on the handset’s keypad or the PTT button for a short period. A confirmation tone that the call has been answered will be heard through the speaker NOTE! If the PTT button is pressed for more than 2 seconds it will reject and end the call. 2. To make a hands‐free telephone call, place the handset into the cradle and dial the desired number on the handset's keypad and press the phone key. 3. Adjust the speaker volume using the handset's volume control. 4. Incoming audio will be hea rd through the speaker. Note! For best audio during an interconnect call set the volume level at 5 bars or less. Call Waiting in both Hands‐free mode and with Privacy handset 1. To answer an incoming call during an active call, press the PTT button ... -
Page 11: Handset With Cradle
Optional Extras AT7107A – Handset with Cradle Part # AT7107A – Privacy Handset with Cradle 1. To use the Privacy Handset, plug the connector on the end of the coil cord into the corresponding RJ45 receptacle on the Junction Box. See Diagram 6 above 2. An active call can be terminated and an incoming call can be rejected by pressing the PTT button on the back of th e Privacy handset for more than 2 seconds. 3. To switch from an active call with the Privacy handset to hands‐free operation, place the Privacy handset into its cradle. Audio will then be routed ... -
Page 12: Palm Mic
Palm Mic. into the corresponding RJ45 receptacle on Junction Box. See Diagram 6 above. 2. Once connected, the pressing of the switch on the Palm Mic. will deactivate the Visor Mic. and activate the Palm Mi c. rd 1150 NW 163 Drive, Miami, FL 33169 T: 305-623-3939 F: 305-623-3996 www.advancetec.com www.advanceMobileGPS.com...
