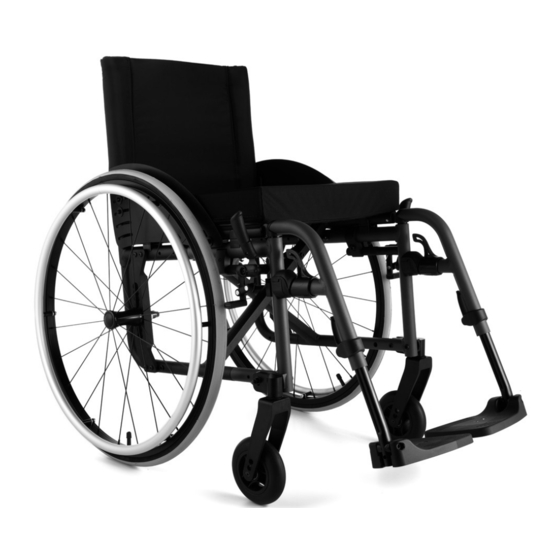

KÜSCHALL COMPACT
attract
Service Manual
DEALER: Keep this manual.
The procedures in this manual MUST be performed by a
qualified technician.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMPACT attract and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Küschall COMPACT attract

Summary of Contents for Küschall COMPACT attract

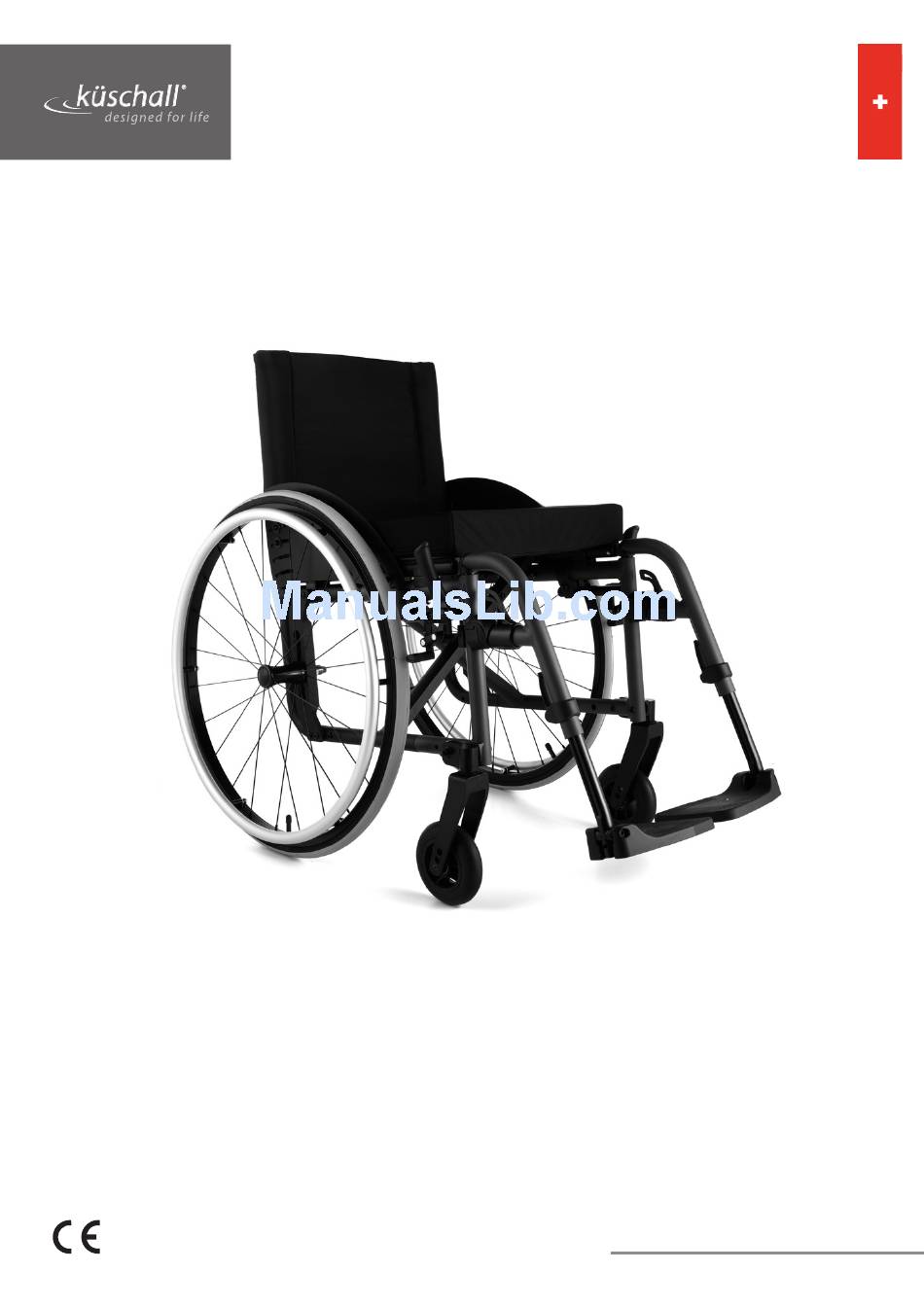

  • Page 1 KÜSCHALL COMPACT attract Service Manual DEALER: Keep this manual. The procedures in this manual MUST be performed by a qualified technician.

  • Page 2: Table Of Contents

    Service Manual KÜSCHALL COMPACT attract TABLE OF CONTENTS GENERAL ........................4 Introduction Spare parts and adaptations Fastening with hexagon socket bolts Torque Checks Identifying and repairing faults OVERVIEW ........................6 Components Dimensions FRAME ........................7 Rear frame Front frame Retaining lever SEAT ..........................9 Seat height front (SHv) Seat height rear (SHh) Seat width (SB)
  • Page 3 Service Manual KÜSCHALL COMPACT attract BRAKES ........................32 Parking brakes Drum brake OPTIONS & ACCESSORIES ..................34 Antitipper Tipper aid/Cane holder Fitting the pelvic belt Attaching the snap hook symbols © Küschall AG, Switzerland | 2016-01...

  • Page 4: General

    Service Manual KÜSCHALL COMPACT attract GENERAL Introduction This Service Manual contains all the technical information necessary for the inspection, configuration or repair of a küschall wheelchair. ® WARNING! Danger of accident and severe injuries. If the wheelchair is improperly set it can cause accidents and severe injuries.

  • Page 5: Torque

    Service Manual KÜSCHALL COMPACT attract Tightening and undoing when no nut is present If a hexagon socket bolt is screwed directly into a thread, the bolt must be tightened using the Allen key. Ensure that the Allen key is of good quality and not worn.

  • Page 6: Overview

    Service Manual KÜSCHALL COMPACT attract OVERVIEW OVERVIEW Components Push handles Backrest Rear wheel with handrim Parking brake Front wheel fork with front wheel Legrest Footplate Frame Seat Clothes-guard Dimensions Seat depth 360 – 500 mm, in increments of 20 mm Backrest angle 82°/86°/90°/ 94°/98°/102°...

  • Page 7: Frame

    Service Manual KÜSCHALL COMPACT attract FRAME FRAME A Rear frame à 13 Nm à B Retaining lever à 4 Nm C Cross D Front frame à 13 Nm à E Upper connecting tube F Lower connecting tube G Seat locking mechanism à...

  • Page 8: Rear Frame

    Service Manual KÜSCHALL COMPACT attract FRAME Rear frame Replacing the rear frame Difficulty: Tools: à 5 ˜˜™ Remove backrest.  Loosen and remove bolts A and A  Pull out rear frame A to the back.  Remove seat locking mechanism G from old front frame and fit it on ...

  • Page 9: Seat

    Service Manual KÜSCHALL COMPACT attract SEAT SEAT Seat height front (SHv) Options for changing the SHv: • Replace front wheel with larger or smaller one or fit it at another position on the castor fork,  Chap. Front wheels Replacing the front wheel. •...

  • Page 10: Seat Height Rear (Shh)

    Service Manual KÜSCHALL COMPACT attract SEAT Seat height rear (SHh) Options for changing the SHh: • Replace rear wheel with a larger or a smaller one  • Change the position of the adapter plate, Chap. Rear wheels. Seat height rear with respect to the rear wheels and positioning on the frame Rear wheel size [inch] 24’’...
  • Page 11 Service Manual KÜSCHALL COMPACT attract SEAT Replacing the seat cover Difficulty: Tool: Ò 10 ˜˜™ Loosen bolts A and remove plug B. Remove seat cover including plastic rods. Position new seat cover.  Retighten bolts A and plug B.  Turning the seat locking mechanism If the seat can be too easily removed from the seat locking mecha- nisms, either the front two or all four seat locking mechanisms can...

  • Page 12: Backrest

    Service Manual KÜSCHALL COMPACT attract BACKREST BACKREST Backrest height The backrest height can be changed by fitting the telescopic tubes into another position in the backrest tubes. If this setting option is insufficient, the telescopic tubes can be replaced. Adjusting the height of standard backrests Difficulty: Tools: Ã...

  • Page 13: Angle-Adjustable Backrest

    Service Manual KÜSCHALL COMPACT attract BACKREST Angle-adjustable backrest In order to make the backrest angle adjustable, angle-adjustable backrest can be fitted. Backrest angle Deviation Angle between Position from standard backrest and backrests seat 12° 102° 8° 98° 4° 94° 0° 90°...
  • Page 14 Service Manual KÜSCHALL COMPACT attract BACKREST Setting the backrest angle à 5 Difficulty: Tools: ˜˜™ Remove the backrest cushion B and push the Velcro ® bands C upwards, until the backrest joint A is invisible. Remove the bolt D and loosen bolt E. Set the desired backrest angle, insert the bolts D in the nearest hole and tighten.

  • Page 15: Replacing Push Handles / Push Handles And Backrest

    Service Manual KÜSCHALL COMPACT attract BACKREST Replacing push handles / push handles and backrest If the push handles are replaced with a different type of push handles, e.g. height-adjustable ones, it can happen that the rear frame must also be replaced. Changing the backrest height can also mean that the configuration of the Velcro ®...
  • Page 16 Service Manual KÜSCHALL COMPACT attract BACKREST Fitting height adjustable, rear set push handles Ò Ã 3, 4, 5 8, 10 Difficulty: Tools: ˜˜™ The Velcro ® bands may have to be replaced with narrower ones, as space is required to secure the holder on the telescopic tube. Secure the telescopic tube B to the rear frame A at the required ...

  • Page 17: Replacing Foldable Push Handles

    Service Manual KÜSCHALL COMPACT attract BACKREST Replacing foldable push handles Difficulty: Tools: Hole punch pliers 6 mm, à 3, 4 ˜™™ Remove the old foldable push handle.  Pull down the backrest cover F on the telescopic tube, until its ...

  • Page 18: Backrest Parts For Adjustable Backs With Respect To Backrest Height

    Service Manual KÜSCHALL COMPACT attract BACKREST Backrest parts for adjustable backs with respect to backrest height Fixed backrest with standard/mini pushandles, foldable push handles* or without pushandles: Backrest height (RH) with respect to cover, backrest tubes, bands Bands (without Cover Telescopic tube A Bands (with stabilizing stabilizing bar,...
  • Page 19 Service Manual KÜSCHALL COMPACT attract BACKREST Fixed backrest with high adjustable push handles, integrated: Backrest height (RH) with respect to cover, backrest tubes, bands* Telescopic tube Telescopic tube (lumbar) (straight) Backrest Push Backrest Push Cover C tube B handle A tube B handle A *For bands configuration, see table „Fixed backrest with standard push handles“.
  • Page 20 Service Manual KÜSCHALL COMPACT attract BACKREST Angle adjustable backrest with high adjustable push handles, integrated: Backrest height (RH) with respect to cover, backrest tubes, bands* Telescopic tube Backrest Push Cover C tube B handle A * For bands configuration, see table „Angle adjustable backrest with standard push handles“.
  • Page 21 Service Manual KÜSCHALL COMPACT attract BACKREST Foldable backrest with high adjustable push handles, rearset: Backrest height (RH) with respect to cover, backrest tubes*, bands Bands (without Bands (with Cover Telescopic stabilizing bar, stabilizing bar, tube A endband C = 10cm) endband C = 5cm) 2x1-band D 2x1-band...

  • Page 22: Legrests

    Service Manual KÜSCHALL COMPACT attract LEGRESTS LEGRESTS Legrests with angle measurements of 70° and 90° are available. à 7 Nm à 8 Nm Replacing legrest parts Replacing the locking mechanism on the legrest Difficulty: Tools: ß 8 ˜™™ Remove locking mechanism A by turning out screws B and ...

  • Page 23: Footrests

    Service Manual KÜSCHALL COMPACT attract FOOTRESTS FOOTRESTS Two-piece footrest à 5 Difficulty: Tools: ˜™™ Disassembling/fitting footrests Loosen bolts A on both sides. Pull out footrests. Push the new footplates into the legrest at the required height. Tighten set screw A at the required height. à...

  • Page 24: Sideparts

    Service Manual KÜSCHALL COMPACT attract SIDE PARTS SIDEPARTS Clothes guard/mudguard Fitting the clothes guard/mudguard à 4 Nm Difficulty: Tools: à 3 ˜˜™ Fit side fixations A onto the frame.  Fit clothes guard/mudguard B with bolts and nuts onto the side ...

  • Page 25: Siderests

    Service Manual KÜSCHALL COMPACT attract SIDE PARTS Siderests In general a torque of 7 Nm is used to fit the side rests. Fitting flip to back side rest with locking mechanism à 3, 4, 5 Difficulty: Tools: ˜˜™ Fit the side fastening element with bolt A ...
  • Page 26 Service Manual KÜSCHALL COMPACT attract SIDE PARTS Size of the clothes guard/mudguard The clothes guard and mudguard can be adjusted to suit the height of the rear wheel exactly. Two sizes of each are available. For the re- For the re- movable carbon mudguard there is an additional size (XL) for the two smallest rear seat hights (SHh).
  • Page 27 Service Manual KÜSCHALL COMPACT attract SIDE PARTS Mudguard mounted fix: SP 1 SP 2 SP 3 Mudguard (mounted fix) with respect to the position of the rear wheels with standard adapter plate (Pos. 1 to 3) Rear wheel 24’’ [mm] SP 1 SP 2 SP 3...

  • Page 28: Front Wheels

    Service Manual KÜSCHALL COMPACT attract FRONT WHEELS FRONT WHEELS Replacing a front wheel à 3 Difficulty: Tools: ˜™™ Remove the screw A with washer on one side. Remove the wheel axle B. Remove the front wheel C. If needed, place the sleeves D between the new front wheel and ...

  • Page 29: Special Housing Guides

    Service Manual KÜSCHALL COMPACT attract FRONT WHEELS Adjusting the castor angle Difficulty: Tools: Ã5 ˜˜™ Loosen bolts A and nuts B.  Hold spirit level against the castor pin housing D.  Turn the set screw C until the castor pin housing is D vertical. ...

  • Page 30: Rear Wheels

    Service Manual KÜSCHALL COMPACT attract REAR WHEELS REAR WHEELS Adjusting the seat height rear 19, 22 Difficulty: Tools: ˜™™ Remove adapter sleeve B.  Re-insert adapter sleeve B at the required height in the vertical  brace A and fasten securely with nut C. Perform the same setting on both sides.

  • Page 31: Wheel Camber

    Service Manual KÜSCHALL COMPACT attract REAR WHEELS Wheel camber A wheel camber of either 0° or 3° is possible. Changing the wheel camber 0˚ 19, 22 Difficulty: Tools: ˜˜™ The wheel camber is changed by replacing the adapter sleeve: Remove adapter sleeves B or C on both sides. 3˚...

  • Page 32: Brakes

    Service Manual KÜSCHALL COMPACT attract BRAKES BRAKES Parking brakes Fitting/adjusting the parking brake Difficulty: Tools: à 5 ˜™™ CAUTION! The parking brakes must be adjusted whenever the rear wheels are replaced. Check the air pressure in the rear wheels.  Secure the brake holder loosely to the frame using bolt A.

  • Page 33: Drum Brake

    Service Manual KÜSCHALL COMPACT attract BRAKES Drum brake à 33 Nm Fitting and setting the drum brake Difficulty: Tools: à 4, Ò 10, 22, ß 20 ˜˜˜ Remove the rear wheel K by loosening the quick release axle pin J ...

  • Page 34: Options & Accessories

    Service Manual KÜSCHALL COMPACT attract OPTIONS & ACCESSORIES OPTIONS & ACCESSORIES Antitipper Fitting an antitipper Difficulty: Tool: à 5, 3 ˜™™ Fix the adapter plates C and D with bolts E onto the frame tube.  Attach the adaptation support A with bolts B through the adapter ...

  • Page 35: Tipper Aid/Cane Holder

    Service Manual KÜSCHALL COMPACT attract OPTIONS & ACCESSORIES Tipper aid/Cane holder Tipper aid and cane holder are mounted in the same way. Fitting the tipper aid/cane holder à 5, 3 Difficulty: Tool: ˜™™ Fix the adapter plates C and D with bolts E onto the frame tube. ...

  • Page 36: Fitting The Pelvic Belt

    Service Manual KÜSCHALL COMPACT attract OPTIONS & ACCESSORIES Fitting the pelvic belt Difficulty: Tools: à ˜™™ Attach the vertical brace F to the frame B with steel strap A,  à 7 Nm washer D and 2x distance part E between using bolts C on both sides.
  • Page 37 Service Manual KÜSCHALL COMPACT attract © Küschall AG, Switzerland | 2016-01...

  • Page 38: Küschall Ag, Switzerland | 2016-01

    Küschall AG Benkenstrasse 260 CH-4108 Witterswil kueschall@invacare.com www.kuschall.com Service Manual küschall Compact attract ENGLISH | 2016-01 küschall distributors ® Belgium & Luxemburg: Invacare nv • Autobaan 22 • B-8210 Loppem Tel: (32) (0)50 83 10 10 • Fax: (32) (0)50 83 10 11 • belgium@invacare.com • www.invacare.be Danmark: Invacare A/S • Sdr. Ringvej 37 • DK-2605 Brøndby Tel: (45) (0)36 90 00 00 • Fax: (45) (0)36 90 00 01 • denmark@invacare.com • www.invacare.dk Deutschland: Invacare GmbH • Alemannenstraße 10 • D-88316 Isny Tel: (49) (0)75 62 7 00 0 • Fax: (49) (0)75 62 7 00 66 • kontakt@invacare.com • www.invacare.de European Distributor Organisation: Invacare • Kleiststraße 49 • D-32457 Porta Westfalica Tel: (49) (0)57 31 754 540 • Fax: (49) (0)57 31 754 541 • edo@invacare.com • www.invacare.eu.com España: Invacare SA • c/Areny s/n • Polígon Industrial de Celrà • E-17460 Celrà (Girona) Tel: (34) (0)972 49 32 00 • Fax: (34) (0)972 49 32 20 • contactsp@invacare.com • www.invacare.es France: Invacare Poirier SAS • Route de St Roch • F-37230 Fondettes Tel: (33) (0)2 47 62 64 66 • Fax: (33) (0)2 47 42 12 24 • contactfr@invacare.com • www.invacare.fr Ireland: Invacare Ireland Ltd • Unit 5 Seatown Business Campus • Seatown Road • Swords • County Dublin – Ireland Tel : (353) 1 810 7084 • Fax: (353) 1 810 7085 • ireland@invacare.com • www.invacare.ie Italia: Invacare Mecc San s.r.l. • Via dei Pini 62 • I-36016 Thiene (VI) Tel: (39) 0445 38 00 59 • Fax: (39) 0445 38 00 34 • italia@invacare.com • www.invacare.it Nederland: Invacare BV • Galvanistraat 14-3 • NL-6716 AE Ede Tel: (31) (0)318 695 757 • Fax: (31) (0)318 695 758 • nederland@invacare.com • www.invacare.nl Norge: Invacare AS • Grensesvingen 9 • Postboks 6230 • Etterstad • N-0603 Oslo Tel: (47) (0)22 57 95 00 • Fax: (47) (0)22 57 95 01 • norway@invacare.com • island@invacare.com • www.invacare.no...
