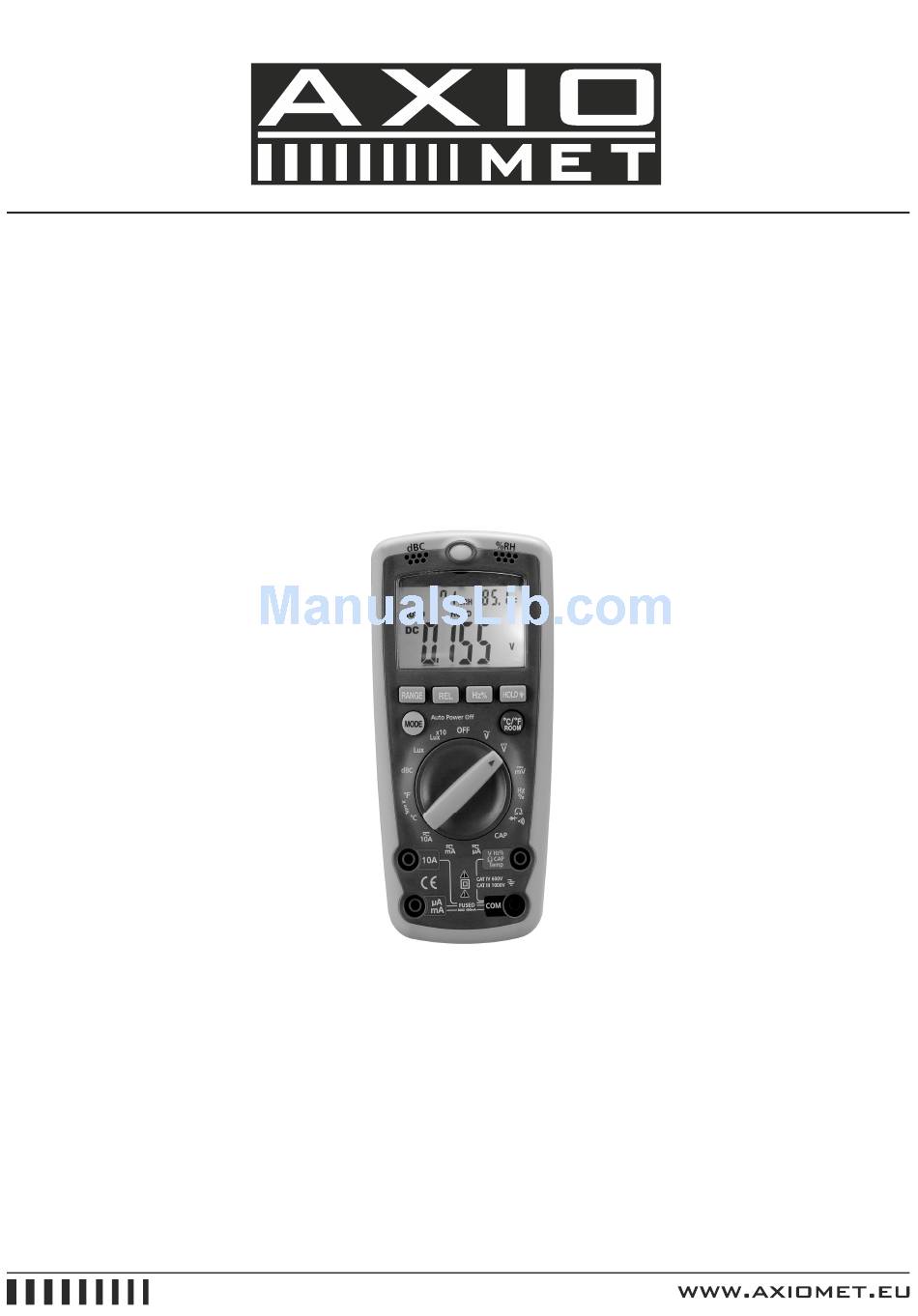

- Page 1 Digital multimeter 6in1 AX-190A Instructional Manual...
-
Page 2: Safety Instructions
1. Safety instructions NEVER apply voltage or current to the meter that exceeds the specified maximum. Function Maximum input VDC lub VAC 600VDC/AC rms 500mA 660V fast acting fuse mA AC/DC (500mA/660V) 10A 600V fast acting fuse A AC/DC (10A for 30 seconds max every 15 minutes) Frequency, Resistance, Capacitance, Duty 600VDC/AC rms Cycle, Diode Test, Continuity... -
Page 3: Panel Description
2. Panel description Humidity Sensor and Semiconductor Sensor inside for Indoor. 3 4/5 digits LCD display Function switch V / Hz% / Ω / CAP / °C input jack... -
Page 4: Specifications
COM input jack A / mA input jack 10A input jack Electric condenser microphone inside. Photo Detector Hz/% button 10. HOLD button 11. BACKLIGHT button 12. MODE button The button to select AC or DC measurement when in A, mA, uA, and , Ω, , ranges. -
Page 5: Sound Level
Operating environment: 0°C 40°C(32°F 104°F) at <70% Storage temperature: -10°C to 60°C (14°F to 140°F) at <80%RH Power: 9V, NEDA1604 or 6F22 battery. Dimensions: 170 (H)x78(W) x48(D) mm Weight: Approx.: 335g Accuracy is given at 18 C to 28 C (65 F to 83 F), less than 70%RH. 3.1. - Page 6 3.3. Temperature/Humidity K-type temperatur Measurement Range: Range Resolution Accuracy -20°C to 1300°C 1°C 3% of rdg 5± dgts Input Impedance: 10MΩ Overload Protection: 250VDC or AC rms. for 400mV range and 250VDC or 250VAC rms. for other ranges. Ω Indoor Temperature Range Range Resolution Accuracy...
- Page 7 3.4. Multimetr 1.DC Voltage (Auto-ranging) Range Resolution Accuracy 400.0mV 0.1mV 4.000V 1.0mV ±1.0% of rdg ±4 dgts 40.00V 10mV 400.0V 100mV ±1.5% of rdg ±4 dgts 600V Input Impedance: 10MΩ Overload Protection: 600VDC or AC rms. for 400mV range and 600VDC or 600VAC rms.
- Page 8 Frequency Range: 50 to 400Hz Maximum Input: 600VDC or 600VAC rms. 3.DC Current (Auto-ranging for uA and mA) Range Resolution Accuracy 400.0uA 0.1uA ±1.0% of rdg ±2 dgts 4000uA ±1.0% of rdg ±2 dgts 400.0mA 100uA ±1.2% of rdg ±2 dgts 10.00A 10mA ±2.0% of rdg ±5 dgts...
- Page 9 Maximum Input: 400mA DC or 400mA AC rms on uA/mA ranges, 10A DC or AC rms on 10A range. 5.Resistance (Auto-ranging) Range Resolution Accuracy 400.0Ω 0.1Ω ±1.5% of rdg ±4 dgts 4.000kΩ 1Ω 40.00kΩ 10Ω ±1.5% of rdg ±2 dgts 400.0kΩ...
- Page 10 500.0nF 0.1nF 5.000uF ±3.0% of rdg ±5 dgts 50.00uF 10nF 100.0uF 0.1uF ±4.0% of rdg ±5 dgts Input Protection: 600V DC or 600V AC rm 7.Frequency (Auto-ranging) Range Resolution Accuracy 5.000Hz 0.001Hz 50.00Hz 0.01Hz 500.0Hz 0.1Hz ±1.2% of rdg ±3 dgts 5.000kHz 50.00kHz 10Hz...
-
Page 11: Battery Replacement
8.Diode and Continuity check Diode: Test current 1.4mA dc and open circuit voltage 2.8V Continuity: Built in Buzzer will be sound if the circuit resistance i s less than 50 Overload Protection: maximum 600V DC or 600V AC rms. 4. Battery replacement If the sign “...
