6. Usage

The DBS1 was designed as a hassle-free plug-and-play device. This chapter describes all buttons and LEDs to
ensure you'll get the most out of your Dante® Breakout box.

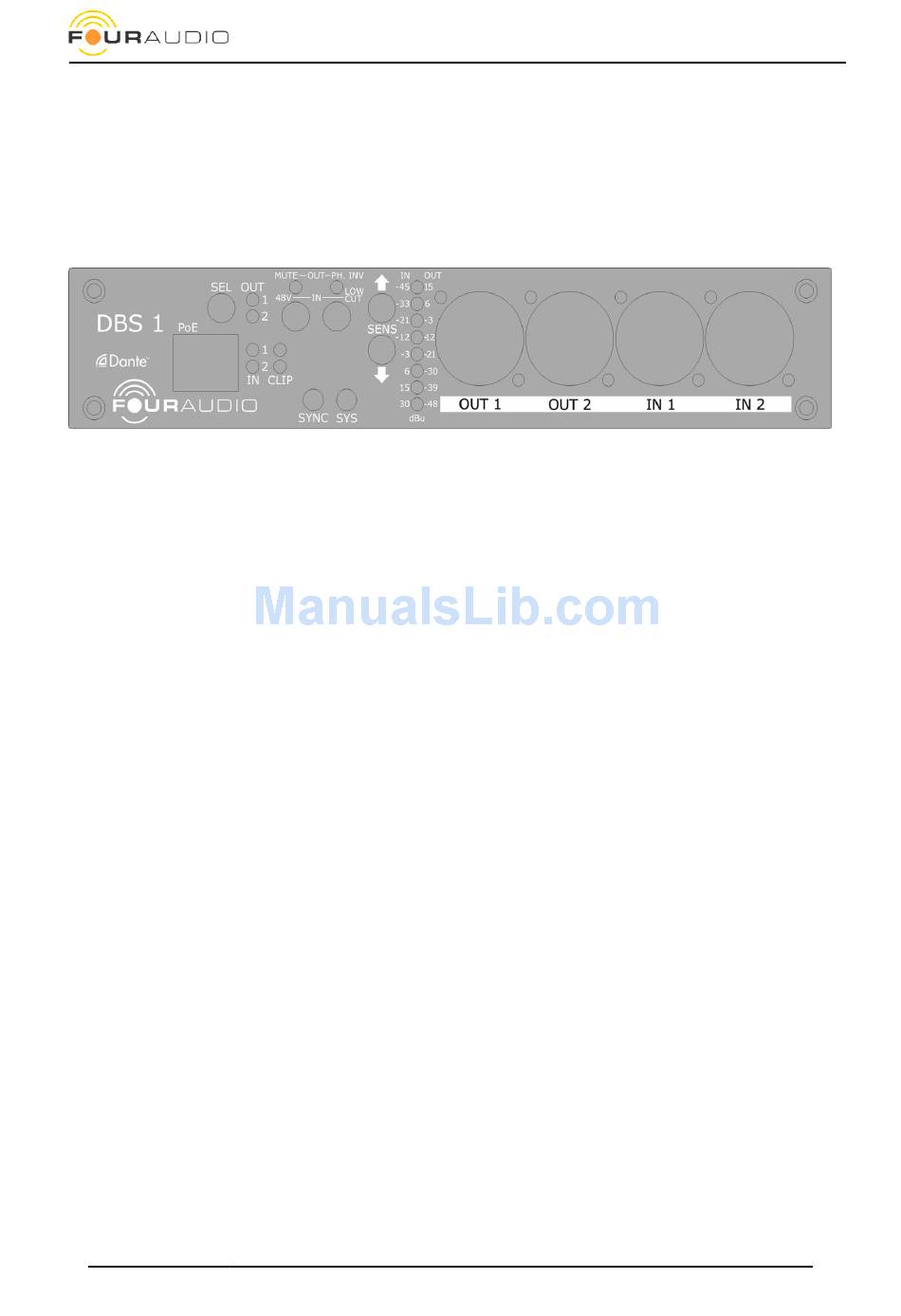

On the Front panel you'll find all controls and LEDs which are explained below. The function of some elements
can change depending on whether an input or an output is selected.

6.1. LEDs

OUT 1
Out 2
In 1
In 2
CLIP 1
CLIP 2
MUTE / 48V
PH.INV / LOW CUT
SYNC
SYS
LINK
ACT
SENS (8 LEDs)
* The LEDs MUTE/48V and PH.INV/LOW CUT show the state of this function for the selected channels.

6.2. Push Buttons

SEL
MUTE / 48V
PH.INV / LOW CUT
UP
DOWN
Function / Meaning
Output 1 selected
Output 2 selected
Input 1 selected
Input 2 selected
Input 1 clipping
Input 2 clipping
Output: Mute On *
Output: Phase Invert On *
see table below
see table below
Ethernet connection established
blinks on network activity
see table below
Function / Meaning
Selection of Input / Output see table below
Output: Mute on / off
Output: Phase inversion on / off
Input: increase sensitivity
Input: decrease sensitivity
Date: 2016-02-18
DBS1 user manual
Input: Phantom Power On *
Input: Low Cut On *
Input: toggle Phantom power on / off
Input: Low Cut on / off
Output: increase output level
Output: decrease output level
