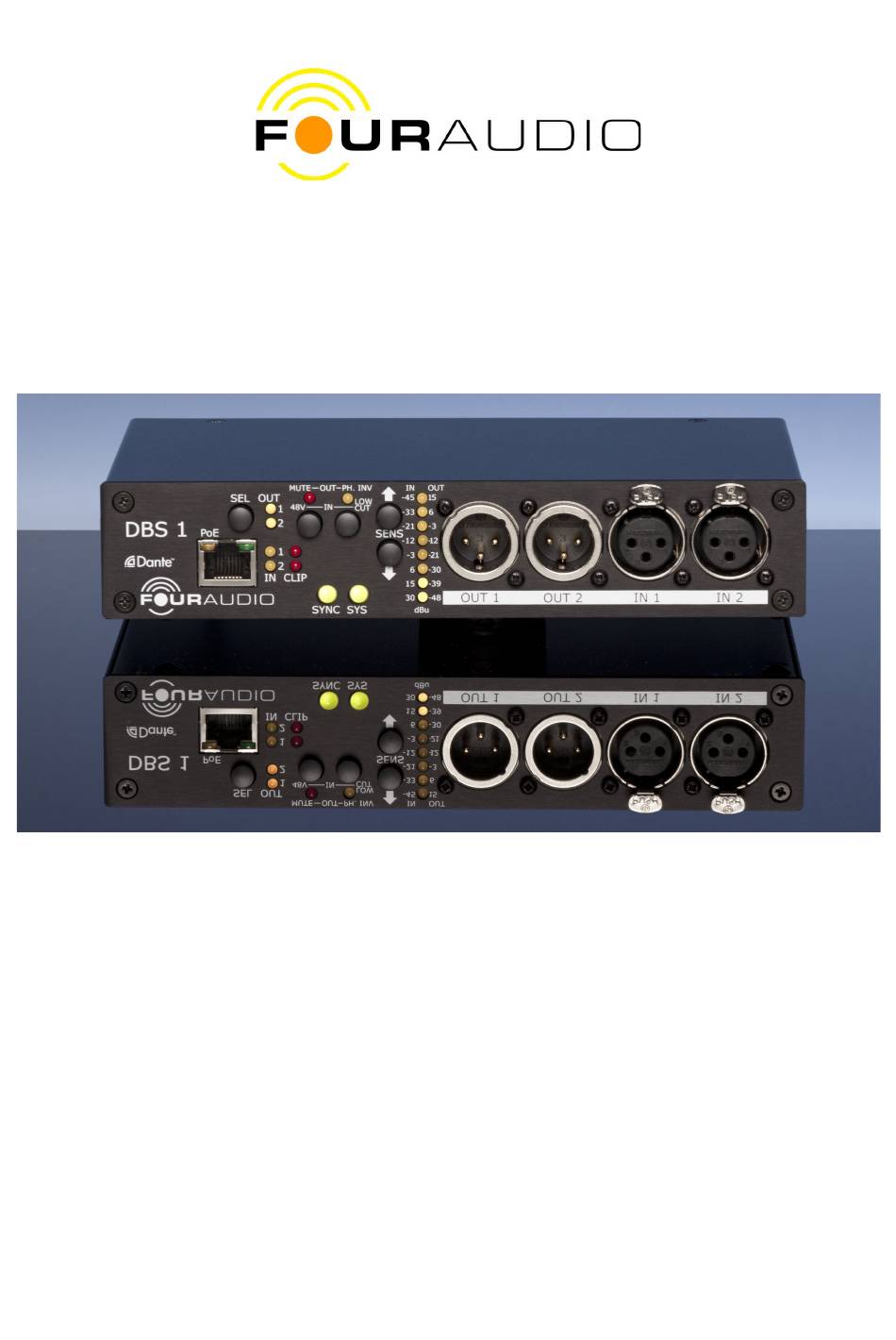

- Page 1 DBS 1 Quick User Guide Version 1.0.0 14.11.2013 © Four Audio GmbH & Co. KG 2013 The full manual can be downloaded from here: www.fouraudio.com/en/products/dbs1.html...
-
Page 2: Important Safety Information
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS DEVICE TO RAIN OR MOISTURE. DO NOT PERFORM ANY SERVICING UNLESS YOU ARE QUALIFIED TO DO SO BY FOUR AUDIO. REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL. -
Page 3: Front Panel
2 Front panel Each input and output can be configured individually. Depending on input/output selection some elements have different meanings. LEDs Element Function / Meaning OUT 1 Output 1 selected OUT 2 Output 2 selected IN 1 Input 1 selected IN 2 Input 2 selected CLIP 1... -
Page 4: Power Supply
3.1 Power Supply DBS 1 can be powered by the provided 5 V desktop power supply or by power over ethernet (PoE). The desktop power supply can be connected to the jack on the rear. External power supply and PoE can be used simultaneously to achieve redundancy. - Page 5 195 mV 275 mV -21 & -12 138 mV 195 mV -21 & -12 97,5 mV 138 mV 69,0 mV 97,6 mV -33 & -21 48,9 mV 69,1 mV -33 & -21 34,6 mV 48,9 mV 24,5 mV 34,6 mV -33 &...
-
Page 6: Phase Invert
6 & 15 3,08 V 4,36 V 4,36 V 6,16 V 15 & 30 6,15 V 8,70 V 15 & 30 8,69 V 12,3 V 24,5 V 34,6 V Bold values are factory default values. All functions can be set individually for each channel. A short form of both tables can be found on the rear of the unit. -
Page 7: Remote Control
Note: PTP = Precision Time Protocol (One device in the Dante audio network is the Dante clock master. all other devices are Dante clock slaves synchronized by PTP.) 3.9 Remote Control DBS 1 is prepared for remote controlling all parameters. Please check for availability of new software on our homepage. 3.10 Dante settings All Dante features can be configured and monitored with Dante Controller which is a software application provided by Audinate, the inventor of Dante. -
Page 8: Network Setup
4 Network Setup Automatic network configuration A Dante-enabled device connected to a network will automatically set up its own network configuration, including its IP address. If the network has a DHCP server, which may be the case for installed networks, it will receive its IP configuration using the standard DHCP protocol.
