Summary of Contents for Nortel Portable Telephone

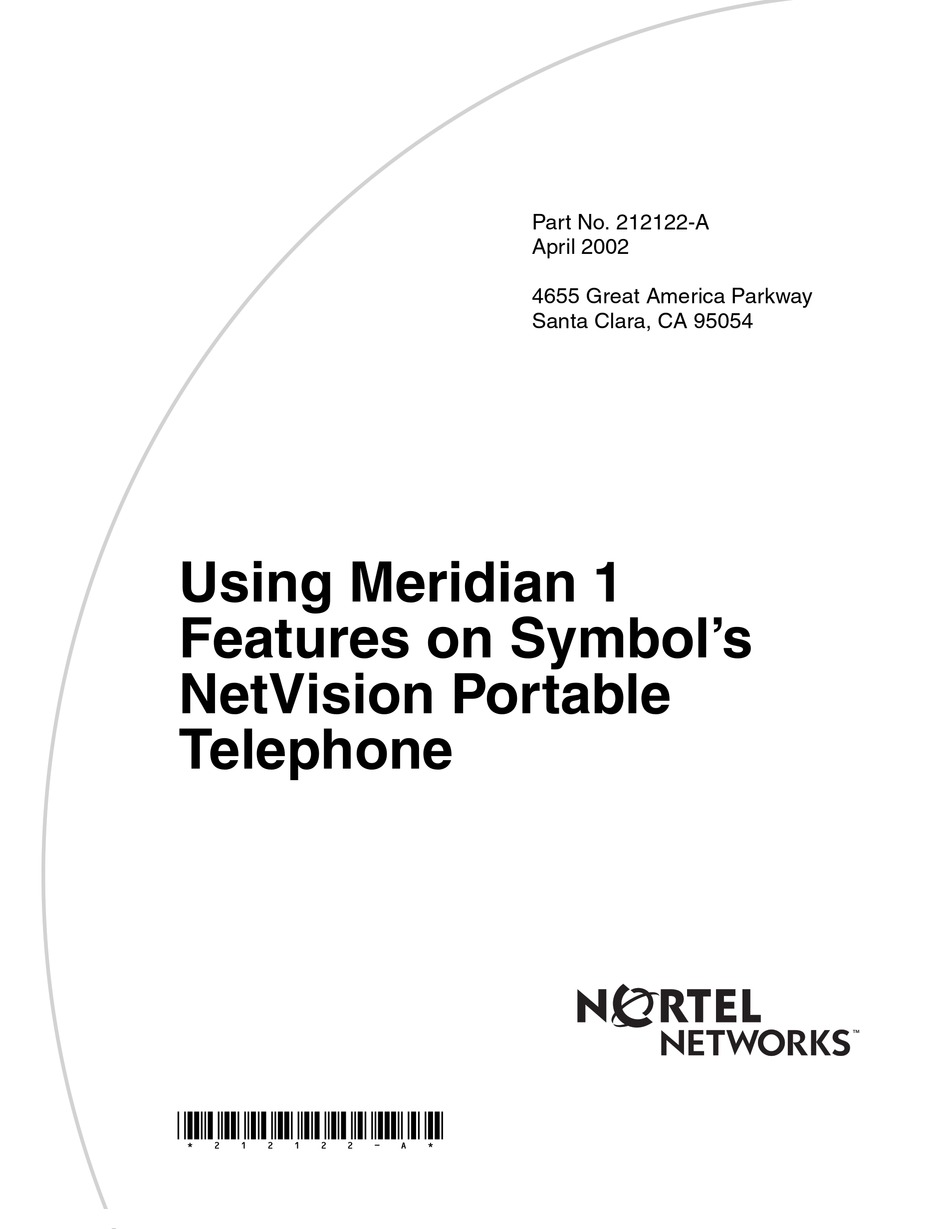

  • Page 1 Using Meridian 1 Features on Symbol’s NetVision Portable Telephone *212122-A* Part No. 212122-A April 2002 4655 Great America Parkway Santa Clara, CA 95054...
  • Page 2 Nortel Networks Inc. reserves the right to make changes to the products described in this document without notice. Nortel Networks Inc. does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
  • Page 3 Symbol NetVision Telephone feature overview LED call indicator Headset jack displays feature menu MENU displays user options NAME list of user names dialed numbers Phone keypad data in phone individual digits Note: The HOLD key does not place the call on hold. On this handset the HOLD key functions as a mute key.
  • Page 4 Powering up the handset Press the SND key. A Nortel Networks banner will appear on the display followed by the message: UserLogin Not Ready. If configured in Personal mode, the handset will automatically register with the Meridian 1. If registration is successful, the display will show your user name followed by the caption Ready.
  • Page 5: Logging Out

    Logging out 1 Press the FCT key. 2 Use the scroll keys (*<, >#) or the Volume buttons to display Logout. 3 Press the SND key. This action will remove the handset from the list of managed endpoints on the system and calls will no longer be directed to the handset.
  • Page 6: Answering A Call

    Making a call Following a successful login, 1 Use the dial pad to enter the digits. The digits are displayed on the handset as they are entered. 2 Press the SND key. Note: Alternatively, you may use the NAME key to display a list of numbers that have been provisioned on your system, or use the RCL key to display a list of Speed dial numbers or recently dialed numbers.
  • Page 7 Meridian 1 features The Symbol NetVision telephones provide access to many of the most popular Meridian 1* features. All of the features described in this guide must be configured for your telephone by your administrator. These features are only available if provisioned on the Meridian 1 or Succession CSE 1000 system.
  • Page 8 Conference You can set up a conference call for up to six people, including yourself. Contact your administrator to determine the maximum number of people your Meridian 1 system allows on a conference call. To set up a conference call: 1 Press the FCT key while you are on a call.
  • Page 9: Make Set Busy

    Make Set Busy The Make Set Busy feature causes your telephone to appear busy to all incoming calls, and, if configured by your administrator, directs incoming calls to your voice mailbox. You can activate this feature while you are on a call, and your telephone will enter busy state once you end the call.
  • Page 10: Call Forward

    Call Forward The Call Forward feature allows you to direct your calls to ring at another extension. You cannot forward calls while your telephone is ringing. To activate Call Forward: 1 Press the FCT key. 2 Use the scroll keys (*<, >#) or the Volume buttons to display CallFwd.
  • Page 11 Call Park The Call Park feature allows a call to be held temporarily and to be retrieved from any telephone. You can park an incoming call and page the called party. When you use Call Park, you do not tie up your extension.
  • Page 12: Ring Again

    Ring Again Use the Ring Again feature when you dial an extension and receive a busy tone or no answer. The Ring Again feature notifies you when the person you dialed has ended their call or when they have used their telephone. To activate Ring Again: 1 Without ending the call, press the FCT key.
  • Page 13: System Speed Call

    System Speed Call The System Speed Call feature allows you to make a call by dialing Speed Call codes which may override your telephone’s class of service restrictions. The System Speed Call feature is set up on the Meridian 1 system by your administrator. It is a speed dial number that is common to many users;...
  • Page 14: Overhead Paging

    Group Call The Group Call feature automatically calls members of a predefined group, one at a time, until they all have answered. Ask your administrator for details on how to create a conference call group. To place a Group Call: 1 Press the FCT key.
  • Page 15 Privacy Override The Privacy Override feature allows a second telephone with the same extension number as your portable telephone to be on a call at the same time. This feature is valuable if you want your portable telephone to be twinned to a desktop telephone. This feature must be activated on the Meridian 1 system by your administrator.
  • Page 16: Retrieve Voice Mail Messages

    Retrieve voice mail messages Your telephone provides you with an indication that a message has been left on your voice messaging system. To retrieve voice mail messages: 1 When your telephone displays Voice Mail, use the keypad to enter the extension used to access your voice messaging system.
  • Page 17 Shortcut method If configured by your administrator, your telephone has the ability to access the Meridian 1 features described in this guide using a shortcut method. To access features using the shortcut method: 1 Press the FCT key. 2 Without scrolling, press the keypad key that corresponds to the number that appears next to the feature in the telephone’s list of features.
