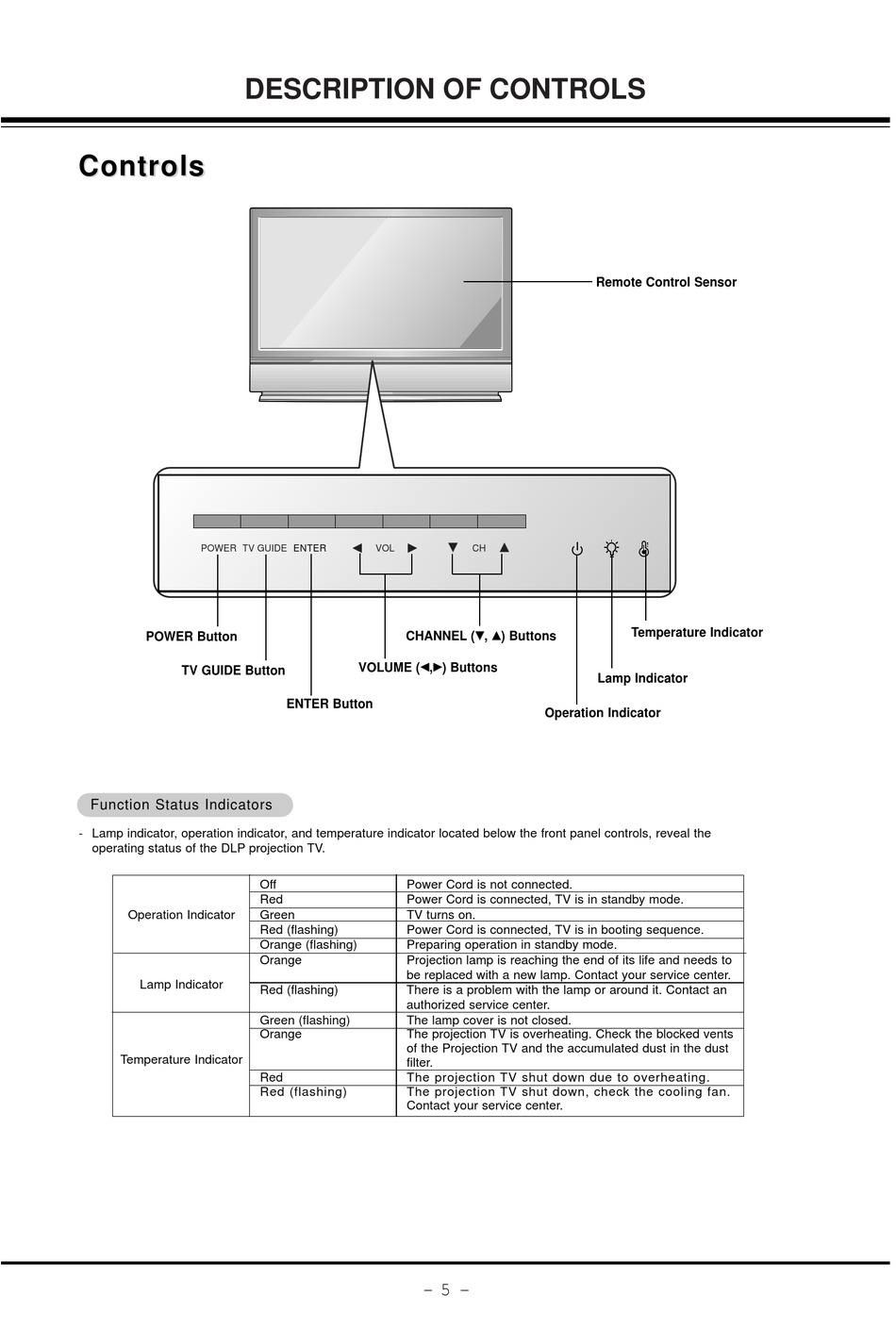

DESCRIPTION OF CONTROLS
Controls
Controls
POWER TV GUIDE
POWER Button
TV GUIDE Button
Function Status Indicators
Function Status Indicators
- Lamp indicator, operation indicator, and temperature indicator located below the front panel controls, reveal the
operating status of the DLP projection TV.
Operation Indicator
Lamp Indicator
Temperature Indicator
ENTER
VOL
CHANNEL (
VOLUME (
F F
ENTER Button
Off
Power Cord is not connected.
Red
Power Cord is connected, TV is in standby mode.
Green
TV turns on.
Red (flashing)
Power Cord is connected, TV is in booting sequence.
Orange (flashing)
Preparing operation in standby mode.
Orange
Projection lamp is reaching the end of its life and needs to
be replaced with a new lamp. Contact your service center.
Red (flashing)
There is a problem with the lamp or around it. Contact an
authorized service center.
Green (flashing)
The lamp cover is not closed.
Orange
The projection TV is overheating. Check the blocked vents
of the Projection TV and the accumulated dust in the dust
filter.
Red
The projection TV shut down due to overheating.
Red (flashing)
The projection TV shut down, check the cooling fan.
Contact your service center.
- 5 -
Remote Control Sensor
CH
E E
,
D D
) Buttons
,
G G
) Buttons
Lamp Indicator
Operation Indicator
Temperature Indicator
