Vollrath CBB116 Operator's Manual

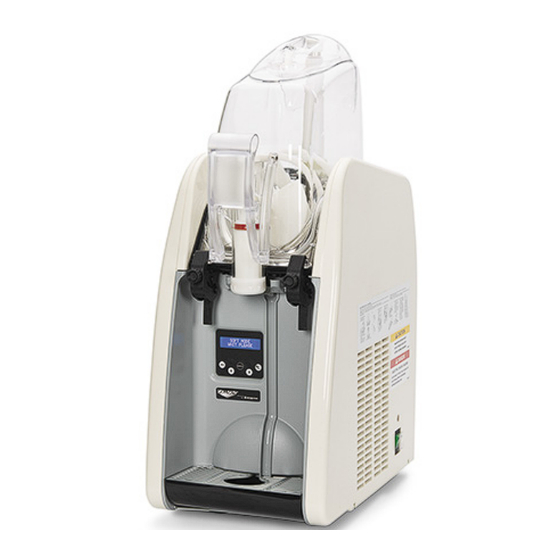

Stoelting mini soft serve countertop freezer
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Stoelting
SAFETY PRECAUTIONS
To ensure safe operation, read the following statements and understand
their meaning. This manual contains safety precautions which are
explained below. Please read carefully.
WARNING
Warning is used to indicate the presence of a hazard that will or can
cause severe personal injury or death.
CAUTION
Caution is used to indicate the presence of a hazard that will or can
cause minor or major personal injury if the caution is ignored.
NOTICE: Notice is used to note information that is important but not
hazard-related.
• Know the machine. Read and understand the Operating Instructions.
• Notice all warning labels on the machine.
• Wear proper shoes and clothing. Avoid loose fitting garments, and
remove watches, rings or jewelry that could cause a serious acci-
dent. Do not operate with wet hands or feet.
• Plug only into grounded electrical outlets matching the nameplate
voltage. Each unit shall be on a dedicated circuit.
• Do not allow children to use the machine.
• Maintain a clean work area. Avoid accidents by cleaning up the area
and keeping it clean.
• Stay alert at all times. Know which switch, push button or control
you are about to use and what effect it is going to have.
• Unplug the machine before performing maintenance. Never attempt
to repair or perform maintenance on the machine until the main
electrical power has been disconnected. Unplug the machine at the
plug. Do not pull the electrical cord to disconnect the machine from
the power source.
• Do not operate under unsafe operating conditions. Never operate the
machine if unusual or excessive noise or vibration occurs.
FUNCTION AND PURPOSE
®
The Stoelting
Mini Soft Serve Countertop Freezer is designed to freeze
and serve commercial soft serve or non-dairy mixes, including: ice
milk, ice cream, yogurt, and frozen dietary desserts. This equipment is
not intended for household, industrial or laboratory use. Indoor use
only.
®
Mini Soft Serve Countertop Freezer
Item No.
CBB116-37 CBB116 Stoelting

Table of Contents

Features and Controls Overview.................................. page 2
Installation................................................................... page 3
Before First Use............................................................ page 3
Operation..................................................................... page 4
Disassemble and Assemble the Machine..................... page 5
Advanced Settings....................................................... page 6
Maintenance................................................................ page 6
Troubleshooting.......................................................... page 7
Please register your product at Vollrath.com
©
2015 The Vollrath Company L.L.C.
Operator's Manual
Model Description
®
Mini Soft
Serve Countertop
Freezer
Part No. 26198-1
Voltage Amps
Plug
115
10
NEMA
5-15P
10/9/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBB116 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vollrath CBB116

Summary of Contents for Vollrath CBB116

  • Page 1: Table Of Contents

    This equipment is not intended for household, industrial or laboratory use. Indoor use only. Please register your product at Vollrath.com © 2015 The Vollrath Company L.L.C. Part No. 26198-1...

  • Page 2: Features And Controls Overview

    FEATURES AND CONTROLS OVERVIEW A High Pressure Indicator Light. Illuminates when airflow is restricted. B Power Button. Turns the machine On and Off. C Mode Button. Selects refrigeration modes. SOFT. Prepare the mix for serving. NIGHT MODE MAN. Manually enters the machine into Night Mode.

  • Page 3: Installation

    1. Press 2. Press to navigate to DATE. BEFORE FIRST USE Before you use the machine for the very first time, Vollrath recom- 3. Press to select. The date format is DD/MM/YYYY. mends washing and sanitizing the components in the machine.

  • Page 4: Operation

    OPERATION Sanitize the Machine Manual Night Mode (optional) NOTICE: The United States Department of Agriculture and the Food At the end of the day or between peak serving times the machine can and Drug Administration require that all cleaning and manually be put into Night Mode.

  • Page 5: Disassemble And Assemble The Machine

    DISASSEMBLE AND ASSEMBLE THE MACHINE Disassemble the Machine Horizontal Auger L Vertical Auger A Rosette Cap E Clear Bowl J Gear M Gear B Bowl Fastening Knob and Clamp F Pivot Arm K Fastening Nut C Spigot G Condensation Tray 8.

  • Page 6: Advanced Settings

    Reassemble the Machine and Lubricate Components ADVANCED SETTINGS All parts should be cleaned, sanitized and allowed to air dry before assembling. Lock the Control Panel NOTICE: Total Blend, Petrol-Gel or equivalent sanitary lubricant must be used when lubrication of machine parts is The control panel can be locked to prevent accidental or unauthorized specified.

  • Page 7: Troubleshooting

    4. Plug in and turn on the machine. 5. Press the pressure reset switch, located on the bottom of the machine below the power switch. 6. If the problem persists, contact Vollrath Technical Services. ® Stoelting Mini Soft Serve Countertop Freezer Operator’s Manual...
  • Page 8 WARRANTY STATEMENT FOR THE VOLLRATH CO. L.L.C. This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchasers for such uses.
