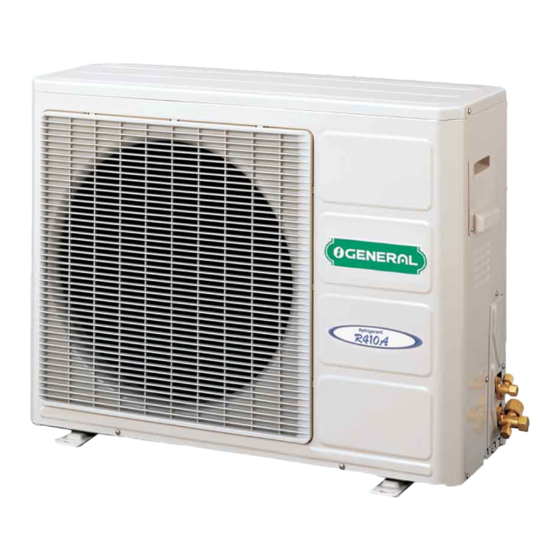

General ABG18FBBJ Service Manual

Hide thumbs Also See for ABG18FBBJ:

Advertisement

Table of Contents

www.enindel.com
SPLIT TYPE
ROOM AIR CONDITIONER
FLOOR CONSOLE /
UNDER CEILING
DUAL
type
Models
Indoor unit
Outdoor unit
ABG18FBBJ
AOG18FNBK
ABG18FBBJ
AOG18FNBN
ABG18UBBJ
AOG18UNBKL
ABG18UBBJ
AOG18UNBNL
ABG24FBBJ
AOG24FNBK
ABG24FBBJ
AOG24FNBN
ABG24UBBJ
AOG24UNBKL
ABG24UBBJ
AOG24UNBNL
CON TEN TS
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . 1
OUTLINE AND DIMENSIONS . . . . . . . . . . 3
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . 7
ERROR DISPLAY
. . . . . . . . . . . . . . . . . . . . 11
DISASSEMBLY ILLUSTRATION . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . . 25
. . . . . . 9
. . . . . . . . . . 29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ABG18FBBJ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for General ABG18FBBJ

Summary of Contents for General ABG18FBBJ

  • Page 1: Table Of Contents

    SPLIT TYPE ROOM AIR CONDITIONER FLOOR CONSOLE / UNDER CEILING DUAL type Models Indoor unit Outdoor unit ABG18FBBJ AOG18FNBK ABG18FBBJ AOG18FNBN ABG18UBBJ AOG18UNBKL ABG18UBBJ AOG18UNBNL ABG24FBBJ AOG24FNBK ABG24FBBJ AOG24FNBN ABG24UBBJ AOG24UNBKL ABG24UBBJ AOG24UNBNL CON TEN TS SPECIFICATIONS ....1 OUTLINE AND DIMENSIONS .

  • Page 2: Specifications

    SPEC IFICATIONS Cooling TYPE ABG18FBBJ ABG24FBBJ INDOOR UNIT AOG18FNBK AOG24FNBK OUTDOOR UNIT AOG18FNBN AOG24FNBN 5.40 kW 6.50 kW COOLING CAPACITY ELECTRICAL DATA 230 V 230 V POWER SOURCE 50 Hz 50 Hz FREQUENCY 8.5 A 11.0 A RUNNING CURRENT 1.92 kW 2.45 kW...
  • Page 3 Cool and Heat TYPE INDOOR UNIT ABG18UBBJ ABG24UBBJ AOG18UNBKL AOG24UNBKL OUTDOOR UNIT AOG18UNBNL AOG24UNBNL 5.40 kW 6.50 kW COOLING CAPACITY 6.00 kW 7.40 kW HEATING CAPACITY ELECTRICAL DATA 230 V POWER SOURCE 50 Hz FREQUENCY 8.6 A 10.8 A COOLING RUNNING CURRENT 8.3 A 10.3 A...

  • Page 4: Outline And Dimensions

    OUT L IN E AN D D IM ENSI ONS INDOOR UNIT Unit : mm (rear view) www.enindel.com 2006.07.21...
  • Page 5 OUTDOOR UNIT Unit : mm Air flow Bottom www.enindel.com 2006.07.21...

  • Page 6: Refrigerant System Diagram

    REFR I G E RAN T S Y STEM DI AG RA M Models : ABG18FBBJ / AOG18FNBK ABG18FBBJ / AOG18FNBN OUTDOOR UNIT INDOOR UNIT Refrigerant pipe 6.35 mm (1/4") Capillary tube Strainer Condenser Evaporator Refrigerant pipe 15.88 mm (5/8")
  • Page 7 Models : ABG18UBBJ / AOG18UNBKL ABG18UBBJ / AOG18UNBNL INDOOR UNIT OUTDOOR UNIT Capillary tube Strainer Refrigerant pipe 6.35mm(1/4") Compressor Evaporator Condenser Refrigerant pipe 15.88mm(5/8") 4-Way valve Charging valve Models : ABG24UBBJ / AOG24UNBKL ABG24UBBJ / AOG24UNBNL INDOOR UNIT OUTDOOR UNIT Capillary Strainer tube...

  • Page 8: Circuit Diagram

    C IRC UIT D IAGRAM ROOM TEMPERATURE INDOOR UNIT THERMISTOR PIPE TEMPERATURE Models : THERMISTOR ABG18FBBJ / AOG18FNBK ABG18FBBJ / AOG18FNBN ABG24FBBJ / AOG24FNBK ABG24FBBJ / AOG24FNBN CN201 WHITE BROWN FAN MOTOR WHITE CAPACITOR ORANGE YELLOW CN13 BROWN WHITE BLUE...
  • Page 9 Models : ROOM TEMPERATURE ABG18UBBJ / AOG18UNBKL THERMISTOR ABG18UBBJ / AOG18UNBNL PIPE TEMPERATURE ABG24UBBJ / AOG24UNBKL THERMISTOR ABG24UBBJ / AOG24UNBNL WHITE CN201 WHITE BROWN FAN MOTOR CAPACITOR ORANGE YELLOW BROWN WHITE ORANGE BLUE PURPLE YELLOW GRAY WHITE STEP MOTOR ( UP / DOWN ) BLACK BROWN MOTOR...

  • Page 10: Indoor Pcb Circuit Diagram

    IND OOR P CB CIRCUIT D IAGR AM Controller PCB Assy ABG18FBBJ : EZ-002YWSE-C ABG24FBBJ : EZ-002TWSE-C R15 - R17 ROOM TEMPERATURE THERMISTOR B2B-XASK-1-A WHITE 10K <1/10W> x 3 R5 62K CN8-1 BLACK 4700P <2W> R18 1.0K <1/10W> CN8-2 NOT USED BLACK R19 1.0K <1/10W>...
  • Page 11 Controller PCB Assy ABG18UBBJ : EZ-00211HSE-C ABG24UBBJ : EZ-00210HSE-C R15 - R17 B2B-XASK-1-A ROOM TEMPERATURE THERMISTOR WHITE 10K <1/10W> x 3 R5 62K CN8-1 BLACK <2W> 4700P R18 1.0K <1/10W> CN8-2 NOT USED BLACK R19 1.0K <1/10W> R44 1.0K CUSTOM CODE SWITCHING (R1) B2B-XAKK-1-A PIPE TEMPERATURE THERMISTOR BLACK...
  • Page 12 DISASSE MBL Y ASSEMB LY INDOOR UNIT 653-2 365-2 365-1 870-1 365-2 870-1 653-2 365-1 www.enindel.com 2006.07.24...
  • Page 13 870-2 196-1 574-2 588-2 184-1 574-1 588-1 www.enindel.com 2006.07.24...
  • Page 14 653-1 www.enindel.com 2006.07.25...
  • Page 15 www.enindel.com 2006.07.25...
  • Page 16 Model : ABG18FBBJ 652-1 OPTIONAL PARTS Models : ABG18UBBJ ABG24FBBJ ABG24UBBJ 652-1 OPTIONAL PARTS www.enindel.com 2006.09.04...
  • Page 17 187-1 824-3 731-2 629-1 36-2 www.enindel.com 2006.07.25...
  • Page 18 www.enindel.com 2006.07.25...
  • Page 19 OUTDOOR UNIT www.enindel.com 2006.07.25...
  • Page 20 www.enindel.com 2006.07.25...
  • Page 21 Models : AOG18FNBK AOG18FNBN AOG24FNBK AOG24FNBN 218-3 823-2 824-4 989-1 989-2 Models : AOG18UNBKL AOG18UNBNL AOG24UNBKL AOG24UNBNL 218-3 823-2 824-4 815-3 989-1 989-2 www.enindel.com 2006.09.04...
  • Page 22 Models : AOG18FNBK AOG18FNBN 58-1 47-1 348-1 Models : AOG18UNBKL AOG18UNBNL 20-1 772-1 772-4 772-3 178-2 178-2 178-2 772-2 20-2 826-1 www.enindel.com 2006.09.04...
  • Page 23 Models : AOG24FNBK AOG24FNBN 47-1 58-1 178-2 348-1 www.enindel.com 2006.09.04...
  • Page 24 Models : AOG24UNBKL AOG24UNBNL 58-2 58-1 58-3 772-1 178-2 20-1 20-2 772-2 178-2 826-1 www.enindel.com 2006.09.04...

  • Page 25: Parts List

    PARTS L IST INDOOR UNIT Part No. Ref. Ord. Description Q'ty ABG18FBBJ ABG18UBBJ ABG24FBBJ ABG24UBBJ Air Filter 9358567029 9358567029 9358567029 9358567029 Capacitor (Fan Motor) 9703306044 9703306044 9703306044 9703306044 36-2 Cord Holder Metal 9356362008 9356362008 9356362008 9356362008 Sirocco Fan Assy 9385258006...
  • Page 26 INDOOR UNIT (Continued) Part No. Ref. Ord. Description Q'ty ABG18FBBJ ABG18UBBJ ABG24FBBJ ABG24UBBJ Protect Cover 9358564004 9358564004 9358564004 9358564004 Support Stay 9358599006 9358599006 9358599006 9358599006 Louver Shaft 9358557006 9358557006 9358557006 9358557006 Louver Stopper 9358555002 9358555002 9358555002 9358555002 Louver Rod 9358559000...
  • Page 27 OUTDOOR UNIT Part No. Ref. Ord. Description AOG18FNBK AOG24FNBK Q'ty AOG18FNBN AOG24FNBN Fan Guard 9371187013 9371187013 Emblem-Rear 9372171011 9372171011 Front Panel Ptd 9371924014 9371924014 Connector Cover (Cabinet) 9366398004 9366398004 Wire Assy (Comp) 9372334010 9372334010 Side Panel R Ptd 9371927015 9371927015 Base Assy, Ptd 9371920054 9371920016...
  • Page 28 OUTDOOR UNIT Part No. Ref. Ord. Description AOG18UNBKL AOG24UNBKL Q'ty AOG18UNBNL AOG24UNBNL Fan Guard 9371187013 9371187013 Emblem-Rear 9372171011 9372171011 Front Panel Ptd 9371924014 9371924014 Connector Cover (Cabinet) 9366398004 9366398004 Wire Assy (Comp) 9372334010 9372334010 Side Panel R Ptd 9371927015 9371927015 Base Assy, Ptd 9371920054 9371920016...

  • Page 29: Standard Accessories

    STANDAR D A CC E SS O R IE S The following installation parts are furnished. Use them as required. INDOOR UNIT ACCESSORIES Name and Shape Q'ty Application Parts No. Name and Shape Q'ty Application Parts No. Cover plate (left) Drain hose 9358536018 9359242000...
  • Page 30 0401G2479 www.enindel.com...
