Cord Sets And Connection Plugs; Vac, 20 Amp, Duplex Receptacle - Generac Power Systems 005724-1 Owner's Manual

6. Grounding Lug – Ground the generator to an approved earth
ground here. See "Grounding the Generator" for details.
7. On/OFF Switch – Controls the operation of the generator.
8. Muffler – Quiets the engine.
9. Handle – Pivot and retract for storage.
10. Gas Cap – Fuel fill location.
11. Fuel Gauge – Shows fuel level in tank.
12. Oil Check/Fill – Check and fill oil here.
13. Recoil Starter – Use to start engine manually.
14. Fuel Shut Off – Valve between fuel tank and carburetor.
15. Oil Drain Plug – Used to drain engine oil.
16. Spark Arrestor – Reduces fire hazard by containing sparks.

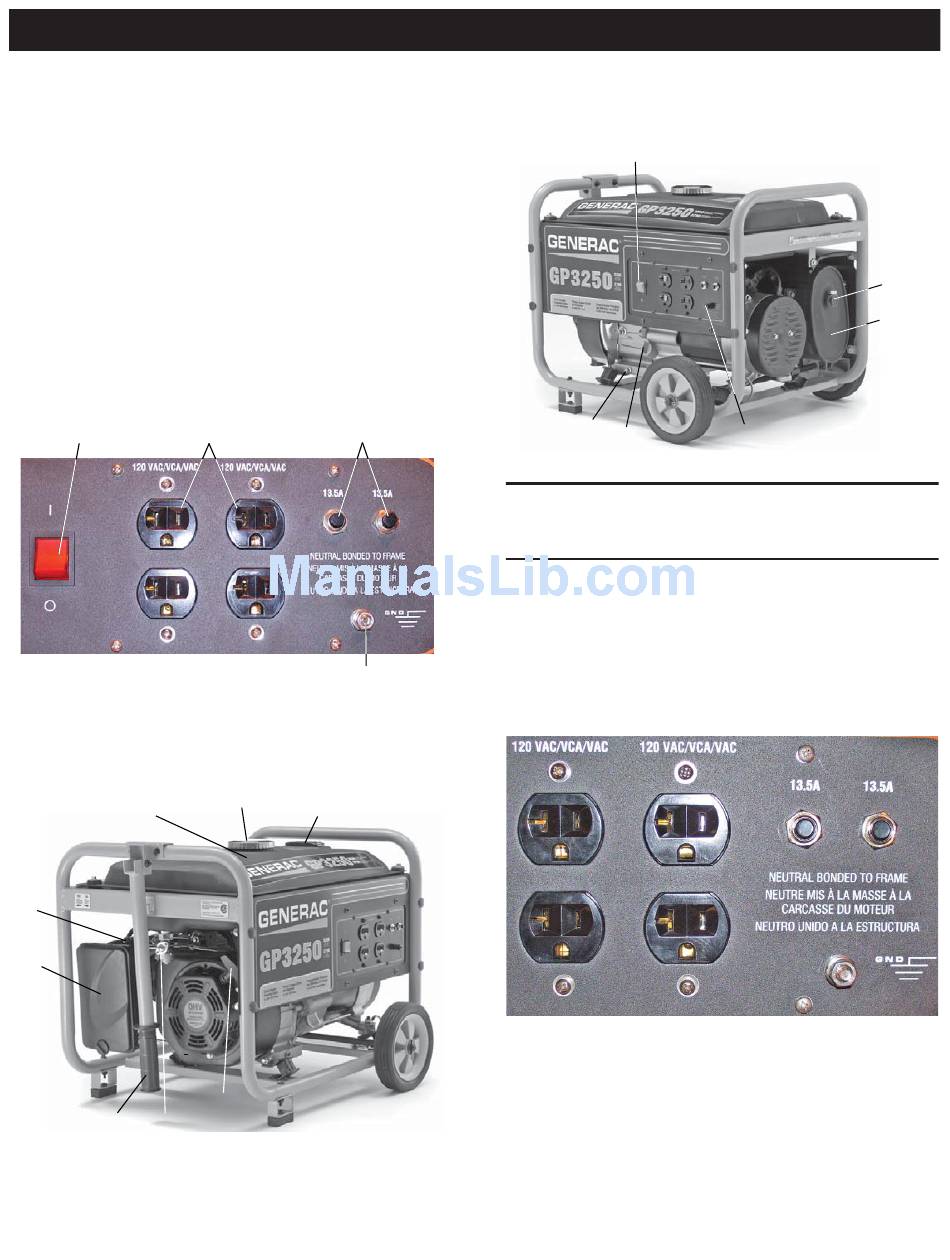

Figure 3 - Control Panel
7
Figure 4 - Generator Controls
5
4
3
9
14
1 2
6
10
11
13
Figure 5 - Generator Controls
7
15
12

2.2 CORD SETS AND CONNECTION PLUGS

2.2.1 120 VAC, 20 AMP, DUPLEX RECEPTACLE

This is a 120 Volt outlet protected against overload by a 13.5 Amp
push-to-reset circuit breaker (Figure 6). 13.5 Amps of current may
be drawn from each socket, however, total power drawn must be
kept within data plate ratings. Use only high quality, well insulated,
3-wire grounded cord sets rated for 125 Volts at 20 Amps (or
greater).
Figure 6 - 120 Volt AC, 20 Amp, Duplex Receptacle
Operation
16
18
6
5
