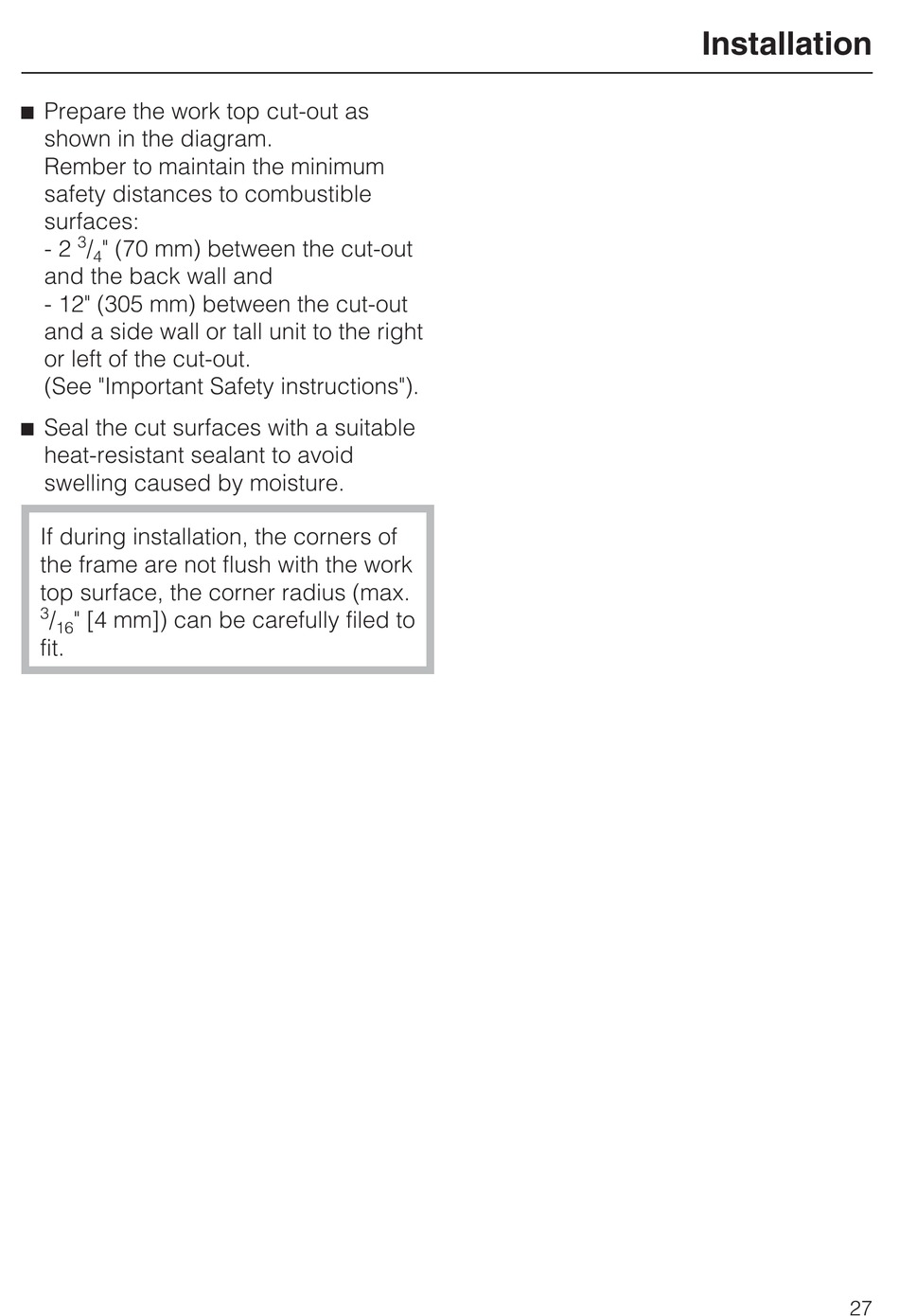

^ Prepare the work top cut-out as
shown in the diagram.
Rember to maintain the minimum
safety distances to combustible
surfaces:
3
- 2 / " (70 mm) between the cut-out
4
and the back wall and
- 12" (305 mm) between the cut-out
and a side wall or tall unit to the right
or left of the cut-out.
(See "Important Safety instructions").
^ Seal the cut surfaces with a suitable
heat-resistant sealant to avoid
swelling caused by moisture.
If during installation, the corners of
the frame are not flush with the work
top surface, the corner radius (max.
3
/ " [4 mm]) can be carefully filed to
16
fit.
