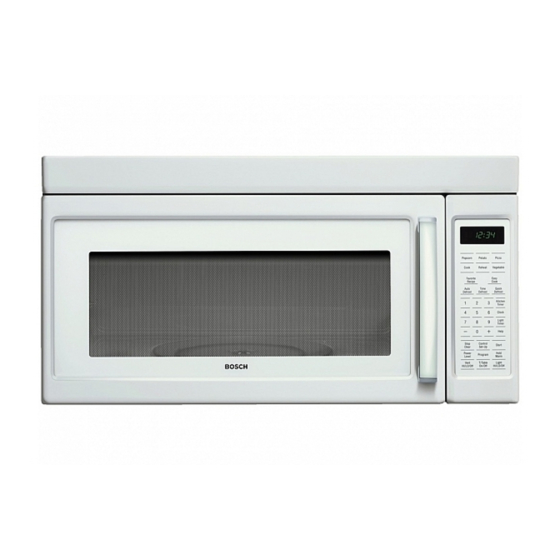

Bosch HMV9302 Installation Instructions Manual
Over-the-range microwave
Hide thumbs
Also See for HMV9302:
- Use and care manual (63 pages) ,
- Installation instructions manual (36 pages) ,
- Service manual (44 pages)
Table of Contents
Advertisement
Quick Links
Household Appliances
Over-the-Range Microwave
Installation Instructions
For Models: HMV9302, HMV9305, HMV9306, HMV9307
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
IMPORTANT: Save these instructions for the local electrical inspector's use.
INSTALLER: Please leave these Installation Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Advertisement
Table of Contents
Related Manuals for Bosch HMV9302
Summary of Contents for Bosch HMV9302
- Page 1 Household Appliances Over-the-Range Microwave Installation Instructions For Models: HMV9302, HMV9305, HMV9306, HMV9307 PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING IMPORTANT: Save these instructions for the local electrical inspector’s use. INSTALLER: Please leave these Installation Instructions with this unit for the owner.
-
Page 2: Your Safety First
YOUR SAFETY FIRST BEFORE YOU START • Proper installation is the installer's responsibility! – Read the entire manual before you begin. The Model number label is located on the oven front. See Figure 1. Mounting plate is located on back side of microwave oven. See Figure 2. BE SURE TO READ THE FOLLOWING SAFETY INSTRUCTIONS: Model Number Label Mounting... - Page 3 YOUR SAFETY FIRST • THIS APPLIANCE MUST BE GROUNDED! – If there is an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. •...
- Page 4 YOUR SAFETY FIRST • MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT. – Mount the oven against a flat, vertical wall, so it is supported by the wall. The wall should be constructed of minimum 2" x 4" wood studding and 3/8" thick drywall or plaster/lath. –...
-
Page 5: Parts, Tools, Materials
PARTS, TOOLS, MATERIALS THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN: NOTE: Depending on your ventilation requirements, you may not use all of these parts. Damper/duct connector One power cord clamp and (for roof vented or wall vented installation) One dark-colored mounting screw Not Actual Size (to hold the power cord) Actual Size... - Page 6 PARTS, TOOLS, MATERIALS YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE INSTALLATION: Carton or other heavy material for covering the counter top. Clear tape Stud finder or thin nail. (for taping the templates to the wall) Keyhole saw (for the power cord hole) Saber saw (for cutting vent holes for roof or wall venting) Electric drill...
-
Page 7: Step 1: Electrical Connections
STEP 1: PREPARE THE ELECTRICAL CONNECTIONS W A R N I N G AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED! 1. Locate the grounded electric outlet for this oven in the cabinet above the oven, as shown in Figure 4 Detail. Upper NOTE: The outlet should be on a circuit dedicated to the Cabinet... -
Page 8: Step 2: Prepare The Venting System
STEP 2: PREPARE THE VENTING SYSTEM NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork fittings and length are shown in Figure 9, page 9. W A R N I N G : F I R E H A Z A R D THIS OVEN MUST BE PROPERLY VENTED! You may vent your oven in one of three ways: Roof-venting If your oven is located on an outside wall near the roof, as in Figures 5 (3... -
Page 9: Standard Fittings
STEP 2: PREPARE THE VENTING SYSYTEM STANDARD FITTINGS NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3" extension duct installed between the damper assembly and the adapter to prevent the exhaust damper’s sticking. DUCT LENGTH The total length of the duct system, including straight duct, elbows, transitions, wall or roof caps must not exceed the equivalent of 140 feet. -
Page 10: Step 3: Prepare The Venting Blower
STEP 3: PREPARE THE VENTING BLOWER Your microwave oven is shipped with the blower assembled for roof venting. You need to adjust the blower if you want wall-venting or room-vented (recirculating) installation. W A R N I N G ELECTRICAL SHOCK HAZARD! UNPLUG UNIT BEFORE WORKING ON IT. •... -
Page 11: Wall-Vented Installation
STEP 3: PREPARE THE VENTING BLOWER WALL-VENTED INSTALLATION: back plate blower unit 1. Remove one blower unit mounting screw and one blower plate screw. Remove the blower plate from cabinet. See Figure 13. blower plate mounting screws 2. Carefully lift the blower unit out of the microwave oven. 3. - Page 12 STEP 3: PREPARE THE VENTING BLOWER blower plate mounting screws exhaust ports blower unit exhaust ports Figure 17 blower unit mounting screws Figure 18 ROOM-VENTED (Recirculating) INSTALLATION: 1. Remove one blower unit mounting screw and one blower plate screw. Remove the blower plate from blower unit cabinet.
-
Page 13: Step 4: Prepare The Wall And Upper Cabinet For Installation
STEP 4: PREPARE THE WALL AND UPPER CABINET FOR INSTALLATION MEASURE AND TACK / TAPE UP THE TEMPLATES 1. Using a plumb line and (metal) measuring tape, find and mark the vertical center line on the back wall, as in Figure 22. - Page 14 STEP 4: PREPARE THE WALL AND UPPER CABINET FOR INSTALLATION DRILLING THE HOLES IN THE WALL AND UPPER CABINET: W A R N I N G BE VERY CAREFUL WHEN DRILLING HOLES INTO THE WALL. Electrical wires could be concealed behind the wall covering and if the drill hits them you could get an electric shock.
- Page 15 STEP 5: INSTALL THE MOUNTING PLATE TO THE WALL CONNECTING THE OVEN TO A WALL STUD: 3/16" Hole on Studs 3/4" Hole on Drywall Only NOTE: The oven must be connected to at least one wall stud. " Minimum 66 From the Floor 1.
- Page 16 STEP 5: INSTALL THE MOUNTING PLATE TO THE WALL TO PREPARE THE REAR WALL CUTOUT OPENING AND EXHAUST ADAPTOR/MOUNTING PLATE FOR WALL-VENTED: 1. Place the mounting plate against the rear wall as described in step 5 item 1 (page 15). 2.
-
Page 17: Step 6: Attach The Oven To The Wall
STEP 6: ATTACH THE OVEN TO THE WALL W A R N I N G power cord You will need two people to lift this microwave. Failure to use more than one person could result in power cord personal injury. hole 1. - Page 18 STEP 6: ATTACH THE OVEN TO THE WALL 5. Roof vented installation: See Figure 32 Install ductwork through the vent opening in the upper damper cabinet. Complete the venting system through the roof according to the method needed. See “PREPARE THE VENTING SYSTEM,” step 2 on the page 8.
- Page 19 Installation Notes...
- Page 20 Printed in Korea P/No.: 3828W5U0310...
