INSTALLATION
MANUAL
R410A Split Series
Models
FLXS25BVMB
FLXS35BVMB
FLXS50BVMB
FLXS60BVMB
FLX25BVMB
FLX35BVMB
FLXS25BAVMB FLKS25BAVMB
FLXS35BAVMB FLKS35BAVMB
FLXS50BAVMB FLKS50BAVMB
FLXS60BAVMB FLKS60BAVMB
FLKS25BVMB
FLKS35BVMB
FLKS50BVMB
FLKS60BVMB
FLK25BVMB
FLK35BVMB
Installationsanleitung
Split-Baureihe R410A
Manuel d'installation
Montagehandleiding
R410A Split-systeem
Manual de instalación
Manuale d'installazione
Serie Multiambienti R410A
Εγχειρßδιο εγκατÜστασηò
διαιροýìενηò σειρÜò R410A
Manual de Instalação
Рóêоводство по монтажó
Серия R410A с раздельной óстановêой
Installation manual
English
R410A Split series
Deutsch
Français
Série split R410A
Nederlands
Español
Serie Split R410A
Italiano
ΕλληνικÜ
Portugues
Série split R410A
Рóссêий

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLXS25BVMB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Daikin FLXS25BVMB

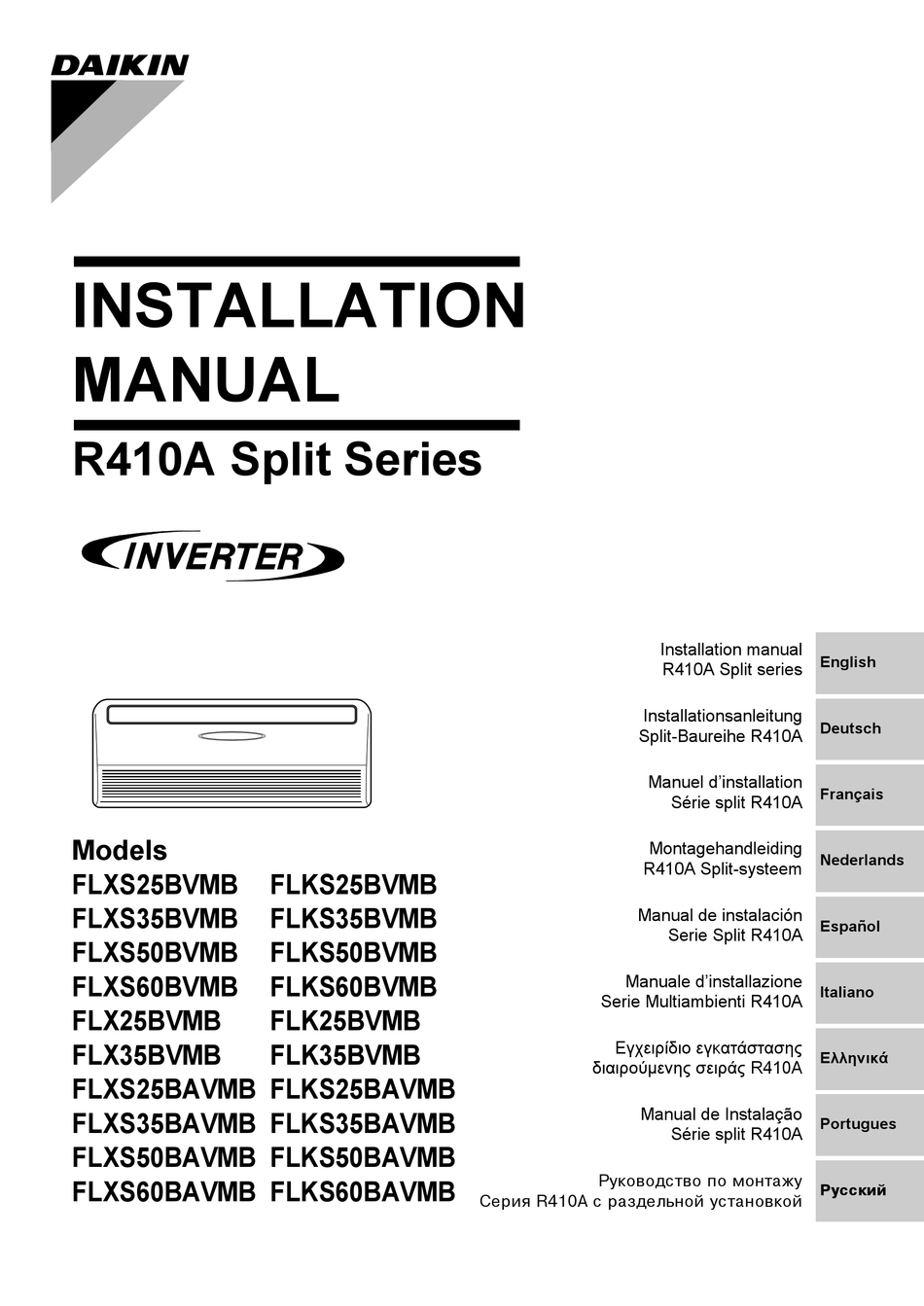

  • Page 1 Installation manual English R410A Split series Installationsanleitung Deutsch Split-Baureihe R410A Manuel d’installation Français Série split R410A Models Montagehandleiding Nederlands R410A Split-systeem FLXS25BVMB FLKS25BVMB FLXS35BVMB FLKS35BVMB Manual de instalación Español Serie Split R410A FLXS50BVMB FLKS50BVMB FLXS60BVMB FLKS60BVMB Manuale d’installazione Italiano Serie Multiambienti R410A...
  • Page 2 3SB64526-4...
  • Page 3: Safety Precautions

    Safety Precautions • Read these Safety Precautions carefully to ensure correct installation. • This manual classifies the precautions into WARNING and CAUTION. Be sure to follow all the precautions below: they are all important for ensuring safety. WARNING....Failure to follow any of WARNING is likely to result in such grave consequences as death or serious injury. CAUTION....Failure to follow any of CAUTION may result in grave consequences in some cases.
  • Page 4: Choosing An Installation Site

    Accessories – Indoor unit Heat insulation tube Mounting plate AAA dry-cell batteries (Extension auxiliary pipe) Heat insulation tube Photocatalytic deodorizing filter Side covers (Refrigerant pipe) Air purifying filter Operation manual Binding bands Wireless remote controller Installation manual Remote controller holder Extension auxiliary pipe •...
  • Page 5: Before Installing The Indoor Unit

    Before Installing the Indoor Unit Perform the following before installing the indoor unit. 1) Open the air inlet grille and the screw cover, and remove the 7 screws. 2) Release the claws in the 3 places indicated. 3) Release the center hook and remove the front panel. Screw cover 4) Release the claws in the 2 places indicated and remove Electric...
  • Page 6: Indoor Unit Installation Drawings

    Indoor Unit Installation Drawings There should be no space Space for installation work between ceiling and the unit. Min. (200mm) Space for installation work Min. (200mm) 50mm or more Air filters from walls Mounting plate The mounting plate Screws should be installed on a wall which can (Field supply: M4 ×...
  • Page 7: Ceiling Mounting

    Indoor Unit Installation Drawings Ceiling mounting. Local drain pipe Rear side pipinghole ø65mm Ceiling Ceiling Wall *1 Determine the position of the Rear side drainhose hole ø40mm feed-through hole so that the local piping is placed in a 1,050 downward sloping direction. Right side piping hole ø65mm Drain hose...
  • Page 8: Indoor Unit Installation

    Indoor Unit Installation Ceiling Mounting Installing the suspension bolt. 1) Install the suspension bolt so that it can support the indoor unit; adjust distance to ceiling before installation. 2) Mount the indoor unit according to the installation drawings and tighten it securely with M10 nut. (4 places) 3) After mounting the indoor unit on the ceiling, install each part as shown in the diagram on the right.
  • Page 9 Indoor Unit Installation Wall Mounting Installation. • Install the indoor unit on the wall according to the installation drawings. 1) Hang the indoor unit on the hooks of mounting plate. (2 places) 2) Fix the three holes in the lower portion of the indoor unit with M4 × 25L screws. Mounting plate J Side cover (6 claws)
  • Page 10 Installing indoor unit. 1) Connect the extension auxiliary pipe ( , supplied) to the local pip- Note: ing. Remove the bottom frame cover for right-back piping before installing the indoor unit. (Applies to both ceiling mounting and wall mounting units.) 2) Prepare the local piping at the connection point for the drain pipe, as shown in the installation drawings.
  • Page 11: Drain Piping

    Indoor Unit Installation Insulation of refrigerant pipes. After checking for refrigerant leaks • Joints in liquid pipe and the gas pipe must be insulated with heat insulation tube attached with binding bands. • Cut heat insulation tube to appropriate length. Binding band Heat insulation tube Drain piping.
  • Page 12: Refrigerant Piping Work

    Refrigerant Piping Work , install as described in the installation manual supplied with the Multi outdoor unit. With a Multi indoor unit Flaring the pipe end. 1) Cut the pipe end with a pipe cutter. (Cut exactly at right angles.) Remove burrs 2) Remove burrs with the cut surface facing down- ward so that the chips do not enter the pipe.
  • Page 13 Refrigerant Piping Work 2-2. Selection of Copper and Heat Insulation materials Inter-unit wiring • When using commercial copper pipes and fittings, observe the following: Gas pipe 1) Insulation material: Polyethylene foam Liquid pipe Heat transfer rate: 0.041 to 0.052W/mK (0.035 to 0.045kcal/mh°C) Refrigerant gas pipe’s surface temperature reaches 110°C max.
  • Page 14: Trial Operation And Testing

    Trial Operation and Testing Trial operation and testing. 1-1 Measure the supply voltage and make sure that it falls in the specified range. 1-2 Trial operation should be carried out in either cooling or heating mode. ■ For Heat pump •...
  • Page 15 Two-dimensional bar code is a code for manufacturing. 3P171284-2D M02B074J (1010) HT...
