PRO SERIES
Utility Cart
Owners
Manual
Model GW1371D
• Important Safety Instructions
• Assembly Instructions
• Parts and Hardware Identification
CAUTION:
Read, understand and follow ALL instructions before using this product.
WARNING:
Not for recreational use. Persons should never ride in the Cart.
Questions, problems, or missing parts? Before returning to your retailer, visit us
online at www.tricam.com and complete the replacement parts submission form or
call our customer service department at 1-800-867-6763,
9 a.m. - 4 p.m., CST, Monday-Friday.
For product inquiries:
Tricam
7677 Equitable Drive
Eden Prairie, MN 55344
800-867-6763
www.tricam.com
U.S. Patents: 7,210,697 & 7,441,792
Canada Patent: 2,503,869
Other U.S. and Foreign Patents Pending
10/12
Advertisement
Table of Contents
Related Manuals for Ground Work GW1371D
Summary of Contents for Ground Work GW1371D

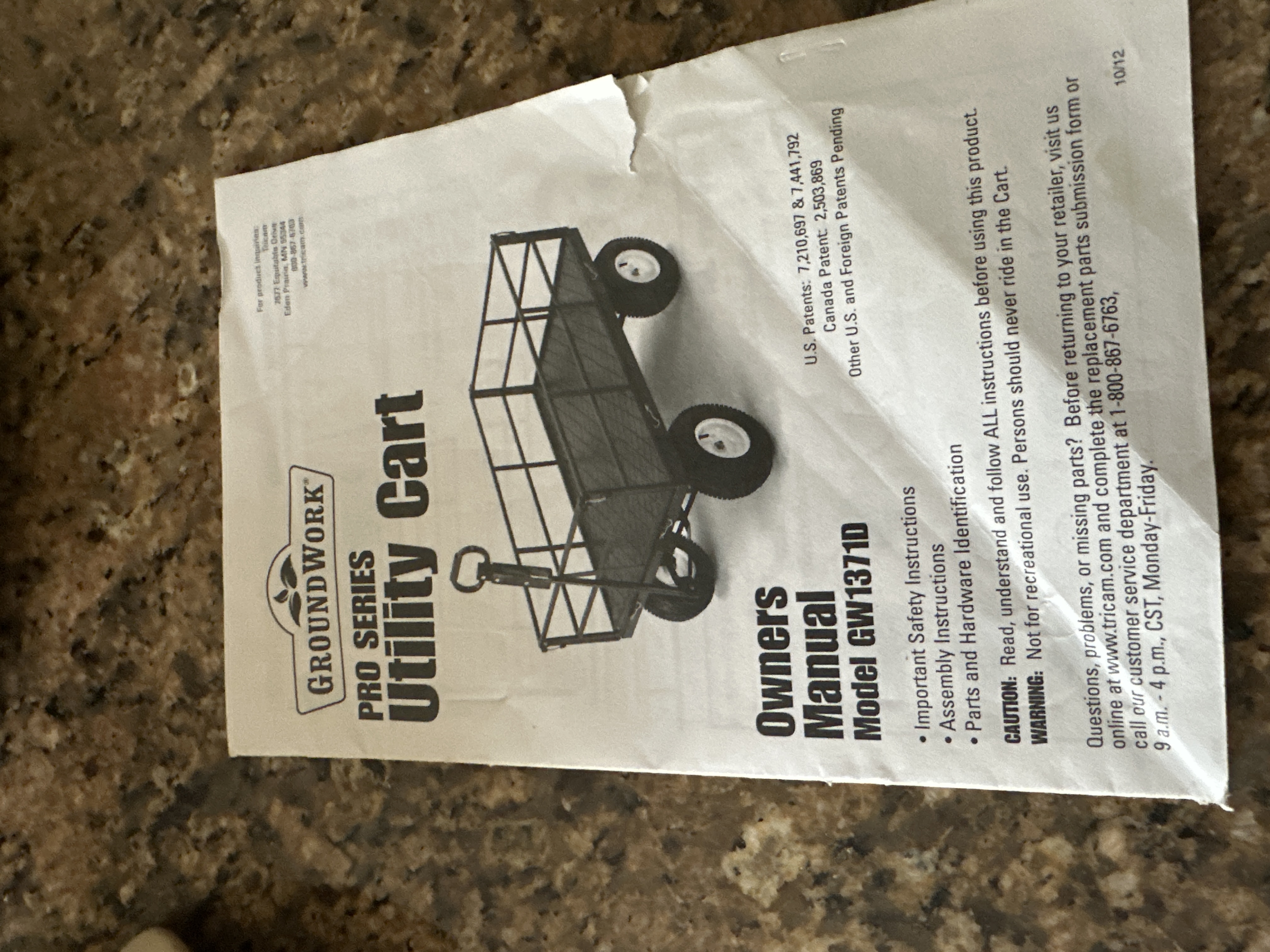

- Page 1 PRO SERIES Utility Cart Owners Manual U.S. Patents: 7,210,697 & 7,441,792 Canada Patent: 2,503,869 Model GW1371D Other U.S. and Foreign Patents Pending • Important Safety Instructions • Assembly Instructions • Parts and Hardware Identification CAUTION: Read, understand and follow ALL instructions before using this product.
- Page 2 Exploded Drawing for Assembly Parts List A. Bed (1) B. Side Panels (2) C. Front Panel (1) D. Back Panel (1) E. 13in (33cm) Wheels (4) Front Axle Sub-Assembly (1) G. Yoke (1) H. Front Struts (2) Front Axle Connection Bar (1) J.
- Page 3 Important Safety Instructions R R E E A A D D A A L L L L I I N N S S T T R R U U C C T T I I O O N N S S C C A A R R E E F F U U L L L L Y Y B B E E F F O O R R E E U U S S E E . . If you do not understand these instructions, need clarification or further explanation, please call our toll free answer line for assistance at 1 1 - - 8 8 0 0 0 0 - - 8 8 6 6 7 7 - - 6 6 7 7 6 6 3 3 Monday through Friday 9:00 a.m.
- Page 4 Step 2 Attach the front axle sub-assembly and front struts to the bed. A. Locate the front of the bed. Place the front axle sub-assembly on the bed. Secure to the bed by using M8x20 carriage bolts (2), M8 washers (2), and M8 lock nuts (2).
- Page 5 Step 4 Attach the connection bar to the front axle using M6x17 shoulder bolts (3), M6 washers (3), M6 lock nuts (3). Hand tighten each bolt first and once all bolts are in place tighten securely. Step 5 Attach the rear axle assembly and the rear struts to the bed using M8x20 carriage botls (4), M8 washers (4), and M8 lock nuts (4).
- Page 6 Step 7 Place the wheels onto each axle (valve stems facing out), secure using M12 wheel washers (4) and M12 lock nuts (4). Tighten all nuts securely. Turn the cart upright on all 4 wheels. Step 8 Attach the handle to the yoke using M8x60 hex bolt (1), M8 washer (1) and M8 lock nut (1).
- Page 7 CAUTION DO NOT EXCEED MAXIMUM OVERALL LOAD CAPACITY 1,200 LBS (544 KG). PERSON SHOULD NEVER RIDE IN THE UTILITY CART. WEIGHT RATING IS BASED ON AN EVENLY DISTRIBUTED LOAD. Replacement Parts List For replacement parts, please visit us online at www.tricam.com to com- plete the replacement parts submission form or call our customer service department at 1-800-867-6763, 9 a.m.
