CAUTION
DO NOT EXCEED MAXIMUM OVERALL LOAD CAPACITY OF 1,400 LBS
(635 KG). MAXIMUM DUMPING LOAD CAPACITY 500 LBS (226 KG).
WEIGHT RATING BASED ON EVENLY DISTRIBUTED LOAD.
Replacement Parts List
For replacement parts, please visit us online at www.tricam.com to com-
plete the replacement parts submission form or call our customer service
department at 1-800-867-6763, 9 a.m. - 4 p.m., CST, Monday - Friday.
B. Dump Lock Assembly (1)
C. Rear Struts (2)
D. Rear Frame (1)
E. Rear Axle Assembly (1)
F.
Front Frame (1)
G. Front Struts (2)
H. Front Axle Assembly (1)
I.
Wheel (4)
J.
Handle (1)
K. Accessory Tray (1)
L. Hardware Kit (1)
J.
H.
L.
K.
B.
C.
D.
F.
E.
G.
I.
PRO SERIES

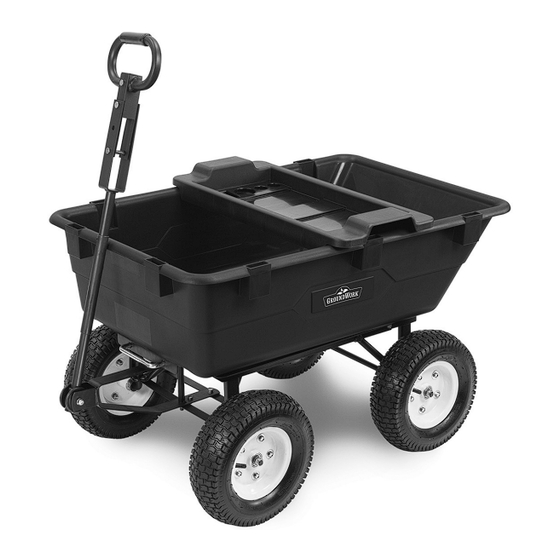

Dump Cart
Owners
Manual
Model GW0865D-1
• Important Safety Instructions
• Assembly Instructions
• Parts and Hardware Identification
CAUTION:
Read, understand and follow ALL instructions before using this product.
WARNING:
Not for recreational use. Persons should never ride in the Dump Cart.
Questions, problems, or missing parts? Before returning to your retailer, visit us
online at www.tricam.com and complete the replacement parts submission form or
call our customer service department at 1-800-867-6763,
9 a.m. - 4 p.m., CST, Monday-Friday.
For product inquiries:
Tricam
7677 Equitable Drive
Eden Prairie, MN 55344
800-867-6763
www.tricam.com
U.S. Patents: 6,851,756, 7,210,697,
7,390,065, 7,441,792, 7,818,865 & 7,887,141
Canada Patent: 2,503,869
Other U.S. and Foreign Patents Pending
9/11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ground Work GW0865D-1
Summary of Contents for Ground Work GW0865D-1
- Page 1 K. Accessory Tray (1) Manual L. Hardware Kit (1) U.S. Patents: 6,851,756, 7,210,697, 7,390,065, 7,441,792, 7,818,865 & 7,887,141 Model GW0865D-1 Canada Patent: 2,503,869 Other U.S. and Foreign Patents Pending • Important Safety Instructions • Assembly Instructions • Parts and Hardware Identification CAUTION: Read, understand and follow ALL instructions before using this product.
- Page 2 Exploded Drawing for Assembly Using the Parts List Dumping Feature A. Tray (1) To operate the dumping feature, pull the dumping release handle B. Dump Lock Assembly (1) outward to release the plastic C. Rear Struts (2) bed from the locking mechanism.
- Page 3 Step 6 Important Safety Instructions Attach the dump lock assembly to the tray using M8x20 internal button head bolts (3), M8 flat washers (6) and M8 lock nuts (3). 1. READ ALL INSTRUCTIONS BEFORE USE. If you do not understand these instructions, need further clarification or further explanation, please call our toll free If the dump lock does not engage when answer line at 1-800-867-6763, Monday through Friday, 9:00 a.m.
- Page 4 Step 4 B. Attach the rear axle Step 2 assembly with rear struts and Attach the front struts to connect the M8x25 button the rear frame to the tray using front axle assembly to the front frame head bolt M8x25 internal button head using M8x20 carriage bolts (4), M8 lock bolts (5), M8x20 internal button nuts (4), and M8 washers (4).
Need help?
Do you have a question about the GW0865D-1 and is the answer not in the manual?
Questions and answers

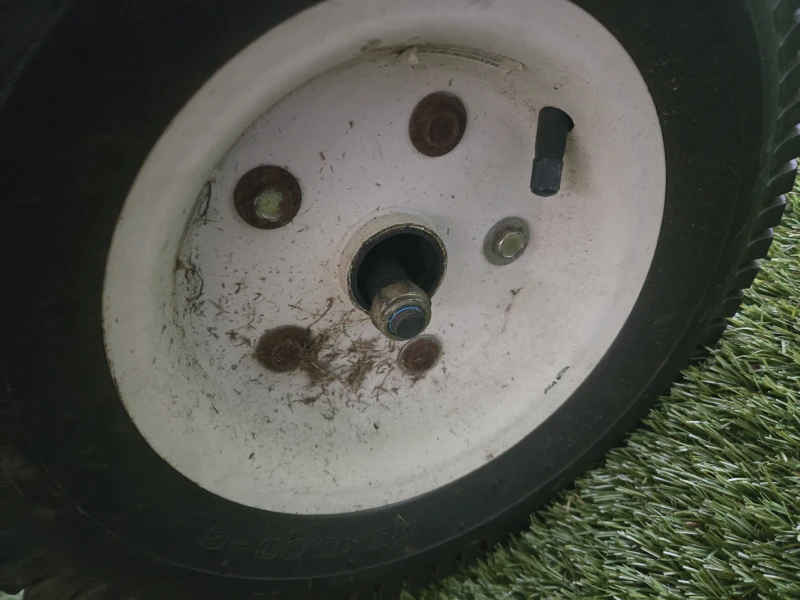

I need a part number to the wheels on a dump cart model #GW0865D-1
