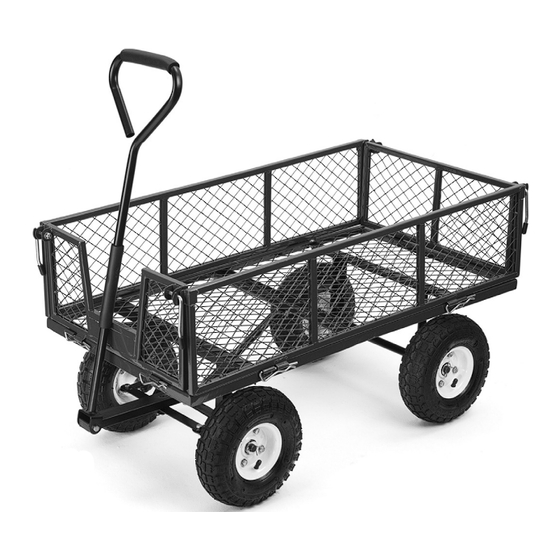

Medium-Duty
Utility Cart
Owners
Manual
Model GW1242
• Important Safety Instructions
• Assembly Instructions
• Parts and Hardware Identification
CAUTION:
Read, understand and follow ALL instructions before using this product.
WARNING:
Not for recreational use. Persons should never ride in the Cart.
Questions, problems, or missing parts? Before returning to your retailer, visit us
online at www.tricam.com and complete the replacement parts submission form or
call our customer service department at 1-800-867-6763,
9 a.m. - 4 p.m., CST, Monday-Friday.
For product inquiries:
Tricam
7677 Equitable Drive
Eden Prairie, MN 55344
800-867-6763
www.tricam.com
10/12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ground Work GW1242
Summary of Contents for Ground Work GW1242
- Page 1 Eden Prairie, MN 55344 800-867-6763 www.tricam.com Medium-Duty Utility Cart Owners Manual Model GW1242 • Important Safety Instructions • Assembly Instructions • Parts and Hardware Identification CAUTION: Read, understand and follow ALL instructions before using this product. WARNING: Not for recreational use. Persons should never ride in the Cart.
- Page 2 Exploded Drawing for Assembly Parts List A. Bed (1) B. Side Panels (2) C. Front Panel (1) D. Back Panel (1) E. 10in (25.4cm) Wheels (4) Front Axle Sub-Assembly (1) G. Yoke (1) H. Front Strut (1) Front Axle Connection Bar (1) J.
- Page 3 Important Safety Instructions R R E E A A D D A A L L L L I I N N S S T T R R U U C C T T I I O O N N S S C C A A R R E E F F U U L L L L Y Y B B E E F F O O R R E E U U S S E E . . If you do not understand these instructions, need clarification or further explanation, please call our toll free answer line for assistance at 1 1 - - 8 8 0 0 0 0 - - 8 8 6 6 7 7 - - 6 6 7 7 6 6 3 3 Monday through Friday 9:00 a.m.
- Page 4 Step 2 Attach the front strut and yoke to the front axle sub-assembly using M8x170 carriage bolt (1), M8 washer (1) and M8 lock nut (1). Tighten securely. Step 3 Attach the connection bar onto the front axle sub-assembly using M6x17 shoulder bolts (2), M6 washers (2), M6 lock nuts (2) M10 washer (1) and cotter pin (1).
- Page 5 Step 5 Attach the rear axle assembly and rear struts onto the bed using M8x20 carriage bolts (2), M8 washers (2) and M8 lock nuts (2). N N O O T T E E : : t t h h e e h h a a r r d d w w a a r r e e t t o o a a t t t t a a c c h h t t h h e e r r e e a a r r s s t t r r u u t t s s t t o o t t h h e e b b e e d d i i s s p p r r e e - - a a s s s s e e m m b b l l e e d d t t o o e e a a c c h h s s t t r r u u t t .
- Page 6 Step 6 Attach the wheels by first placing the wheel spacers (4) onto the front and rear axles. Step 7 Place the wheels onto each axle (valve stems facing out). Next place the wheel washers and insert a cotter pin into the hole at each end of the axles, then bend back the ends of the cotter pins with pliers to keep them in place.
- Page 7 CAUTION DO NOT EXCEED MAXIMUM OVERALL LOAD CAPACITY 800 lbs (362 kg). PERSON SHOULD NEVER RIDE IN THE UTILITY CART. WEIGHT RATING IS BASED ON AN EVENLY DISTRIBUTED LOAD. Replacement Parts List For replacement parts, please visit us online at www.tricam.com to com- plete the replacement parts submission form or call our customer service department at 1-800-867-6763, 9 a.m.
