CAUTION
DO NOT EXCEED MAXIMUM OVERALL LOAD CAPACITY 600 LBS (272 KG.).
MAXIMUM DUMPING LOAD CAPACITY 300 LBS. (136 KG.).
WEIGHT RATING IS BASED ON AN EVENLY DISTRIBUTED LOAD.
Replacement Parts List
For replacement parts, please visit us online at www.tricam.com to com-
plete the replacement parts submission form or call our customer service
department at 1-800-867-6763, 9 a.m. - 4 p.m., CST, Monday - Friday.
B. Lock Assembly
C. Front Frame
D. Rear Axle Assembly
E. Front Axle Assembly (1)
F.
10 in Wheel
G. Handle
H. Hardware Kit
C.
D.
E.
F.
G.
H.

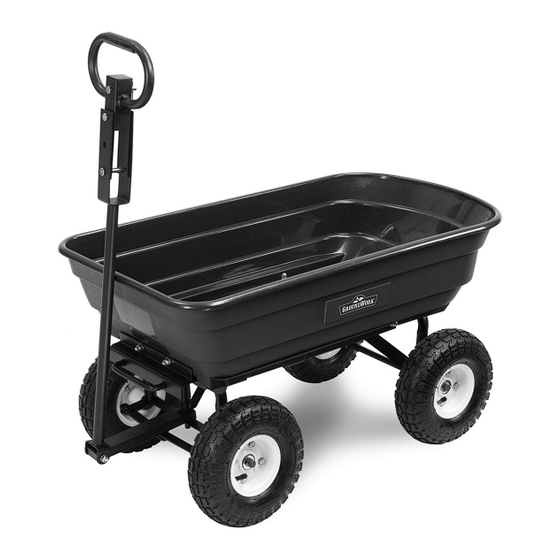

Medium-Duty
Dump Cart
B.
Owners
Manual
Model GW2170D-1
• Important Safety Instructions
• Assembly Instructions
• Parts and Hardware Identification
CAUTION:
Read, understand and follow ALL instructions before using this product.
WARNING:
Questions, problems, or missing parts? Before returning to your retailer, visit us
online at www.tricam.com and complete the replacement parts submission form or
call our customer service department at 1-800-867-6763,
9 a.m. - 4 p.m., CST, Monday-Friday.
Not for recreational use. Persons should never ride in the Dump Cart.
For product inquiries:
Tricam
7677 Equitable Drive
Eden Prairie, MN 55344
800-867-6763
www.tricam.com
U.S. Patents: 6,851,756, 7,210,697, 7,390,065,
7,441,792, 7,818,865, 7,887,141
Canada Patent: 2,503,869
Other U.S. and Foreign Patents Pending
9/11
Advertisement
Related Manuals for Ground Work GW2170D-1
Summary of Contents for Ground Work GW2170D-1
- Page 1 10 in Wheel G. Handle H. Hardware Kit Owners Manual U.S. Patents: 6,851,756, 7,210,697, 7,390,065, 7,441,792, 7,818,865, 7,887,141 Model GW2170D-1 Canada Patent: 2,503,869 Other U.S. and Foreign Patents Pending • Important Safety Instructions • Assembly Instructions • Parts and Hardware Identification CAUTION: Read, understand and follow ALL instructions before using this product.
- Page 2 Using the Dumping Feature Exploded Drawing for Assembly To operate the dumping feature, pull the dumping release handle outward to release Parts List the plastic bed from the locking mechanism. Lift up the release handle to rotate cart upward into the dumping position. Tray (1) Lock Assembly (1) Front Frame (1)
- Page 3 Important Safety Instructions Step 6 Attach the wheels by first placing the wheel spacers (4) onto each axle, then placing the wheel (4) onto 1. READ ALL INSTRUCTIONS CAREFULLY BEFORE USE. If you do not understand these each axle and finally placing the wheel washers (4). instructions, need clarification or further explanation, please call our toll free answer line for assistance at , 1-800-867-6763 Monday through Friday 9:00 a.m.
- Page 4 Step 2 Step 4 Attach the rear axle assembly to Attach the front axle assembly to the the tray using M8x40 truss head front frame using M8x40 Phillips flat head bolts (2), M8 lock nuts (2), and bolts (2), M8 lock nuts (2), and M8 M8 washers (2).
