QUICK START MANUAL
ASP-MG24

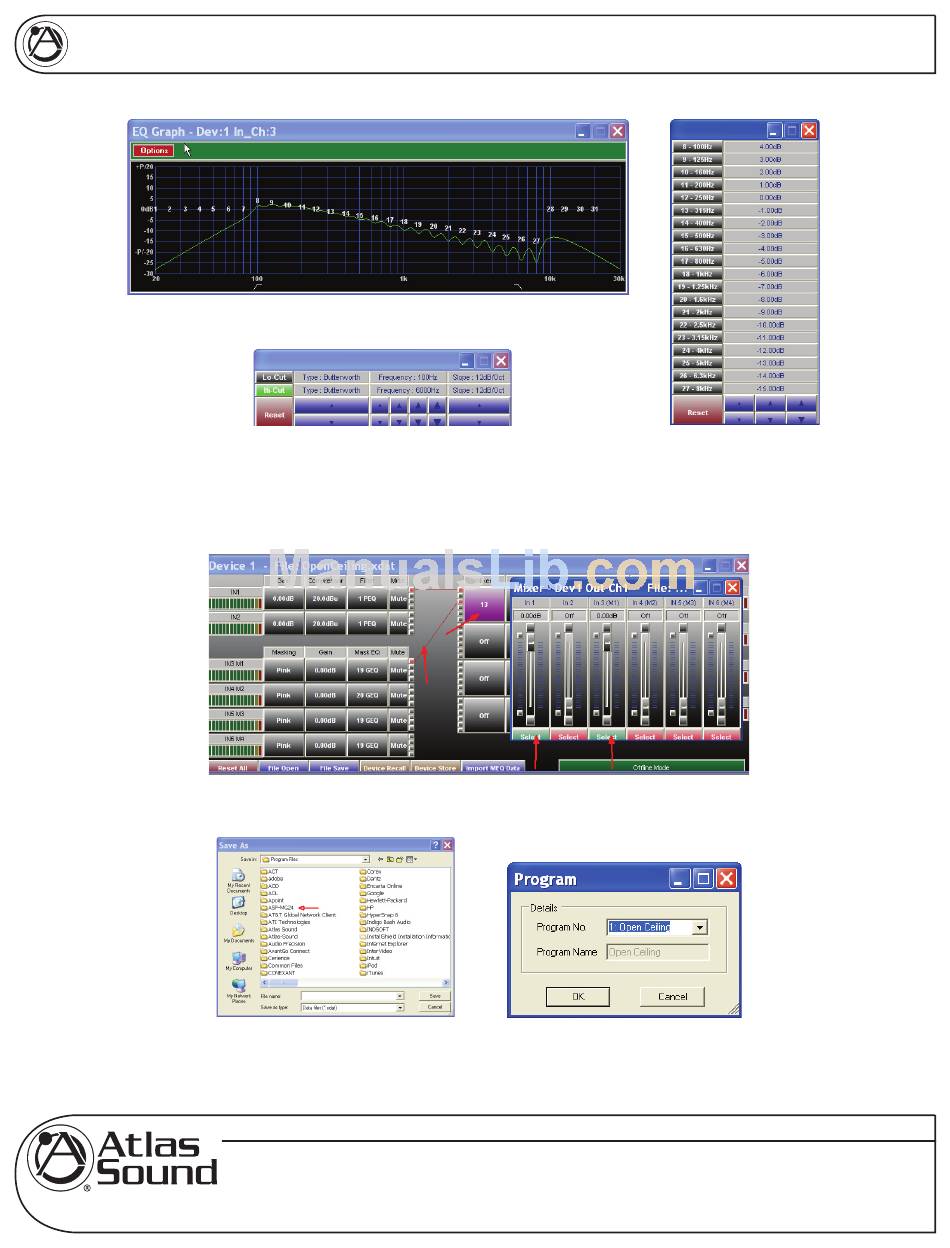

Filter Viewing Window
1/3 Octave Window
Hi & Low Cut Window
16. Output Section – This section consists of a mixer & signal router, filter section, delay, gain and a limiter
section. Note: The mixer section has routing lines to indicate which inputs are assigned to that output. All
incoming levels can be adjusted independently to all the required mix level at the output.
17. File Recall and Store – Works like other Windows file structure programs.
Program Files
Device Program Store & Recall
18. For more detailed information refer to ASPMG24 owners manual.
Specifications are subject to change without notice
www.AtlasSound.com
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. •
TELEPHONE: (800) 876-3333 • FAX: (800) 765-3435
© 2007 ATLAS SOUND LP
Printed in U.S.A.
ATS002744 RevA 3/07
