QUICK START MANUAL
ASP-MG24

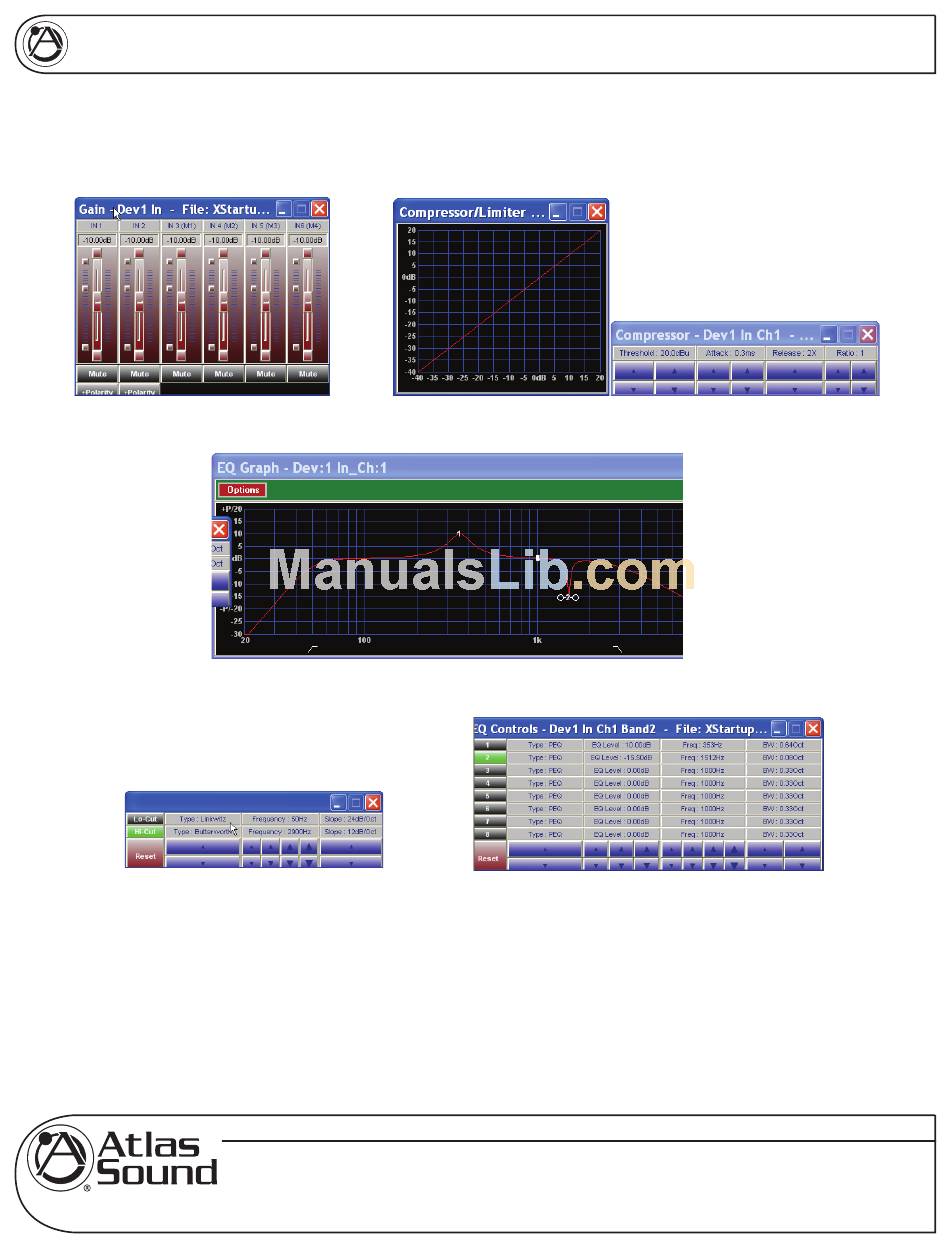

14. Common Input Sub Windows – Some of these windows are similar type to Masking and output sections.
Note: All windows can be moved to meet your viewing preference.
Input Gain Window
Input Compressor/Limiter Windows
Filter Viewing Window
Hi & Low Cut Filter Window
Parametric Filter Window
15. Masking Section – There are four independent generators that are on random clock associators. Each
generator input can be can have gain, Hi & Low cut filters, parametric and 1/3rd octave EQ points assigned.
There is a power ramp up time delay that also can be set for bypassed. An optional advanced scheduler is also
available.
Specifications are subject to change without notice
www.AtlasSound.com
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. •
TELEPHONE: (800) 876-3333 • FAX: (800) 765-3435
© 2007 ATLAS SOUND LP
Printed in U.S.A.
ATS002744 RevA 3/07
