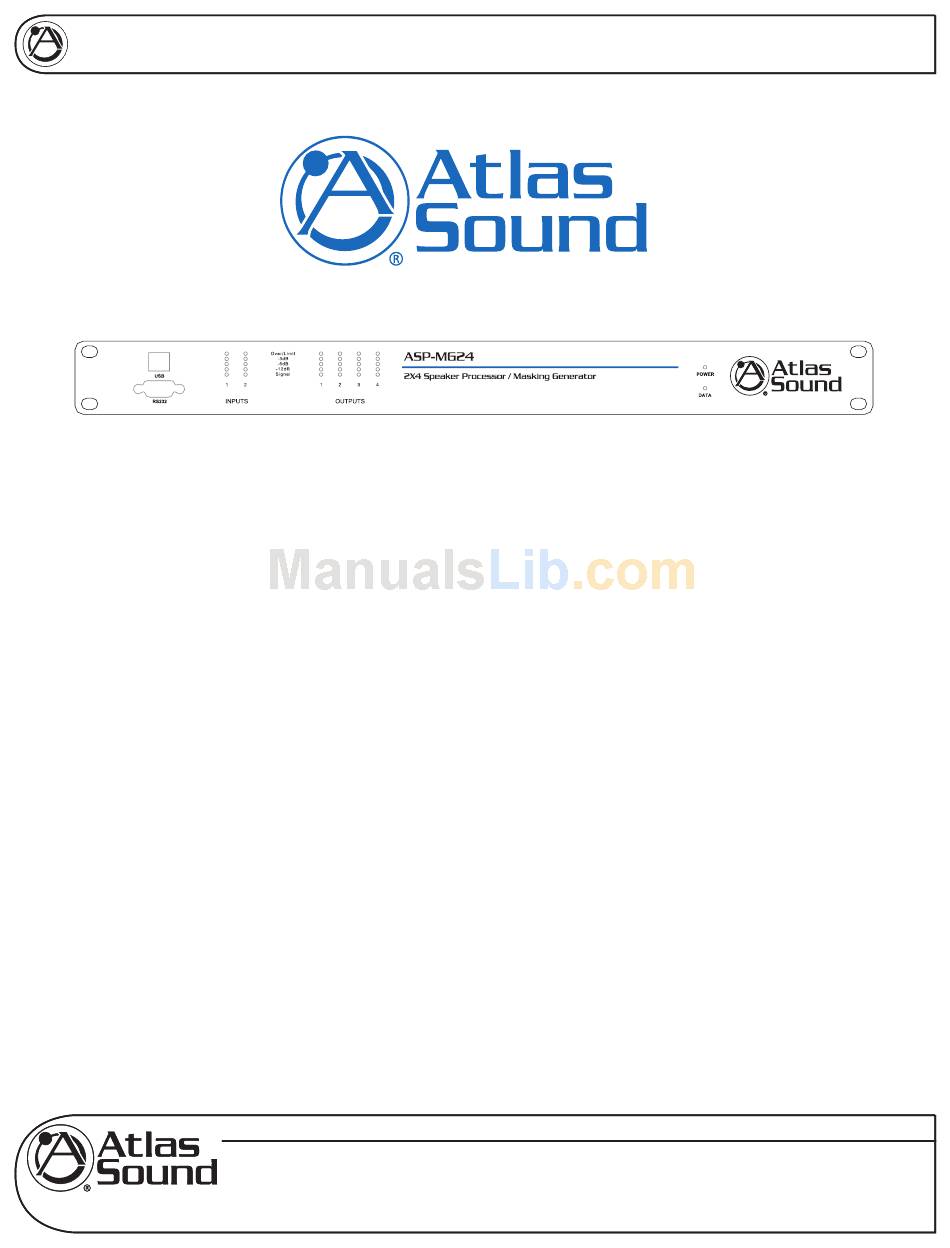

QUICK START MANUAL
ASP-MG24
ASP-MG24
2 input By 4 Output
Signal Processor / Masking Generator
SOFTWARE LOADING FOR USB & QUICK START GUIDE
INTRODUCTION

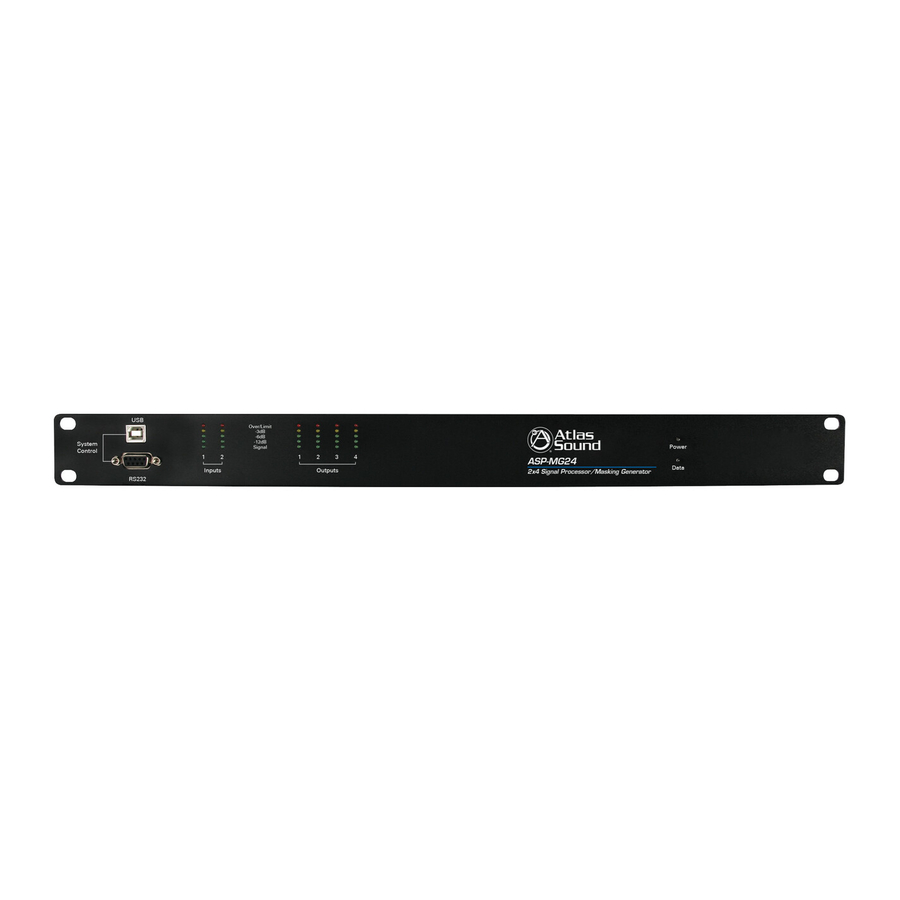

The Atlas Sound ASP-MG24 is a 2 input by 4 output digital loudspeaker management system and masking
generator designed for fixed sound installation markets. The ASP-MG24 features the latest in available
technology utilizing a 32-bit (40-bit extended) floating point processors and high performance 24-bit Analog
Converters. Both balanced inputs are mic/line selectable along with 4 additional independent masking
generator input sources. Inputs and outputs can be routed or mixed in multiple configurations to meet even the
most complex system designs. Control parameters include I/O levels, delay, polarity, parametric EQ, crossover
selections, 31 band EQ, White/Pink Noise, Auto Ramp, routing, mixing and compressor/limiters. The
ASP-MG24 can be controlled or configured in real time with the intuitive PC GUI, accessed via the RS-232
or USB interface. Software upgrade for CPU and DSP via PC always keeps the ASP-MG24 current. Optional
masking scheduler and programmable remote control is also available.
Specifications are subject to change without notice
