Indoor Aerial

Art.no. 38-2917 / 18-8031 Model: EU-2662UA
Please read the entire instruction manual before using the product
and save it for future reference. We apologise for any text or photo-
graphic errors and any changes of technical data.
If you have any questions concerning technical problems please
contact our Customer Service Department.

Product Description

-
Built-in amplifier for channels 5-12 and channels 21-69.
-
1 m aerial lead for TV connection included.
-
Operates on a 12 V adaptor (included).

Contents

-
Indoor aerial
-
1 m aerial lead
-
Adaptor 12 V DC, 100 mA

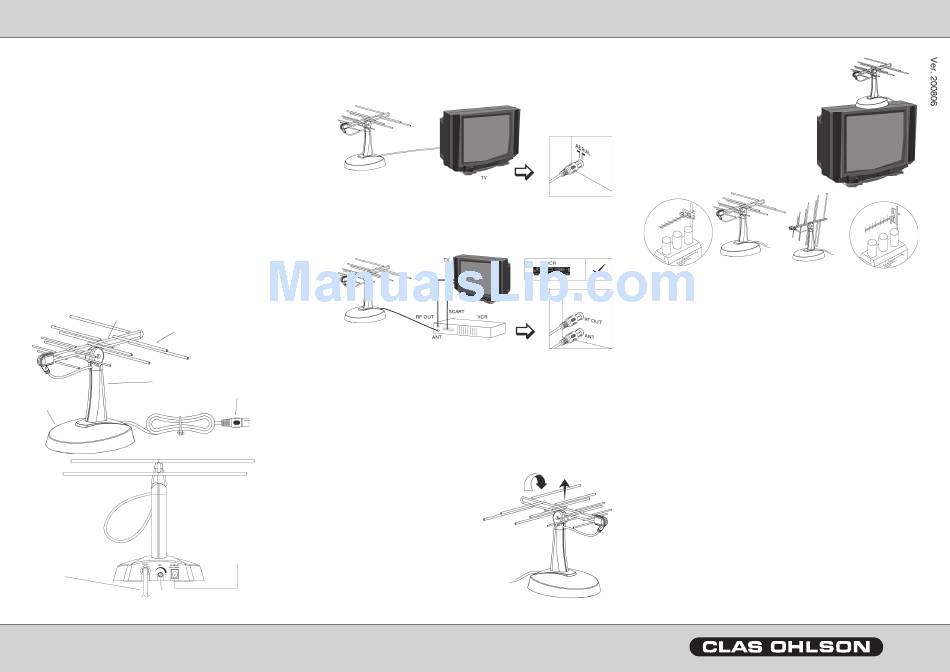

Aerial parts

Boom
Element
Stem
Base
AC/DC adaptor
connection 12 V
DC 100 mA
(included)
Lead to TV
Amplifier gain control
GREAT BRITAIN For consumer contact, please visit www.clasohlson.co.uk and click on customer service.
Installation

Connecting directly to the TV

-
Connect the aerial lead directly to the TV's aerial input.

Connecting directly to the digital receiver, VCR etc.

1. Connect the aerial lead directly to the aerial input on the digital
1 m lead with
receiver, VCR etc. ( the aerial input is often marked ANT,
aerial plug
AERIAL IN etc.)
2. Connect the digital receiver, VCR etc. to the TV via the SCART
or aerial lead (not included).

Operating Instructions

For best reception you should aim
your aerial towards the nearest
TV transmitter and decide on
the aerial's polarisation. Most TV
transmitters send with horizontal
polarisation, but some areas may
still send with vertical polarisation.
1. To polarise the aerial pull it
straight up from the stems and
turn it on its side according to
the picture.
ENGLISH
2. Turn on the connected devices
and position the aerial towards
the nearest TV transmitter for
best reception.
Tip!
If you are unsure which direction and
polarisation the aerial should have
you can compare it to other aerials in
your neighbourhood.
Horizontal polarisation
Vertical polarisation
3. The aerial has a built-in gain control which can be adjusted for
the best reception during difficult reception periods.
-
Turn the knob clockwise (+) to increase amplification.
-
Turn the knob anticlockwise (-) to decrease amplification.
N.B.
Do not adjust the amplifier more than necessary since high
amplification can also increase possible interference. A very bad
picture is usually not corrected by amplification. An external aerial
may be a necessity.

Disposal

When it is time to dispose of the product, dispose of it
according to your local ordinances. If you are unsure
please contact your municipality.

Specifications

Frequency range
UHF (channels 5-12 and channels 21-69)
Operating voltage
12 V DC, 100 mA via the adaptor
230 V AC, 50 Hz (included)
