Clas Ohlson E560E156N Quick Start Manual

VHF/UHF TV Aerial
Art.no 38-8749 Model E560E156N
Please read the entire instruction manual before using the product
and then save it for future reference. We reserve the right for
any errors in text or images and any necessary changes made
to technical data. In the event of technical problems or other
queries, please contact our Customer Services.

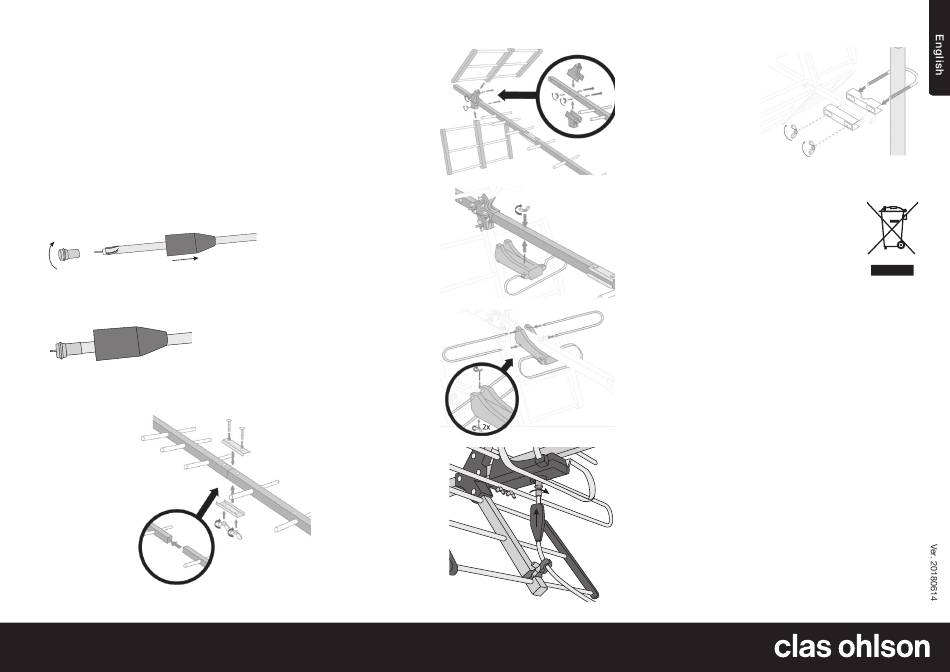

Installation
Fitting the F-connector and the seal onto
the coaxial cable
1. Thread the rubber seal onto the coaxial cable (sold separately).
2. Strip the coaxial cable and fold the braided shielding back
over the sheathing as pictured.
3. Twist the F-connector onto the coaxial cable.
Installing the aerial
1. Join the two
halves of
the boom
together.
GREAT BRITAIN • customer service tel: 020 8247 9300 e-mail customerservice@clasohlson.co.uk internet www.clasohlson.co.uk postal 10 – 13 Market Place, Kingston Upon Thames, Surrey, KT1 1JZ
2. Fasten the angled
bracket onto
the boom.
3. Insert
the reflectors
into the angled
bracket and
fasten them
in place.
4. Bolt the UHF
dipole onto
the boom.
5. Insert and join
together the ends
of the VHF dipole.
6. Connect the aerial
cable to the aerial
and cover
the connection with
the rubber seal.
Make sure that
the F-connector is
screwed on tightly
and that the seal is
watertight.
7. Grip the aerial cable
in the clamp on
the reflector.
8. Clamp the aerial
to the mast (sold
separately) using
the u-bolt and
the two wing nuts.
Responsible disposal
This symbol indicates that this product should not
be disposed of with general household waste.
This applies throughout the entire EU. In order
to prevent any harm to the environment or
health hazards caused by incorrect waste
disposal, the product must be handed in for
recycling so that the material can be disposed
of in a responsible manner. When recycling your
product, take it to your local collection facility
or contact the place of purchase. They will
ensure that the product is disposed of in
an environmentally sound manner.
Specifications
Frequency VHF: 174–230 MHz
UHF: 470–790 MHz
Polarisation Horizontal
Impedance 75 Ω
Connection F-Connector
