  • Page 1: Air Conditioner

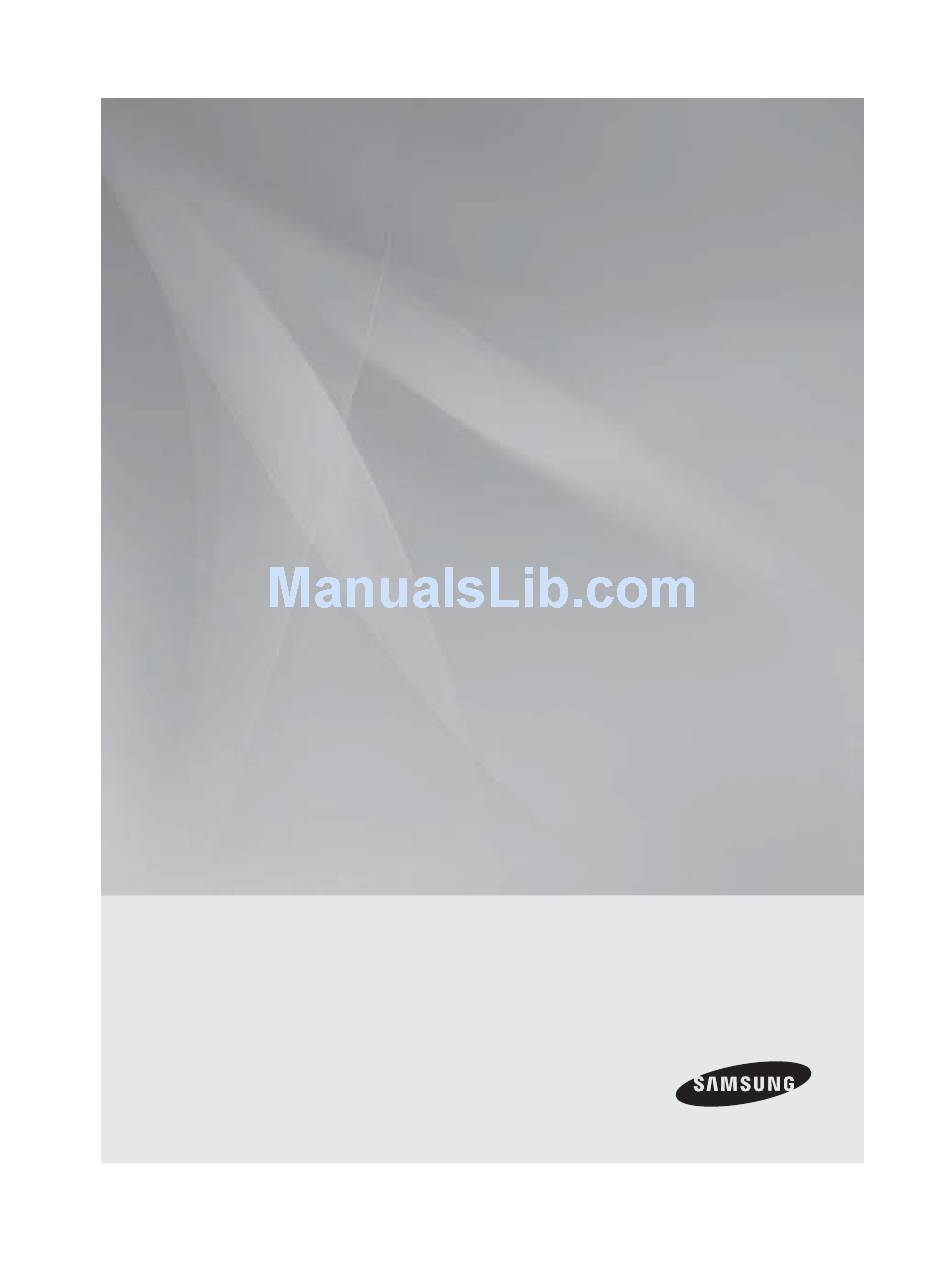

    AS09E * Series AS12E * Series AS18E * Series AS24E * Series Air Conditioner user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register DB98- 30368 A...
  • Page 2 features of your new air conditioner Cool Summer Offer On those hot sweltering summer days and long restless nights, there is no better escape from the heat than the cool comforts of home. Your new air conditioner brings an end to exhausting hot summer days and lets you rest.

  • Page 3: Safety Information

    If you have questions, call your nearest contact center or find help and information online at www.samsung.com. What the icons and signs in this user manual mean: Risk of death or serious personal injury.
  • Page 4 safety information sa ety at o SEVERE WARNING SIGNS Do not place the air conditioner near hazardous substances or equipment that releases free flames to avoid fire, explosions or injuries. Potential risk of fire hazard or explosion. Do not install the outdoor unit at an unstable place or elevated surface where there is potential risk of falling.
  • Page 5 Do not clean the interior of air conditioner on your own. Consult the place of purchase or contact center before cleaning the interior of air conditioner. The wrong way of cleaning may damage or defective electric parts and cause electric shock or fire. Do not run the air conditioner for an extended period of time in a r oom with the door closed or with babies, elderly or disabled people.
  • Page 6 safety information sa ety at o SEVERE WARNING SIGNS Be sure to ground the unit. Do not connect the ground wire to gas or water pipes, lighting rods, or telephone grounding lines. If the unit is not properly grounded, electric shock may result. Use a receptacle that has a ground terminal.
  • Page 7 Do not touch the pipe connected to the air conditioner. Install the indoor unit away from lighting apparatus using the ballast. If you use the wireless remote control, reception error may occur due to the ballast of the lighting apparatus. Install the outdoor unit where operating noise and vibration will not disturb your neighbor and in a well-ventilated area with no obstacle.
  • Page 8 safety information CAUTION SIGNS Do not open doors and windows in the room being cooled during operation unless necessary. Do not block the air conditioner vents. If objects block the air flow, it may cause unit malfunction or poor performance. Make sure that the condensed water dripping from the drain hose runs out properly and safely.
  • Page 9 contents VIEWING YOUR AIR CONDITIONER s t r l o r i t r s e i OPERATING BASIC FUNCTION e r i c i t r i a o l f l a t r i a o l f 19 Using the Turbo function USING ADVANCED FUNCTIONS 20 Setting timer...

  • Page 10: Viewing Your Air Conditioner

    viewing your air conditioner Congratulations on the purchase of the air conditioner. We hope you enjoy the features of your air conditioner and stay cool or warm with optimal efficiency. Please read the user manual to get started and to make the best use of the air conditioner. CHECKING THE INDOOR UNIT AND DISPLAY Carefully unpack your air conditioner, and check the unit to make sure it is not damaged.

  • Page 11: Power Button And Room Temperature Sensor

    OPENING THE FRONT PANEL Tightly grab front side of the front panel and lift up the panel to open. Then slightly push the panel up until the panel is hanged over the hooks of the unit. Power button and Room temperature sensor You may locate the Power button on the right bottom side of the air conditioner.

  • Page 12: Checking The Remote Control

    viewing your air conditioner CHECKING THE REMOTE CONTROL You can activate the air conditioner by pointing the remote control away from it. When using the remote control, always point it directly at the air conditioner. Remote Control display Turbo Operate in maximum fan speed to Power cool/warm quickly.

  • Page 13: Remote Control Display

    Remote control display Using the remote control Point the remote control towards the remote control sensor of the unit. When properly pressing the button on the remote control, you will hear beep sound from the unit. The signal may not be received well of electronic lighting style fluorescent lamps, such as inverter fluorescent lamps are in the same space.
  • Page 14 operating basic function TURNING THE AIR CONDITIONER ON AND OFF Press the Power button on the remote control. You will hear a beep and the air flow blade will move up and down automatically when the air conditioner is properly on. The air conditioner will operate in the most recent operation mode used or Auto mode.
  • Page 15 Cool In Cool mode, the air conditioner will cool your room. You can adjust the temperature and the fan speed to feel cooler in hot season. 1. Turn on the air conditioner. Press the Power button on the remote control. 2.
  • Page 16 operating basic function SELECTING OPERATION MODE emoving moisture from the indoor air. Dry mode makes the air feel refreshing in a humid climate. 1. Turn on the air conditioner. Press the Power button on the remote control. 2. Set the operating mode. Press the Mode button on the remote control until Dry mode indicator appears on the remote control display.
  • Page 17 Fan mode can be selected to ventilate your room. Fan mode will be helpful to refresh the stale air in your room. 1. Turn on the air conditioner. Press the Power button on the remote control. 2. Set the operating mode. Press the Mode button on the remote control until Fan mode indicator appears on the remote control display.

  • Page 18: Adjusting The Air Flow Direction

    ADJUSTING THE AIR FLOW DIRECTION Air flow can be directed to your desired position. Vertical air flow Air flow blades move up and down. 1. Press the Air swing button on the remote control. Air swing indicator will be on and air flow blades move up and dow n continuously to circulate the air.
  • Page 19 using advanced functions USING THE TURBO FUNCTION Turbo function will be helpful to cool or heat your room quickly and effectively by operating at the maximum fan speed for 30 minutes. 1. Turn on the air conditioner. Press the Power button on the remote control.

  • Page 20: Setting Timer

    SETTING TIMER This advanced Timer function allows you to turn on/off your air conditioner automatically even when you are away. Simply set the time and your air conditioner will turn on/off automatically. On timer This function allows you to turn on the air conditioner automatically within the time range of 24 hours.

  • Page 21: Setting Timer

    using advanced functions SETTING TIMER Off timer This function allows you to turn off the air conditioner automatically within the time range of 24 hours. Off timer is available while your air conditioner is on/off. 1. Press the Off Timer button on the remote control. Off timer indicator blinks on the remote control display.

  • Page 22: Combining On Timer And Off Timer

    Combining On timer and Off timer You can combine the On timer and Off timer together for more convenient use of the timer function. 1. Set the On timer. Press the On Timer button. Set the time with On Timer button. Press Set/Cancel button to activate the On timer.
  • Page 23 using advanced functions SETTING TIMER mode mode allows you to set a comfortable sleep temperature while saving energy and having sound sleep. mode can be set up when the air conditioner is on. 1. Set the operating mode. Press the Mode button on the remote control until Cool/Heat appears on the remote control display.
  • Page 24 Temperature changes in mode mode automatically modifies To prevent excessive cooling during sleep, the the temperature setting in accordance with the time setting. Temperature and air current change according to the three stages; Fall asleep, Sound sleep, and Wake up from mode, and then the air conditioner will automatically turn off when the set time has elapsed.
  • Page 25 using advanced functions USING THE SMART SAVER FUNCTION This function will set the temperature range limit to help you save energy while the air conditioner is operating in Cool mode. 1. Press the Smart Saver button on the remote control while the air conditioner is operating in Cool mode.

  • Page 26: Cleaning And Maintaining The Air Conditioner

    cleaning and maintaining the air conditioner CLEANING THE EXTERIOR 1. Wipe the surface of the unit with a slightly wet or dry cloth when needed. Do not use Benzene, Thinner or Clorox They may damage the surface of the air conditioner CAUTION and can create a risk of fire.
  • Page 27 cleaning and maintaining the air conditioner Bio filter (Option) Washable foam based Bio filter leads to reduction in allergens that thrive in polluted air. The filter is cleaned with a vacuum or by hand washing. 1. Open the front panel. Tightly grab front side of the front panel and lift up the panel to open.
  • Page 28 REPLACING THE FILTER Replacement filter may be purchased from the retail store or ordered from the dealer where you purchased the unit. If you cannot find one, please call a contact center. Deodorizing filter (Option) Deodorizing filter absorbs efficiently cigarette smoke, pet odors and other unpleasant smells. Deodorizing filter cleaning is simple, just remove old filter and install a new one.

  • Page 29: Maintaining Your Air Conditioner

    cleaning and maintaining the air conditioner MAINTAINING YOUR AIR CONDITIONER If the air conditioner will not be used for an extended period of time, dry the air conditioner to maintain it in best condition. 1. Dry the air conditioner thoroughly by operating in Fan mode for 3 to 4 hours and disconnect the power plug.

  • Page 30: Internal Protections Via The Unit Control System

    Internal protections via the unit control system This internal protection operates if an internal fault occurs in the air conditioner. Type Description Anti-protection of The compressor will be off to protect internal battery when the air conditioner operates in Cool mode. The air conditioner does not start operating immediately to protect the Protect compressor compressor of the outdoor unit after it has been started.

  • Page 31: Troubleshooting

    appendix TROUBLESHOOTING Refer to the following chart if the air conditioner operates abnormally. This may save time and unnecessary expenses. PROBLEM SOLUTION The air conditioner does Because of the protective mechanism, the appliance does not start not operate immediately operating immediately to keep the unit from overloading. after it has been The air conditioner will start in 3 minutes.

  • Page 32: Operation Ranges

    OPERATION RANGES The table below indicates the temperature and humidity ranges the air conditioner can be operated within. Refer to the table for efficient use. OPERATIONAL TEMPERATURE MODE INDOOR HUMIDITY IF OUT OF CONDITIONS INDOOR OUTDOOR Condensation may occur on the indoor unit with risk to have COOLING 18˚C to 32˚C...
  • Page 33 memo_33...
  • Page 34 memo_34...
  • Page 35 memo_35...
  • Page 36 Contact SAMSUNG WORLD WIDE If you have any comments or questions regarding a Samsung products, contact the SAMSUNG customer care center. Country Web Site Customer Care Center INDIA 3030 8282, 1600 1100 11 www.samsung.com/in INDONESIA 0800-112-8888 www.samsung.com/id PHILIPPINES 1800-10-SAMSUNG(7267864) www.samsung.com/ph...
