Base Assembly Parts - Frontier wc1105 Operator's Manual

2
1
45
39
37
38
34
35
36
Ref# Description
1 Belt Shield
2 Owner's Manual Canister
2a Operator's/Parts Manual
3 Insert Bearing
4 Idler Roller
5 Nut, 3/8
6 Locknut, 3/8
7 Flatwasher, 3/8
8 Bolt, 3/8 x 1-1/4
9 Bolt, 5/8 x 4-1/2
10 Flatwasher, 5/8
11 Eye Bolt, 3/8 x 3-1/4
12 PTO Guard
13 Hitch Pin
14 Lock Washer, 7/8
15 Jam Nut, 7/8
16 Pulley, 12" 3-Groove
17 Pulley Bushing w/ Bolts
18 Lock Washer, 5/16
19 Bolt, 5/16 x 2
20 Flange Bearing, 1-1/4
21 Jack Shaft
22 Key, 3/8 x 3/8 x 2
23 Key, 1/4 x 1/4 x 2

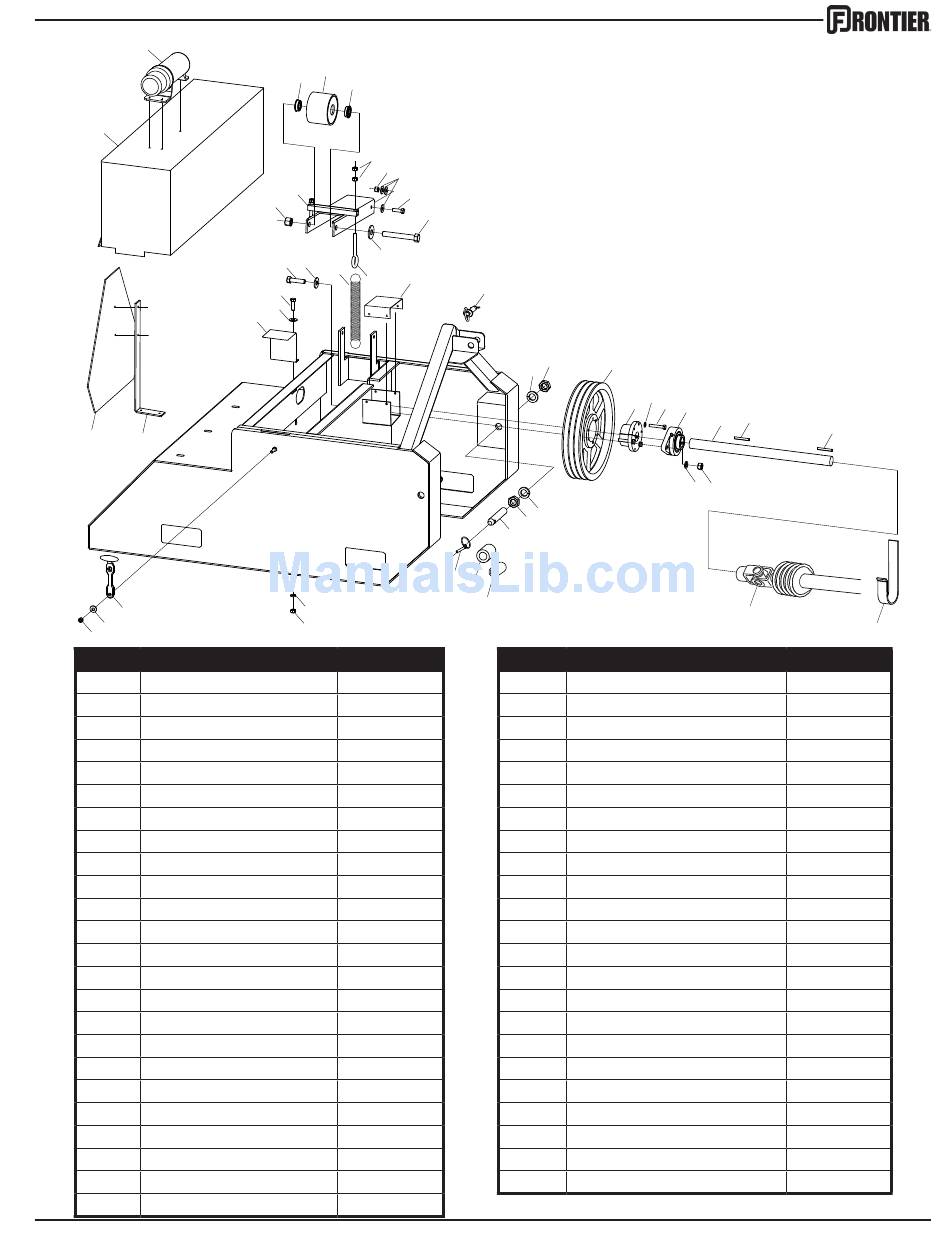

WC1105 Base Assembly
4
3
3
5
6
7
46
8
9
10
42 43
44
12
11
41
40
32
33
Part#
5PQ902025
5PQ503050
5PQ990102
5PQ900150
5PQ902023
5PQ000915
5PQ003000
5PQ001035
5PQ000275
5PQ000645
5PQ001075
5PQ902001
5PQ900857
5PQ903143
N/A
N/A
5PQ900113
5PQ900115
N/A
N/A
5PQ900112
5PQ900041
5PQ400857
5PQ400587
13
15
16
14
17 18 19 20
14
15
28
31
30
29
Ref# Description
24 Nut, 1/2
25 Lock Washer, 1/2
26 Complete PTO Shaft
27 PTO Shaft Cradle
28 Lift Arm Pin w/ Nut & Washer
29 Quick Hitch Bushing, 1" OD
30 Quick Hitch Bushing, 1.25" OD
31 Lynch Pin
32 Lock Washer, 3/8
33 Nut, 3/8
34 Rubber T-Handle
35 Flatwasher, 5/16
36 Nut, 5/16
37 SMV Triangle
38 SMV Mounting Bracket
39 Jack Shaft Shield
40 Flatwasher, 3/8
41 Bolt, 3/8 x 1
42 Bolt, 1/2 x 2
43 Flatwasher, 1/2
44 Tension Spring
45 Locknut, 5/8
46 Idler Arm
15
21 22
23
25
24
26
Part#
5PQ000940
5PQ000840
5PQ900139
5PQ900862
5PQ900110
5PQ903145
5PQ903146
5PQ500219
5PQ000820
5PQ000915
5PQ400092
5PQ001030
5PQ000910
5PQ507166
5PQ900861
5PQ900019
5PQ001035
5PQ000270
5PQ000452
5PQ001055
5PQ900162
5PQ000972
5PQ902024
27
