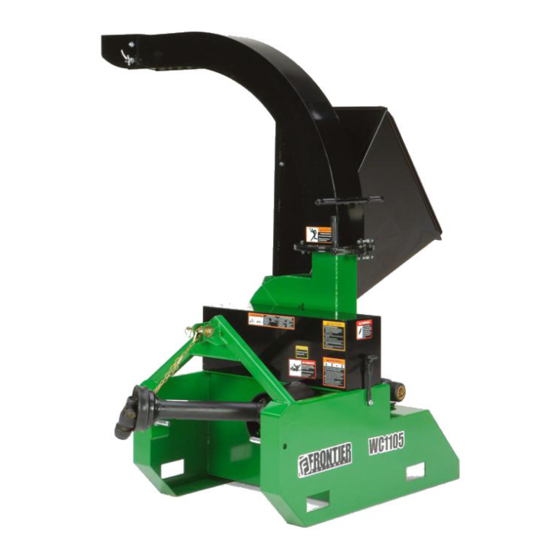

- Page 1 O P E R A T O R ' S M A N U A L WOOD CHIPPER WC1105 5PQ990102 (8/08/2012)
- Page 3 To the Owner; Thank-You for choosing a quality product from Frontier Equipment. We strive to give you the best equipment and the best level of service of any company. With a little care and maintenance this machine will do your work for you for many years.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction ……………………………………………………………… 3 Intended Use ………………………………………………… 3 Serial Number …………………………………………….… 3 Specifications ………………………………………………… 3 Safety …………………………………………………………………….… 4 Driveline Safety……………………………………………… 5 Safety Decals ………………………………………………… 6 Inspection and Set-up ………………………………………………… 7 Operation …………………………………………………………………… 8 Startup ………………………………………………………… 8 Chipping Tips ………………………………………………… 8 Chip Chute Adjustments ……………………………………... -
Page 5: Introduction
Frontier Chippers are designed to chip natural, untreated wood only. Materials that are processed may contain chemicals or by-products that could corrode the machine, damage the blades, or spon- taneously combust. Frontier Equipment will not cover under warranty any chipper that has been used for anything besides natural wood. - Page 6 SAFETY Do not operate this machine until this manual has been read and fully understood; serious injury or death can occur if these safety warnings are ignored! Never allow more than one person to operate this machine at one time. If two people are working together it will increase the chance of your workmate engaging the machine or caus- ing you to fall into the machine.
-
Page 7: Driveline Safety
Stay Clear of Rotating Drivelines TS1644-UN-22AUG95 H96219-UN-29APR10 Entanglement in rotating driveline can cause serious injury or death. Keep tractor master shield and driveline shields in place at all times. Make sure rotating shields turn freely. Wear close fitting clothing. Stop the engine and be sure that PTO driveline is stopped before making adjustments, connections, or cleaning out PTO driven equipment. -
Page 8: Safety Decals
SAFETY Safety Decals Warning decals are provided to insure safe and proper use of the machine and should be heeded at all times. If at any time there are damaged and/or faded decals, contact your dealer for replacements immediately. Below is an illustration of each decal and its placement. 903100 903101... - Page 9 INSPECTION AND SET-UP • Follow the instructions in the lubrication section of this manual to make sure the chipper is greased properly. The initial grease is applied at the factory, but a routine maintenance schedule is the user’s responsibility. • Check all bolts and nuts to make sure everything is tight.
-
Page 10: Operation
OPERATION Startup • Place tractor transmission in neutral and set the parking brake, then turn the tractor engine off. • Connect the 3 pt. hitch linkages to the chipper and secure them with safety snap pins. • Adjust the top link so that the chipper sits level. •... -
Page 11: Chip Chute Adjustments
OPERATION Chip chute adjustments To position the chip chute, pull the locking handle (Figure 2) toward you to unlock. The chute conveniently rotates a full 360 degrees. Rotate it to the desired position and lock the handle. Be sure the handle is locked before transporting the chipper! Deflector The chip deflector easily adjusts to regulate the distance that the chips are thrown. -
Page 12: Belt Tension
However, there is a slight adjustment by tightening or loosening the eye bolts, increasing or decreasing the spring tension. Replacing the belts Follow these steps to replace the drive belts. The WC1105 chipper uses (3) BX-58 belts. • Remove the idler springs to release the tension on the belts. -
Page 13: Knives
MAINTENANCE & SERVICE Knives The performance of the chipper will depend largely on the condition of the knives. If the knives are dull or damaged you will create a lot of unnecessary stress on the whole machine. The knives are reversible and can easily be reversed or replaced by removing the two 3/8 bolts. -
Page 14: Bearings
LUBRICATION Bearings The WC1105 chipper has four bearings. Figures 9 & 10 show the bearings on the input shaft where the PTO shaft attaches. These bearings should be greased lightly every 8 hours of use. Be sure to wipe all the dirt off of the fitting before greasing. - Page 15 WARRANTY Warranty coverage is provided by John Deere according to the terms of the Agricultural/Commercial & Consumer Equipment Warranty Statement. Carefully read the warranty statement on the back of your original purchase order for details on coverage and limitations of this warranty.
-
Page 16: Illustrated Parts Breakdown
Illustrated Parts Breakdowns... -
Page 17: Base Assembly Parts
WC1105 Base Assembly 42 43 17 18 19 20 21 22 Ref# Description Part# Ref# Description Part# Belt Shield 5PQ902025 Nut, 1/2 5PQ000940 Owner’s Manual Canister 5PQ503050 Lock Washer, 1/2 5PQ000840 Operator’s/Parts Manual 5PQ990102 Complete PTO Shaft 5PQ900139 Insert Bearing... -
Page 18: Main Assembly Parts
WC1105 Main Assembly 2 3 4 14 15 30 31 36 37... - Page 19 WC1105 Main Assembly Ref# Description Part# Ref# Description Part# Nut, 3/8 5PQ000915 Bolt, 1/4 x 1-7/8 Lock Washer, 3/8 5PQ000820 Bolt, 5/16 x 2 Flatwasher, 3/8 5PQ001035 Key, 3/8 x 3/8 x 2 5PQ400857 Clamp Knob 5PQ900125 Lock Washer, 5/16...
-
Page 20: Decals & Labels
WC1105 Decals and Labels 903101 903100 Ref# Description Item# Decal, Frontier Equipment 5PQ903110 Decal, WC1105 5PQ903111 Warning, do not ride 5PQ903104 Warning, cruch/pinch hazard 5PQ903105 Warning, thrown objects 5PQ903106 Warning, do not place hands 5PQ903100 Decal, Red Retroreflective 5PQ903112 Danger, do not remove sheilds... -
Page 21: Notes
NOTES...
