TP-Link TX-6610 User Manual

TP-Link TX-6610 User Manual

1-port gigabit gpon terminal
Hide thumbs Also See for TX-6610:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
TX-6610
1-Port Gigabit GPON Terminal
REV: 3.0.0
1910011424

Advertisement

Table of Contents
loading

Related Manuals for TP-Link TX-6610

Summary of Contents for TP-Link TX-6610

  • Page 1 TX-6610 1-Port Gigabit GPON Terminal REV: 3.0.0 1910011424...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Safety Information

    ●插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。 ●請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。 ●請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。 Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України. Safety Information When product has power button, the power button is one of the way to shut off the product; ...

  • Page 5: Declaration Of Conformity

    TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMITY For the following equipment: Product Description: 1-Port Gigabit GPON Terminal Model No.: TX-6610 Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives: Directives 2004 / 108 / EC, Directives 2006 / 95 / EC, Directives 2011/65/EU The above product is in conformity with the following standards or other normative documents：...

  • Page 6: Table Of Contents

    CONTENTS Chapter 1. Product Overview ................... 1 1.1 Product Overview ......................1 1.2 Main Features ....................... 1 1.3 Panel Layout ......................... 2 1.3.1 The Front Panel ........................2 1.3.2 The Back Panel ........................3 Chapter 2. Connecting the Terminal ............... 4 2.1 System Requirements ....................4 2.2 Installation Environment Requirements .................

  • Page 7: Chapter 1. Product Overview

    Thank you for choosing the TX-6610 1-Port Gigabit GPON Terminal. 1.1 Product Overview TP-LINK’s TX-6610 is a next-generation Gigabit Passive Optical Network (GPON) terminal, ideal for Fiber to the Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its GPON port and share it with a Gigabit Ethernet port.

  • Page 8: Panel Layout

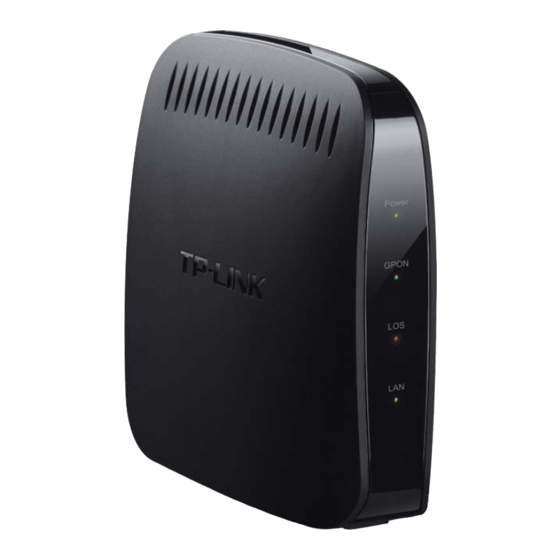

    TX-6610 1-Port Gigabit GPON Terminal User Guide 1.3 Panel Layout 1.3.1 The Front Panel Figure 1-1 The GPON Terminal’s LEDs are located on the front panel. They indicate the device’s working status. For details, please refer to LED Explanation. LED Explanation:...

  • Page 9: The Back Panel

    TX-6610 1-Port Gigabit GPON Terminal User Guide A device is connected to the LAN port. Flashing The LAN port is transmitting or receiving data. No device is connected to the LAN port. 1.3.2 The Back Panel Figure 1-2 ON/OFF: The switch for the power.

  • Page 10: Chapter 2. Connecting The Terminal

    Step 1: Connect the fiber. Plug one end of the fiber into the GPON port on the rear panel of TX-6610, and insert the other end into the wall socket. Step 2: Connect the Ethernet cable. Attach one end of a network cable to your computer’s Ethernet port or a regular hub/switch port, and the other end to the LAN port on the TX-6610.
  • Page 11 TX-6610 1-Port Gigabit GPON Terminal User Guide Figure 2-1...

  • Page 12: Chapter 3. Quick Installation Guide

    Chapter 3. Quick Installation Guide 3.1 TCP/IP Configuration After you directly connect your PC to the Terminal TX-6610 or connect your adapter to a Hub/Switch which has connected to the Terminal, you need to configure your PC’s IP address. We use the procedures in Windows 7 as an example, for other systems refer to for instructions.
  • Page 13 TX-6610 1-Port Gigabit GPON Terminal User Guide Step 3: In the prompt page that showed below, double click on the Internet Protocol Version 4 (TCP/IPv4). Figure 3-2...
  • Page 14 TX-6610 1-Port Gigabit GPON Terminal User Guide Step 4: Select both Obtain an IP address automatically and Obtain DNS server address automatically. Then click OK. Figure 3-3 Step 5: Back to previous interface, click OK to save the settings. Now, you can run the Ping command in the command prompt to verify the network connection.

  • Page 15: Quick Installation Guide

    192.168.1.2 ~ 192.168.1.254. 3.2 Quick Installation Guide With a Web-based utility, it is easy to configure and manage the TX-6610 1-Port Gigabit GPON Terminal. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
  • Page 16 TX-6610 1-Port Gigabit GPON Terminal User Guide 2) If the above screen does not pop up, it means that your Web-browser has been set to a proxy. Go to Tools menu→Internet Options→Connections→LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.

  • Page 17: Chapter 4. Configuring The Terminal

    TX-6610 1-Port Gigabit GPON Terminal User Guide Chapter 4. Configuring the Terminal This chapter will show each Web page's key function and the configuration way. 4.1 Login After your successful login, you will see the main menus on the left of the Web-based utility. On the right, there are the corresponding explanations and instructions.
  • Page 18 TX-6610 1-Port Gigabit GPON Terminal User Guide Figure 4-1...

  • Page 19: Network Setting

    TX-6610 1-Port Gigabit GPON Terminal User Guide System Status: Here shows the system information of the Terminal.  LAN: The current port status of the Terminal.  PON: Here shows the Terminal’s current GPON module information.  Statistics: Here you can view the statistics of the Terminal.

  • Page 20: Vlan Setting

    TX-6610 1-Port Gigabit GPON Terminal User Guide GPON Password Old Password: Displays the factory default password.  New Password: Enter the password provided by your ISP.  Click Save to make the settings take effect. GPON SN Old SN: Displays the factory default SN.

  • Page 21: Lan Setting

    TX-6610 1-Port Gigabit GPON Terminal User Guide 4.3.3 LAN Setting Choose “Network Setting”“LAN Setting” menu and you will see the LAN screen as shown in Figure 4-4. You can change the LAN IP address on this page. Figure 4-4 LAN IP Address and Mask: ...

  • Page 22: Management

    Choose menu “Management”  “User Management”, and then you can change the factory default username and password of the Terminal in the next screen as shown in Figure 4-5. TX-6610 provides two users: admin/admin and user/user. Both can be used to log in the management page.

  • Page 23: Firmware Upgrade

     Note: New firmware versions are posted at http://www.tp-link.com and can be downloaded for free. There is no need to upgrade the firmware unless the new firmware has a new feature you want to use. However, when experiencing problems caused by the Terminal rather than the configuration, you can try to upgrade the firmware.

  • Page 24: Factory Defaults

    TX-6610 1-Port Gigabit GPON Terminal User Guide 4.4.3 Factory Defaults Choose menu “Management”  “Factory Defaults” and then you can restore the configurations of the Terminal to its factory defaults on the following screen. Figure 4-7 Also erase current PON settings: Check this box, the current PON settings will be deleted ...

  • Page 25: Appendix A: Specifications

    TX-6610 1-Port Gigabit GPON Terminal User Guide Appendix A: Specifications General 802.3, 802.3u, 802.3ab, 802.1p, 802.1q, ITU-T G.984.1, G.984.2, Standards and Protocols G.984.3, G.984.4 Safety & Emission FCC, CE One 10/100/1000M Auto-Negotiation RJ45 port（Auto MDI/MDIX) Ports One SC/APC (GPON) port...

  • Page 26: Appendix B: Troubleshooting

    TX-6610 1-Port Gigabit GPON Terminal User Guide Appendix B: Troubleshooting T1. How to establish a dial-up connection to connect to the Internet? Run the dialing software such as WinPoet or EnterNet to do the virtual dialing as the following described.
  • Page 27 TX-6610 1-Port Gigabit GPON Terminal User Guide 4) Click Broadband (PPPoE). 5) Enter the User name and Password given by your ISP, and type a Connection name to identify your connection, and then click Connect. T2. How do I restore my Terminal to its factory default settings? Once the Terminal is reset, the current settings will be lost and you will need to reconfigure it.
  • Page 28 TX-6610 1-Port Gigabit GPON Terminal User Guide T5. What can I do if I cannot access the web management page? Make sure that the computer is properly connected to the Terminal via the Ethernet cable. Make sure that the computer connected to the Terminal is set to obtain an IP address automatically.
