- Page 1 Via Condotti Bardini, 1 - 31058 SUSEGANA (TV) - ITALY ENGLISH ESPRESSO COFFEE MACHINE USE AND MAINTENANCE MANUAL Instructions for the user LB 4100...
- Page 2 MACHINES A CAFE, déclare que le produit being the manufacturer of COFFEE MACHINES, hereby declares that the product erklärt als Hersteller von KAFFEEMASCHINEN, daß das Gerät WEGA s.r.l. Via Condotti Bardini, 1 verklaart als fabrikant van KOFFIEZETAPPARATEN, dat het product 31058 SUSEGANA (TV) - ITALY como fabricante de MÁQUINAS DE CAFÉ, declara que a máquina...
-
Page 3: Table Of Contents
Table of contents REAR CAREFULLY....................page 20 HOW TO USE THIS MANUAL ................page 20 GENERAL WARNINGS ..................page 20 SYMBOLS ...................... page 22 PRESENTATION ....................page 22 TECHNICAL DATA....................page 22 GENERAL DESCRIPTION ................page 23 PUSH-BUTTON PANEL ................page 23 PREPARATION OF THE MACHINE............. -
Page 4: Rear Carefully
espresso coffee machine - user instructions READ CAREFULLY all parts of this manual before using the product. The espresso coffee machine that you have purchased has been designed and manufactured with innovative methods and technology which ensure long lasting quality and reliability. This manual will guide you in discovering the advantages of selecting this product. - Page 5 espresso coffee machine - user instructions • The espresso coffee machine is intended for the preparation of hot beverages such as coffee, tea or warm milk. This appliance is to be used only for its intended purpose. Any other use is considered improper and therefore dangerous. The manufacturer cannot be responsible for any damage caused by incorrect and unreasonable use.
-
Page 6: Symbols
espresso coffee machine - user instructions SYMBOLS This symbol warns you that there are important instructions that must be strictly followed in order to avoid severe injury and/or damage to the machine! This symbol indicates the operations that should be carried out more thoroughly for better performance of the machine. -
Page 7: General Description

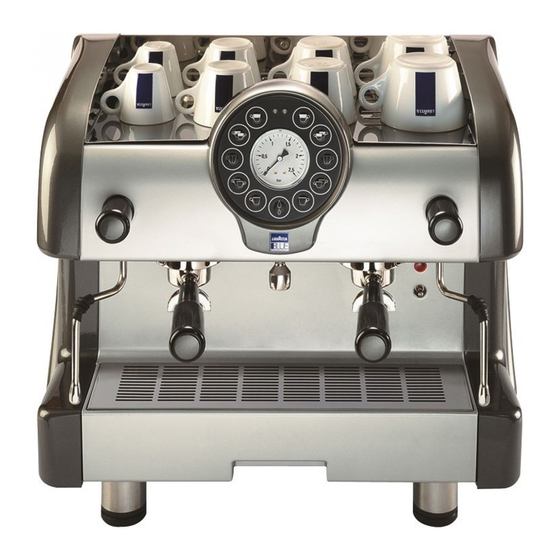

espresso coffee machine - user instructions GENERAL DESCRIPTION Internal water tank door Cappuccino maker knob Cup heater surface Boiler pressure gauge Push-button panel Steam knob Anti-burn rubber Mains indicator light Main switch Steam nozzle 2-Cup spout filter holder Hot water nozzle Tap breather right Tap breather left Cup support grille... -
Page 8: Preparation Of The Machine
espresso coffee machine - user instructions PREPARATION OF THE MACHINE The preparation of the machine and its installation must be carried out by qualified personnel. Use of the machine without all the installation operations having been carried out by technical personnel could damage it seriously. -
Page 9: Turning On The Machine
espresso coffee machine - user instructions TURNING ON THE MACHINE • Place the switch on “1”; • the automatic filling of water in the boiler and the delivery group heating are activated when the machine is switched on; • when the filling of water in the boiler has finished the services boiler heating phase starts, indicated by the sequential flashing of the LEDs of the buttons 2-3- 4-7-8-9-hot... -
Page 10: Use Of The Machine
espresso coffee machine - user instructions USE OF THE MACHINE POD PREPARATION 2-Cup • Insert the pod into the filter holder, as shown in the figure; filter holder • attach the filter holder to the group and tighten firmly. Use “LAVAZZA BLUE” pods only. 1-Cup filter holder Be careful to insert the pod into the correct fi... -
Page 11: Preparation Of Hot Beverages
espresso coffee machine - user instructions PREPARATION OF HOT BEVERAGES DISPENSING HOT WATER To dispense hot water, place the cup under the hot water dispensing nozzle and press the button (1) Wait for the water dispensing to finish. To stop the dispensing in advance, press the button (1) again. -
Page 12: Programming
espresso coffee machine - user instructions PROGRAMMING Programming must be performed by technical staff. PROGRAMMING COFFEE DOSES LEFT GROUP • hold the continuous button (1) down for at least 5 seconds (the LEDs of the selections the left group to be programmed will come on); •... -
Page 13: Loading Default Data
espresso coffee machine - user instructions PROGRAMMING HOT WATER DOSES • hold the button (1) down the right side of the push-button for at least 5 seconds (the LEDs of the selections to be programmed will come on); • place the cup under the hot water dispensing nozzle; •... -
Page 14: Cleaning
espresso coffee machine - user instructions CLEANING For perfect cleaning and efficiency of the appliance, several simple cleaning operations are necessary on the functional parts and accessories as well as the body panels. The indications given here are applicable for normal use of the coffee machine. If the machine is used intensively, then cleaning should be performed more frequently. -
Page 15: List Of Hazards
espresso coffee machine - user instructions 10. LIST OF HAZARDS This chapter describes possible hazards for the user if the specific safety standards (described in this manual) are not adhered The appliance must be connected to an efficient grounding system If this is not done, the appliance can be a source of dangerous electrical discharges as it is no longer able to discharge electricity to earth. -
Page 16: Check And Maintenance
espresso coffee machine - user instructions 11. CHECKS and MAINTENANCE Maintenance must be carried out in order to ensure perfect safety and efficiency of the machine over time. In particular, it is advisable to ask Technical Service to carry out an overall check of the machine at least once a year. Periodically check the boiler pressure with a pressure gauge, which should indicate about 0.8-1.2 bar. -
Page 17: Machine Indications
espresso coffee machine - user instructions 13. MACHINE INDICATIONS The machine LEDs indicate the state of the machine and the presence of any anomalies. Situation GREEN LED RED LED Sequence MACHINE READY FOR USE Steady-on TECHNICAL PROBLEM Steady-on Steady-on NO WATER IN TANK Flashing Flashing Simultaneous flashing... -
Page 18: Malfunctions And Corresponding Solutions
espresso coffee machine - user instructions 14. MALFUNCTIONS and CORRESPONDING SOLUTIONS Indication Cause Solution 1) The machine switch is in the "0" position. 1) Turn the machine switch to the "1" position. MACHINE LACKING POWER 2) The mains power supply switch is in the OFF position. 2) Place the mains switch in the ON position. - Page 19 espresso coffee machine - user instructions Indication Cause Solution THE GREEN AND RED Technical problem. Contact Technical Service. LEDS ARE STEADY-ON THE GREEN AND RED There is no water in the internal tank. Fill the tank with water. LEDS ARE FLASHING THE GREEN LED IS OFF THE RED LED IS The internal tank is not in place.
